Description

Price

1

FRAME

2HG-21110-00-UJ

Unavailable

1

WASHER (8A7)

90201-08452-00

$5.60

2

TENSIONER

2HH-22178-00-00

$35.99

3

TENSIONER

30X-22178-00-00

$35.99

4

BEARING (3X3)

93300-60804-00

$12.49

5

BUSH

4V4-22184-00-00

$4.47

6

COLLAR(1NL)

90387-086N4-00

$9.49

7

BOLT, FLANGE

95817-08012-00

$5.49

8

BOLT, FLANGE (3JPE)

95024-08045-00

$8.49

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

11

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

12

BRACKET, ENGINE 2

1LX-21419-01-00

Unavailable

13

BOLT, FLANGE

95817-08040-00

$7.49

14

BOLT, FLANGE(8BT)

95817-08095-00

$4.24

15

BOLT,FLANGE

95817-08185-00

Unavailable

16

NUT, SELF-LOCKING

90185-08169-00

$8.49

17

BRACKET, REAR UPR 1

1LX-21425-00-00

Unavailable

18

BOLT, FLANGE

95817-08055-00

Unavailable

19

WASHER 6464313202

90202-08022-00

Unavailable

20

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

$8.49

22

BAND, SWITCH CORD

437-83936-11-00

Unavailable

23

TOOL KIT (1LU-28100-00)

1LX-28100-00-00

Unavailable

24

GAUGE, AIR

2X4-2811A-01-00

Unavailable

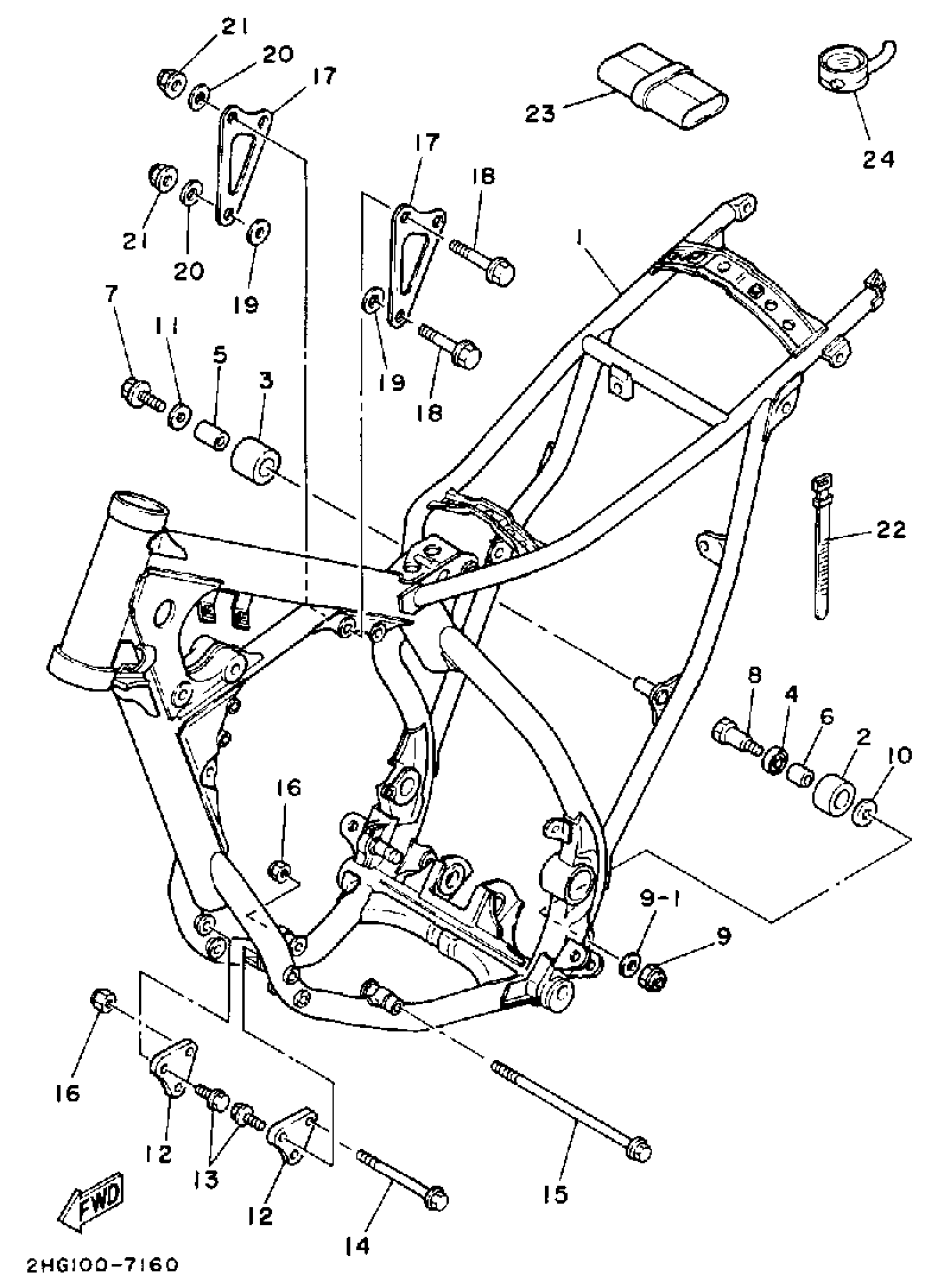

Yamaha YZ125T (YZ125T) 1987 FRAME Diagram

FRAME

WASHER (8A7)

TENSIONER

TENSIONER

BEARING (3X3)

BUSH

COLLAR(1NL)

BOLT, FLANGE

BOLT, FLANGE (3JPE)

NUT, SELF-LOCKING

WASHER, PLATE(3XP)

WASHER, PLATE(8AT)

BRACKET, ENGINE 2

BOLT, FLANGE

BOLT, FLANGE(8BT)

BOLT,FLANGE

NUT, SELF-LOCKING

BRACKET, REAR UPR 1

BOLT, FLANGE

WASHER 6464313202

WASHER, PLATE (5J0)

NUT, SELF-LOCKING

BAND, SWITCH CORD

TOOL KIT (1LU-28100-00)

GAUGE, AIR
