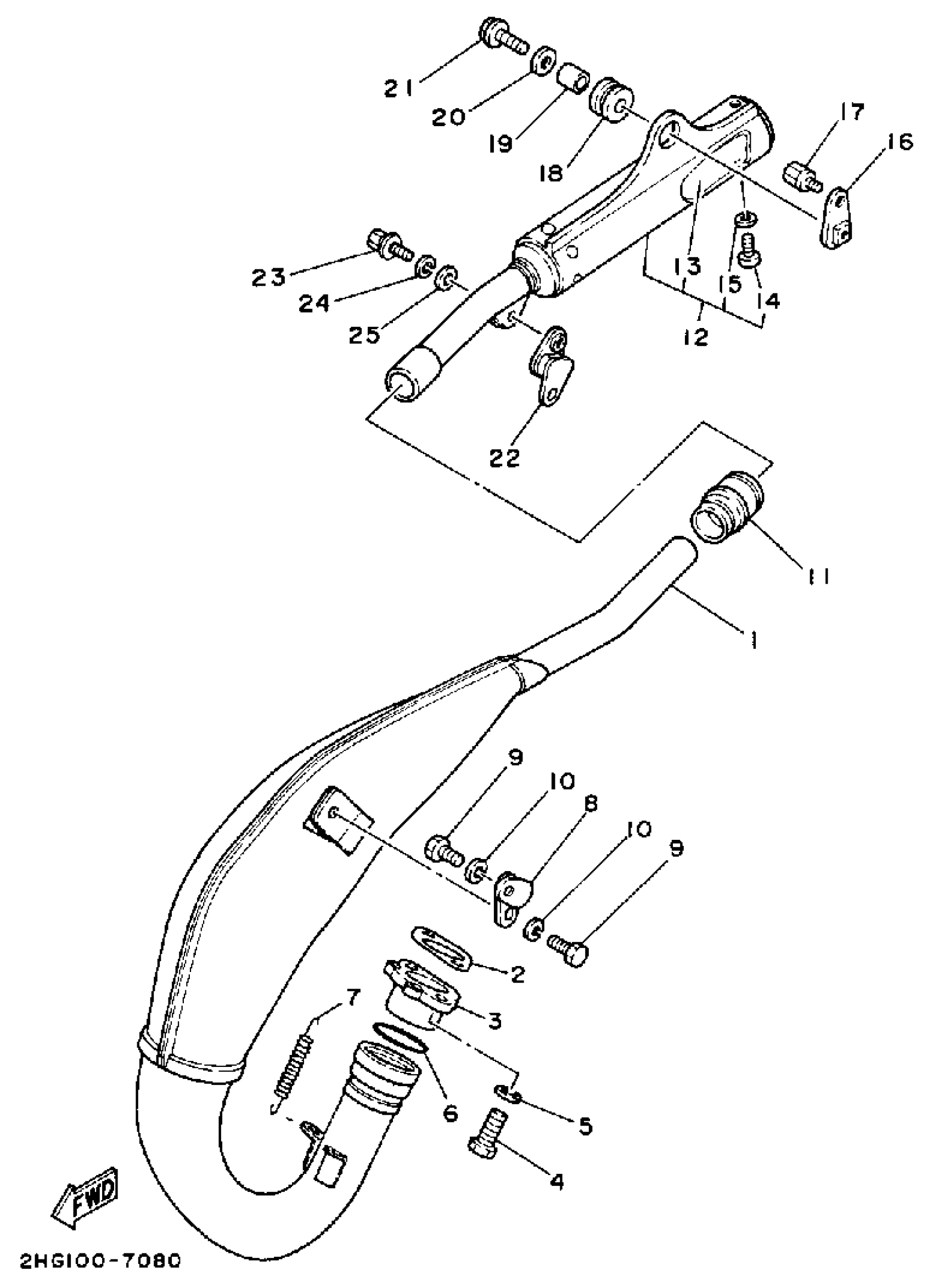

Yamaha YZ125T (YZ125T) 1987 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

2HG-14610-01-00

Unavailable

2

GASKET,EXST PIPE

1LX-14613-01-00

Unavailable

3

FLANGE, EXST PIPE

2HG-14614-00-00

Unavailable

4

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

O-RING(1LX)

93210-42728-00

$16.99

7

SPRING, TENSION (1W4)

90507-20030-00

$14.99

8

STAY, MUFFLER 1

24X-14771-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

JOINT, EXHAUST

3M7-14615-00-00

Unavailable

12

SILENCER, EXHAUST

2HG-14753-00-00

Unavailable

13

. FIBER

2HG-1469A-00-00

Unavailable

14

SCREW PAN HEAD

98580-06010-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BRACKET

1LX-14744-00-00

Unavailable

17

BOLT

90109-08573-00

Unavailable

18

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

19

COLLAR

90387-081A3-00

Unavailable

20

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

STAY, MUFFLER 1

565-14771-01-00

Unavailable

23

BOLT (3R4)

90109-06551-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable
