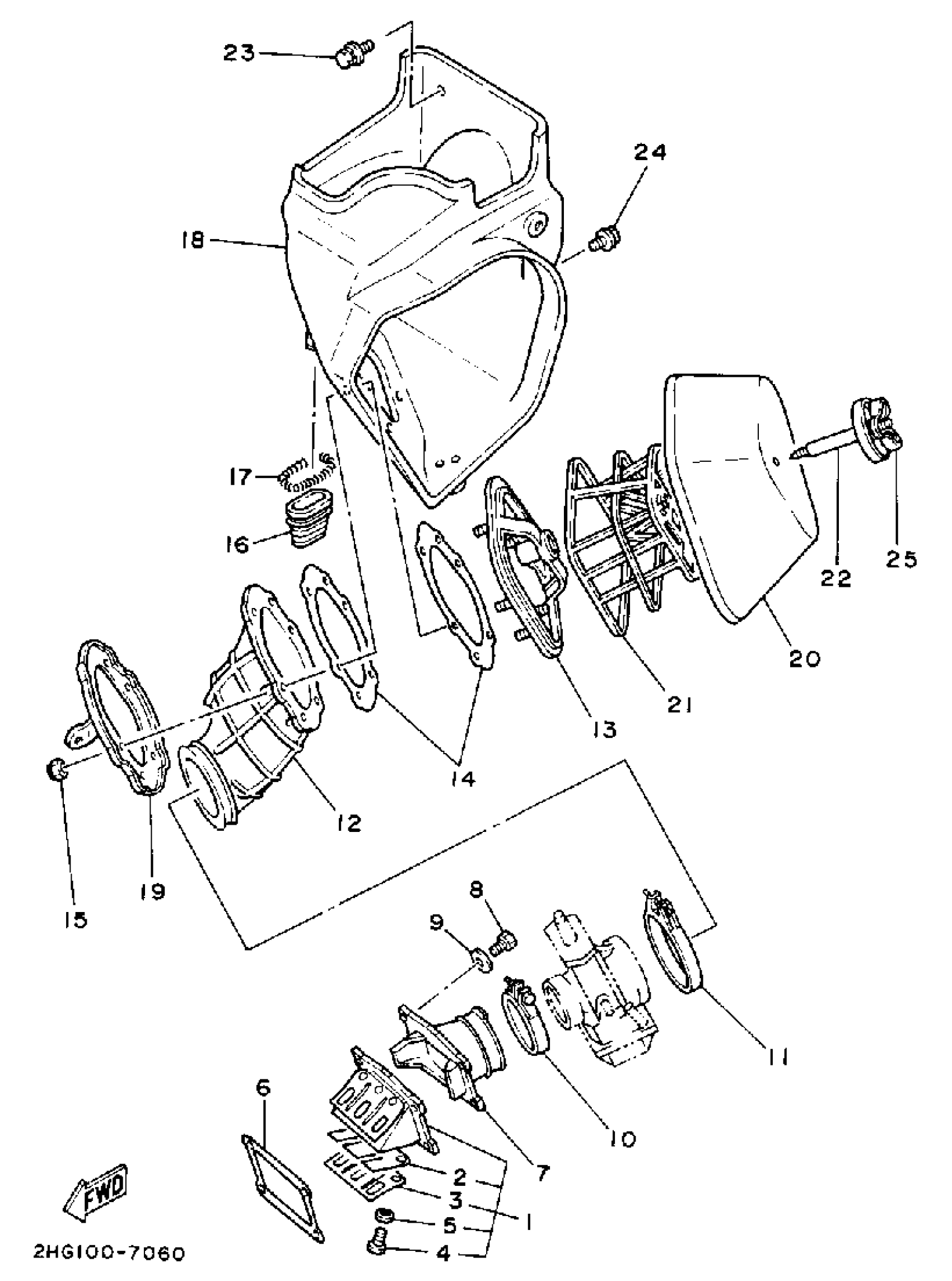

Yamaha YZ125T (YZ125T) 1987 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

1LX-13610-01-00

Unavailable

2

REED, VALVE

55Y-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

55Y-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

4TP-13621-00-00

$7.99

7

JOINT, CARB.

2HG-13565-00-00

Unavailable

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

CLAMP, HOSE

90460-51109-00

Unavailable

11

CLAMP, HOSE

90460-68231-00

Unavailable

12

JOINT, AIR CLNR 1

2HG-14453-00-00

Unavailable

13

HOLDER, GUIDE

56A-14459-00-00

Unavailable

14

SEAL

39X-14462-00-00

Unavailable

15

NUT, U

95617-05100-00

$9.49

16

SEAL

39K-14457-00-00

Unavailable

17

SPRING, COMPRESSION

90504-03033-00

Unavailable

18

AIR CLEANER CASE COMP

1LU-W1441-00-00

Unavailable

19

PLATE

1LU-14477-00-00

Unavailable

20

ELEMENT, AIR CLNR

2HH-14451-00-00

Unavailable

21

GUIDE, ELEMENT

2HH-14458-00-00

Unavailable

22

PLATE, ELEMENT FTNG

2HH-14468-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable

24

BOLT, WITH WASHER

90119-06152-00

Unavailable

25

BOLT, WING

90122-06025-00

Unavailable
