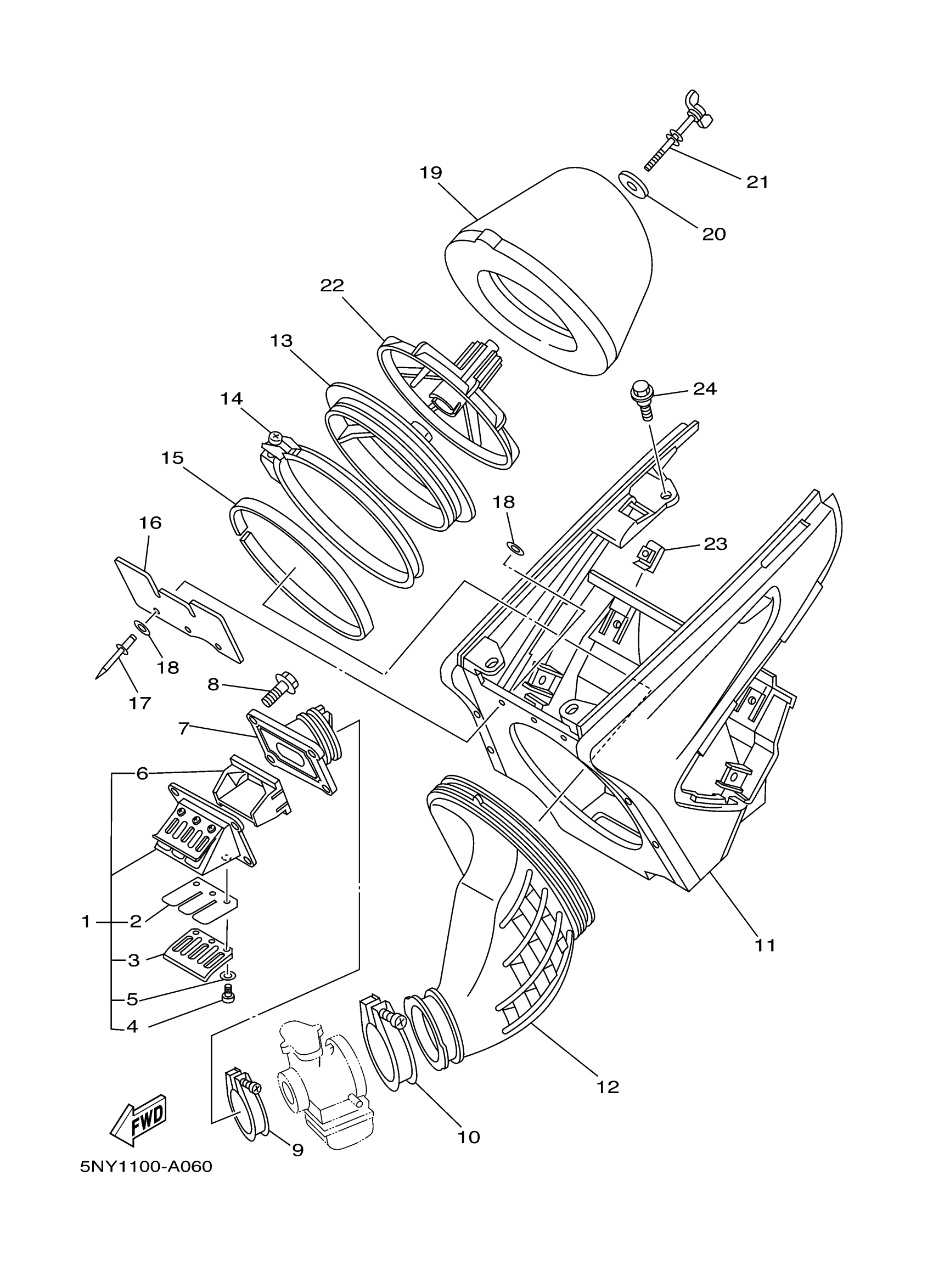

Yamaha YZ125R (YZ125) 5UN1 2003 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

5UN-13610-00-00

Unavailable

2

REED, VALVE

5UN-13613-00-00

$108.03

3

STOPPER, REED VALVE

5MV-13616-10-00

$6.86

4

SCREW, PAN

98507-03006-00

$6.58

5

WASHER, SPRING

92990-03100-00

$5.75

6

SPACER, REED VALVE

5MV-13625-00-00

Unavailable

7

JOINT, CARBURETOR

5UN-13565-00-00

$96.32

8

. BOLT, FLANGE

95027-06020-00

$0.93

9

HOSE CLAMP ASSY

90450-54004-00

$11.02

10

HOSE CLAMP ASSY

90450-70002-00

$16.91

11

AIR CLEANER CASE ASSY

5NY-14401-01-00

$141.62

12

JOINT, AIR CLEANER 1

5NX-14453-01-00

$65.40

13

HOLDER, GUIDE

5NY-14459-00-00

$30.11

14

BAND

5NY-14455-20-00

$32.65

15

SPACER

5NY-14442-00-00

$19.06

16

COVER 1

5NY-14417-01-00

Unavailable

17

RIVET (813)

90267-32070-00

Unavailable

18

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

19

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

20

WASHER (4H7)

90209-06096-00

Unavailable

21

BOLT, WING

90122-06005-00

Unavailable

22

GUIDE

3JD-14458-01-00

Unavailable

23

NUT, SPRING (26H)

90183-06023-00

Unavailable

24

BOLT(4EW)

90109-067F4-00

Unavailable
