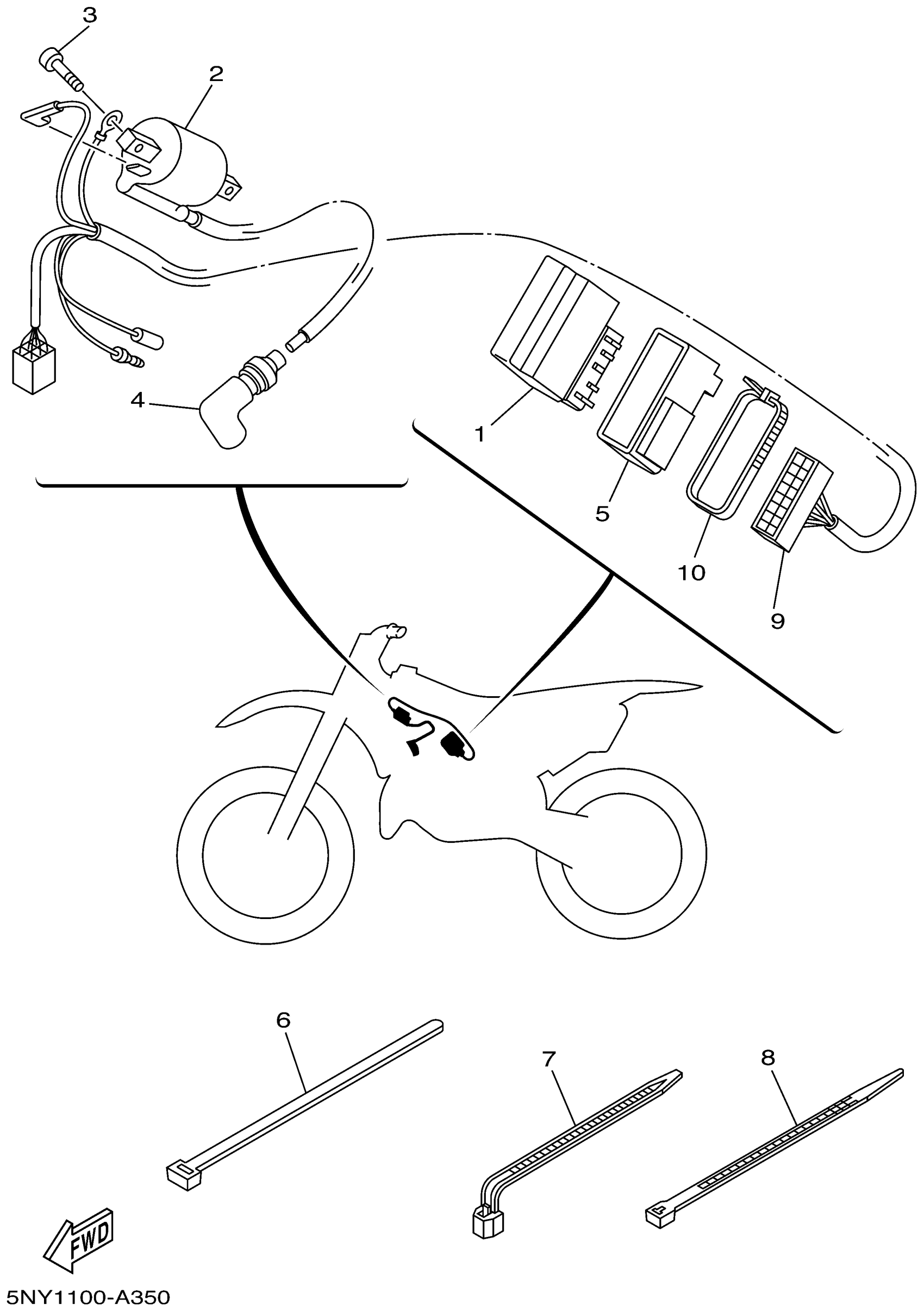

Yamaha YZ125P (YZ125) 5NY1 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY.

5NY-85540-01-00

Unavailable

2

IGNITION COIL ASSY

4SS-82310-02-00

Unavailable

3

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

4

PLUG CAP ASSY

8DG-82370-00-00

$41.54

5

BAND

5NY-85546-00-00

Unavailable

6

CLAMP

90464-76001-00

$6.29

7

CLAMP(4FM)

90464-15195-00

$2.57

8

CLAMP(MF1)

90464-15152-00

$4.07

9

WIRE, SUB LEAD

5NY-82509-00-00

Unavailable

10

CLAMP, HOSE(3KJ)

90460-15126-00

$5.55
