1985 Yamaha YZ125N (YZ125N) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1985 Yamaha YZ125N (YZ125N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

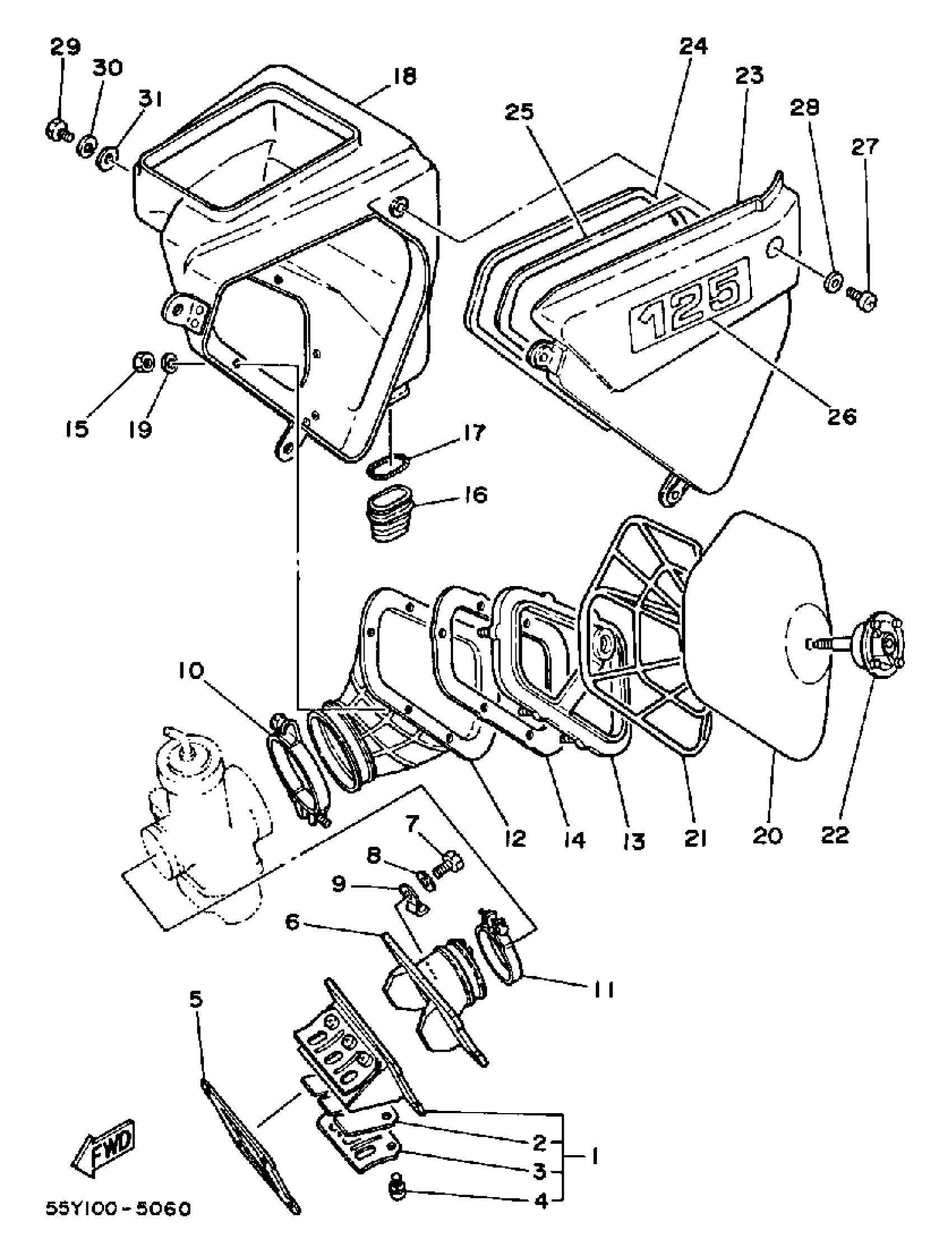

1985 Yamaha YZ125N (YZ125N) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

1LX-13610-01-00

1
Out of stock

2

REED, VALVE

55Y-13613-00-00

—
Out of stock

3

. STOPPER, REED VALVE

55Y-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET8VALVE SEAT

39W-13621-01-00

1
Out of stock

6

JOINT, CARBURETOR

55Y-13565-00-00

1
Out of stock

7

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

8

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

9

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

10

CLAMP, HOSE

90460-51109-00

1
Out of stock

11

CLAMP, HOSE

90460-68231-00

1
Out of stock

12

JOINT, AIR CLNR 1

(55Y-14453-01-00)

1
Out of stock

13

HOLDER, GUIDE

55Y-14459-00-00

1
Out of stock

14

SEAL

39W-14462-00-00

1
Out of stock

15

NUT, U

95617-05100-00

1

$6.68

In stock

16

SEAL

39K-14457-00-00

1
Out of stock

17

SPRING, COMPRESSION

90504-03033-00

1
Out of stock

18

AIR CLEANER CASE

39W-W1441-01-00

1
Out of stock

19

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

20

ELEMENT, AIR CLEANER

39W-14451-00-00

1
Out of stock

21

GUIDE, ELEMENT

39W-14458-00-00

1
Out of stock

22

PLATE, ELEMENT FTNG

55Y-14468-00-00

1
Out of stock

23

CAP, CLEANER CASE 1

43M-14412-00-00

1
Out of stock

24

SEAL

39W-14452-00-00

1
Out of stock

25

SEAL

43G-14452-00-00

1
Out of stock

26

EMBLEM

39W-21737-10-00

1
Out of stock

27

SCREW, PAN

98517-06012-00

—

$3.14

In stock

28

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

29

BOLT (661)

97013-06012-00

—

$4.71

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock
