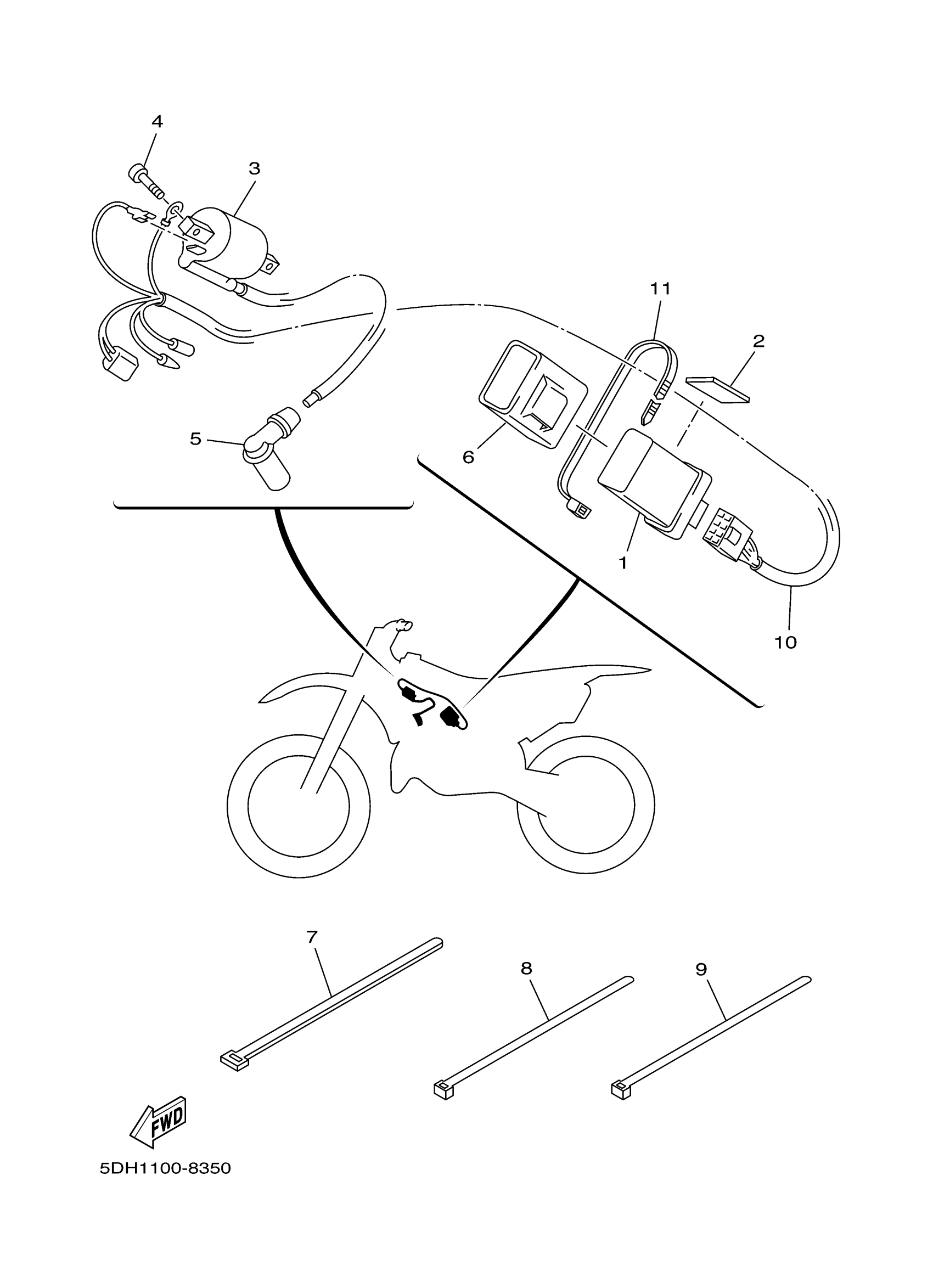

Yamaha YZ125M1 (YZ125) 5HD1 2000 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

5HD-85540-00-00

Unavailable

2

DAMPER

22F-2139X-00-00

$5.96

3

IGNITION COIL ASSY

4SS-82310-02-00

Unavailable

4

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

5

PLUG CAP ASSY

8DG-82370-00-00

$41.54

6

BAND

4SS-85546-01-00

Unavailable

7

CLAMP

90464-76001-00

$6.29

8

CLAMP(4FM)

90464-15195-00

$2.57

9

CLAMP(MF1)

90464-15152-00

$4.07

10

WIRE, SUB LEAD

5DH-82509-00-00

Unavailable

11

CLAMP, HOSE(3KJ)

90460-15126-00

$5.55
