2017 Yamaha YZ125 (YZ125H2) Intake Diagram

← All diagrams

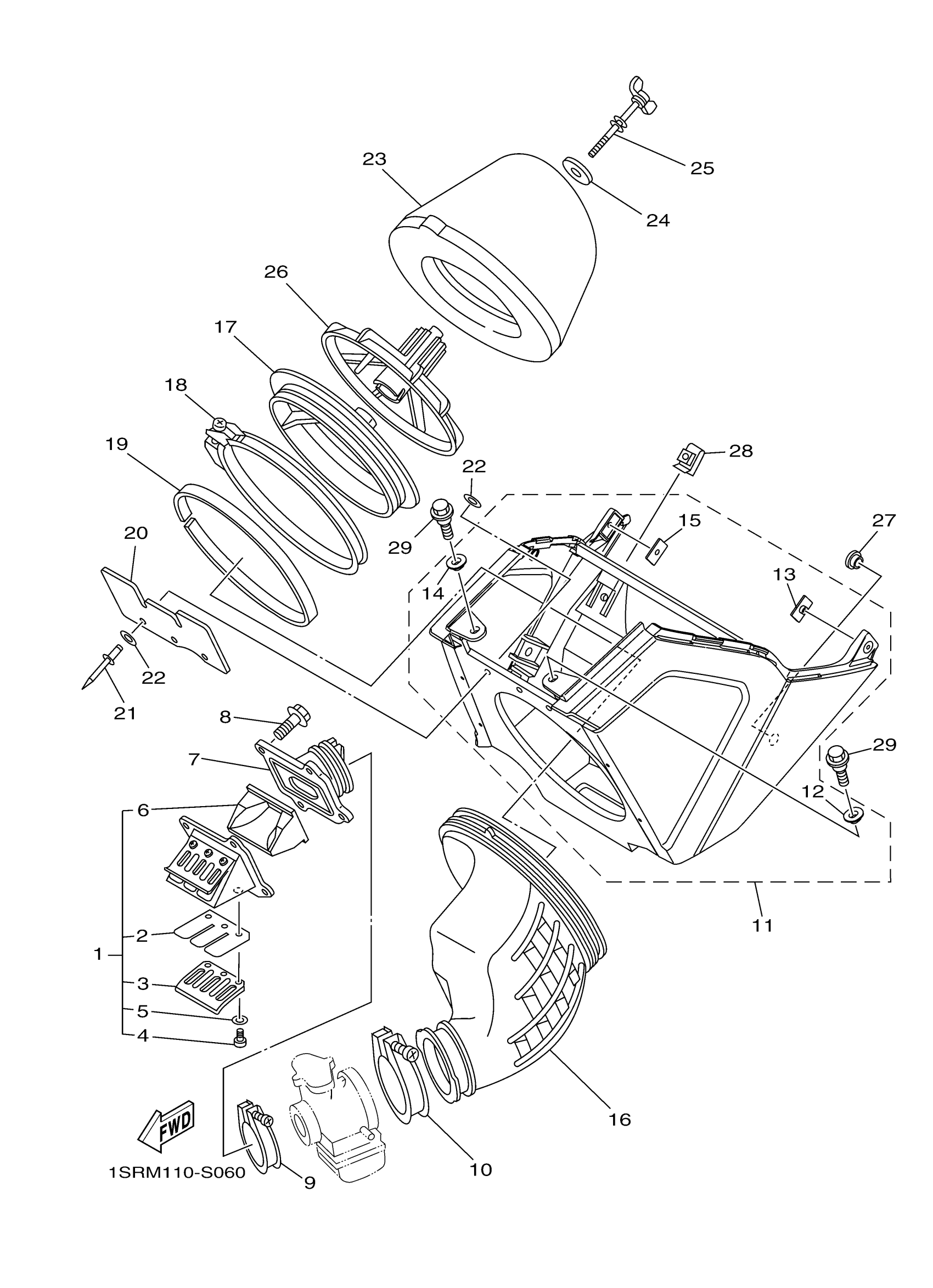

Find the part on the Intake diagram for your 2017 Yamaha YZ125 (YZ125H2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha YZ125 (YZ125H2) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

1C3-13610-20-00

1

$313.80

In stock

2

REED, VALVE

5UN-13613-00-00

1

$109.69

In stock

3

STOPPER, REED VALVE

5MV-13616-10-00

1

$6.97

In stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—

$6.91

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SPACER, REED VALVE

1C3-13625-10-00

1

$43.45

In stock

7

JOINT, CARBURETOR

1C3-13565-00-00

1

$61.77

In stock

8

BOLT, FLANGE

95022-06020-00

1

$3.32

In stock

9

HOSE CLAMP ASSY

90450-54007-00

1

$11.89

In stock

10

HOSE CLAMP ASSY

90450-70002-00

1

$18.12

In stock

11

AIR CLEANER CASE A

1SS-14401-00-00

1

$192.62

In stock

12

COLLAR

17D-14449-00-00

1

$6.72

In stock

13

NUT, REAR FENDER

5XE-21635-10-00

1

$12.34

In stock

14

COLLAR

17D-14449-00-00

1

$6.72

In stock

15

NUT, REAR FENDER

5XE-21635-10-00

1

$12.34

In stock

16

JOINT, AIR CLEANER 1

1C3-14453-11-00

—

$63.18

In stock

17

HOLDER, GUIDE

5NY-14459-00-00

—

$31.37

In stock

18

BAND

5NY-14455-20-00

—

$34.03

In stock

19

SPACER

5NY-14442-00-00

—

$20.42

In stock

20

COVER 1

5NY-14417-01-00

—

$13.77

In stock

21

RIVET (813)

90267-32070-00

—

$2.25

In stock

22

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

23

ELEMENT, AIR CLEANER

4XM-14451-01-00

—

$36.43

In stock

24

WASHER (4H7)

90209-06096-00

—
Out of stock

25

BOLT, WING

90122-06005-00

—

$10.05

In stock

26

GUIDE

3JD-14458-01-00

—

$61.74

In stock

27

GROMMET

90480-10M28-00

1

$3.54

In stock

28

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

29

BOLT, FLANGE

90105-06170-00

—

$4.23

In stock
