1981 Yamaha YZ125H (YZ125H) Frame - Tool Diagram

← All diagrams

Find the part on the Frame - Tool diagram for your 1981 Yamaha YZ125H (YZ125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

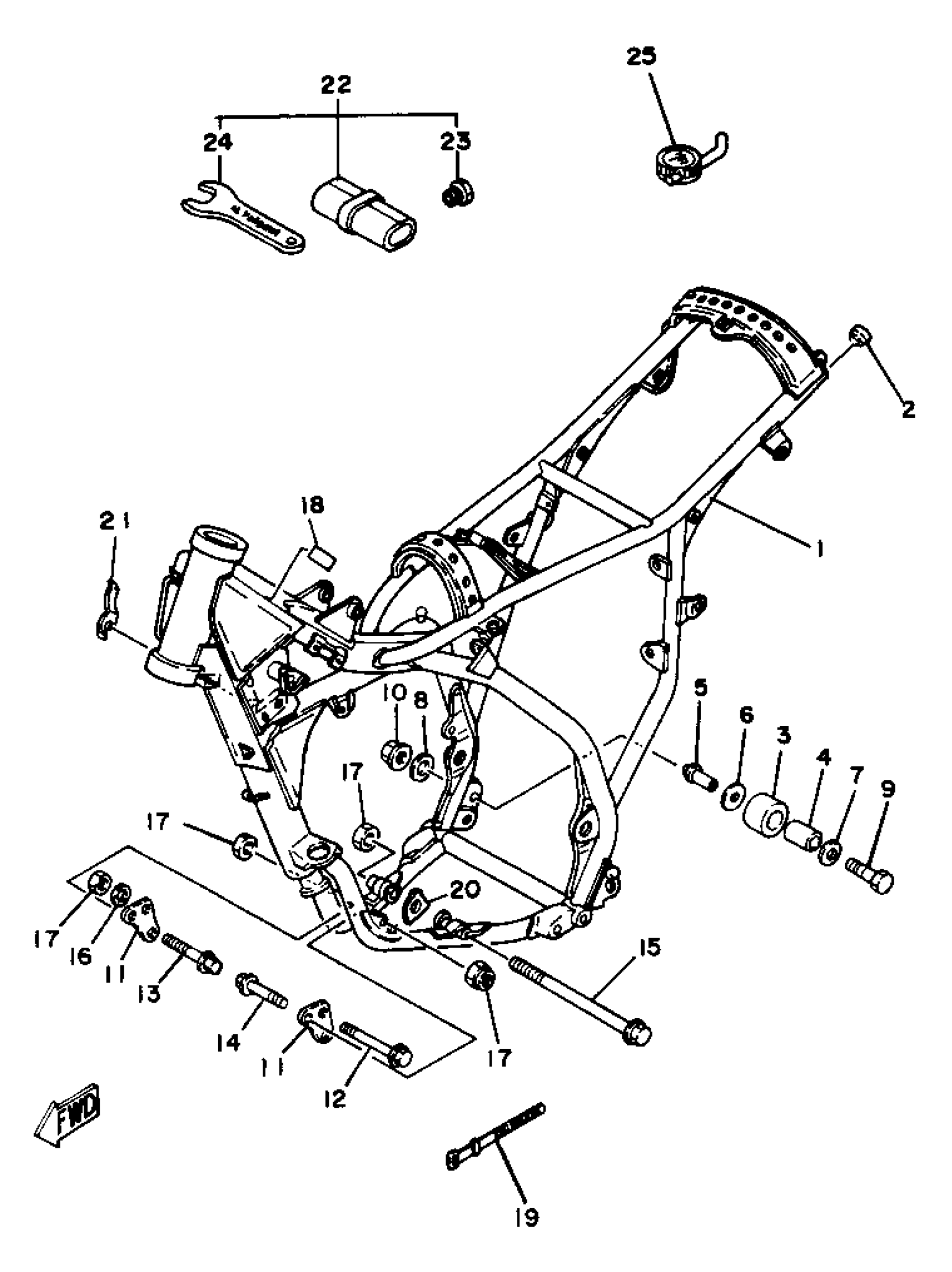

1981 Yamaha YZ125H (YZ125H) Frame - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(4V2-21110-00-33)

1
Out of stock

2

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

3

TENSIONER

30X-22178-00-00

1
Out of stock

4

BUSH

4V4-22184-00-00

1

$3.57

In stock

5

SHAFT

3R3-2148A-00-00

1
Out of stock

6

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

7

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

8

WASHER, PLATE

90201-08638-00

1
Out of stock

9

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

10

NUT, NYLON

95717-08300-00

1

$2.57

In stock

11

BRACKET, ENGINE 2

4V2-21419-00-00

1
Out of stock

12

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

13

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

14

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

15

BOLT,FLANGE

95817-08190-00

1
Out of stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

18

BRACKET, FRT UPR 1

3R4-21415-00-00

1
Out of stock

19

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

20

WASHER, CLAW

90214-09019-00

1
Out of stock

21

CLAMP

(90462-14089-00)

1
Out of stock

22

TOOL KIT

(5X5-28100-00-00)

1
Out of stock

23

PULLER, ROTOR

(2K7-85555-00-00)

1
Out of stock

24

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock

25

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
