1995 Yamaha YZ125 (YZ125G1) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha YZ125 (YZ125G1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

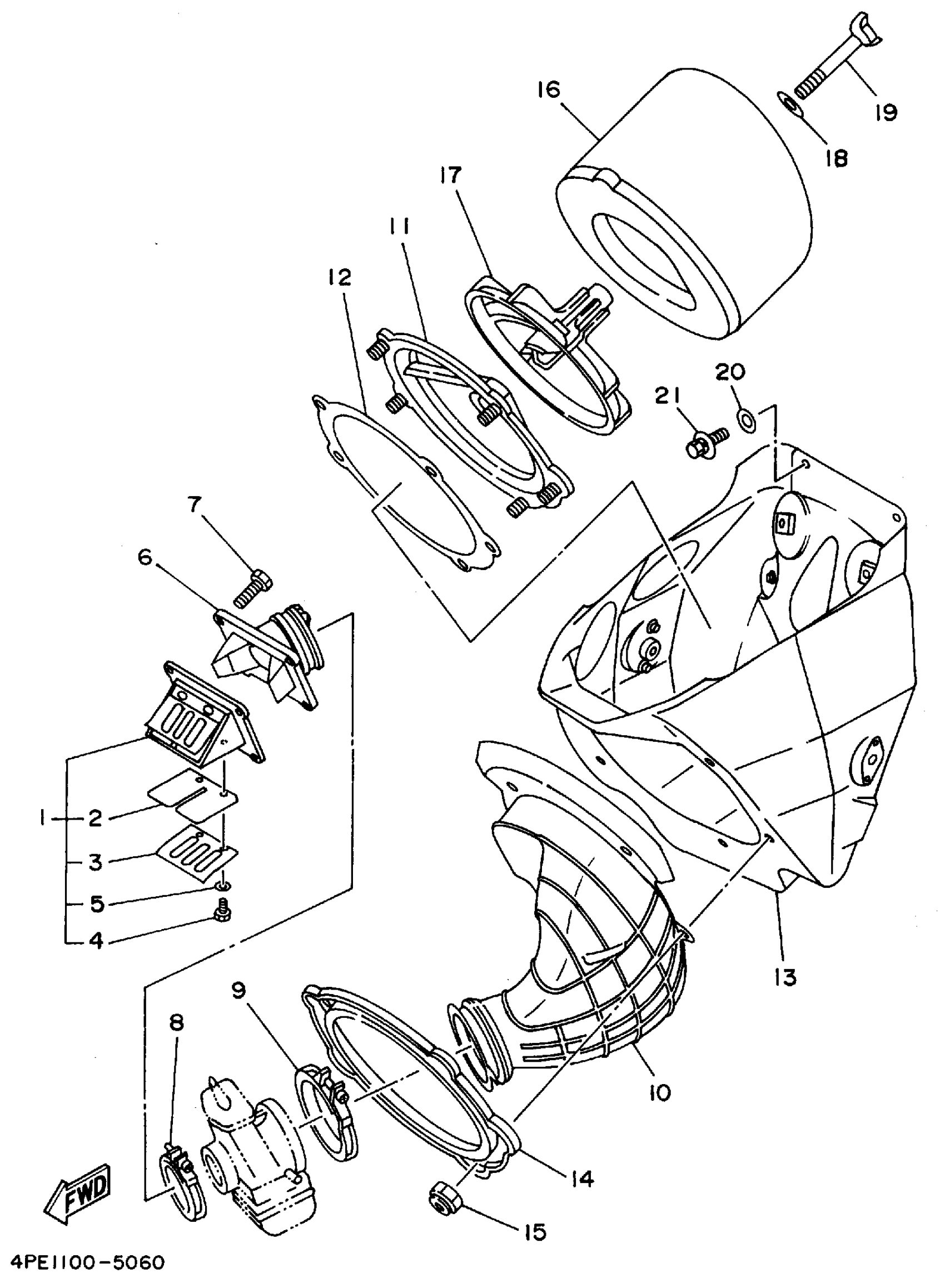

1995 Yamaha YZ125 (YZ125G1) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

4PE-13610-00-00

1
Out of stock

2

. REED, VALVE

4PE-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

4JY-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

JOINT, CARBURETOR

4PE-13565-00-00

1
Out of stock

7

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

8

HOSE CLAMP ASSY

90450-51001-00

1

$14.09

In stock

9

HOSE CLAMP ASSY

90450-70002-00

1

$18.12

In stock

10

JOINT, AIR CLEANER 1

4PE-14453-00-00

1
Out of stock

11

HOLDER,GUIDE

3JD-14459-01-00

1
Out of stock

12

SEAL

3JD-14462-00-00

1
Out of stock

13

CASE, AIR CLEANER 1

4PE-14411-00-00

1
Out of stock

14

PLATE

5MV-14477-00-00

1
Out of stock

15

NUT, U

95617-05100-00

1

$6.68

In stock

16

ELEMENT, AIR CLEANER

4PE-14451-02-00

—
Out of stock

17

GUIDE

3JD-14458-01-00

—

$61.74

In stock

18

WASHER (4H7)

90209-06096-00

—
Out of stock

19

BOLT, WING

90122-06005-00

—

$10.05

In stock

20

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

21

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock
