1995 Yamaha YZ125 (YZ125G1) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1995 Yamaha YZ125 (YZ125G1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

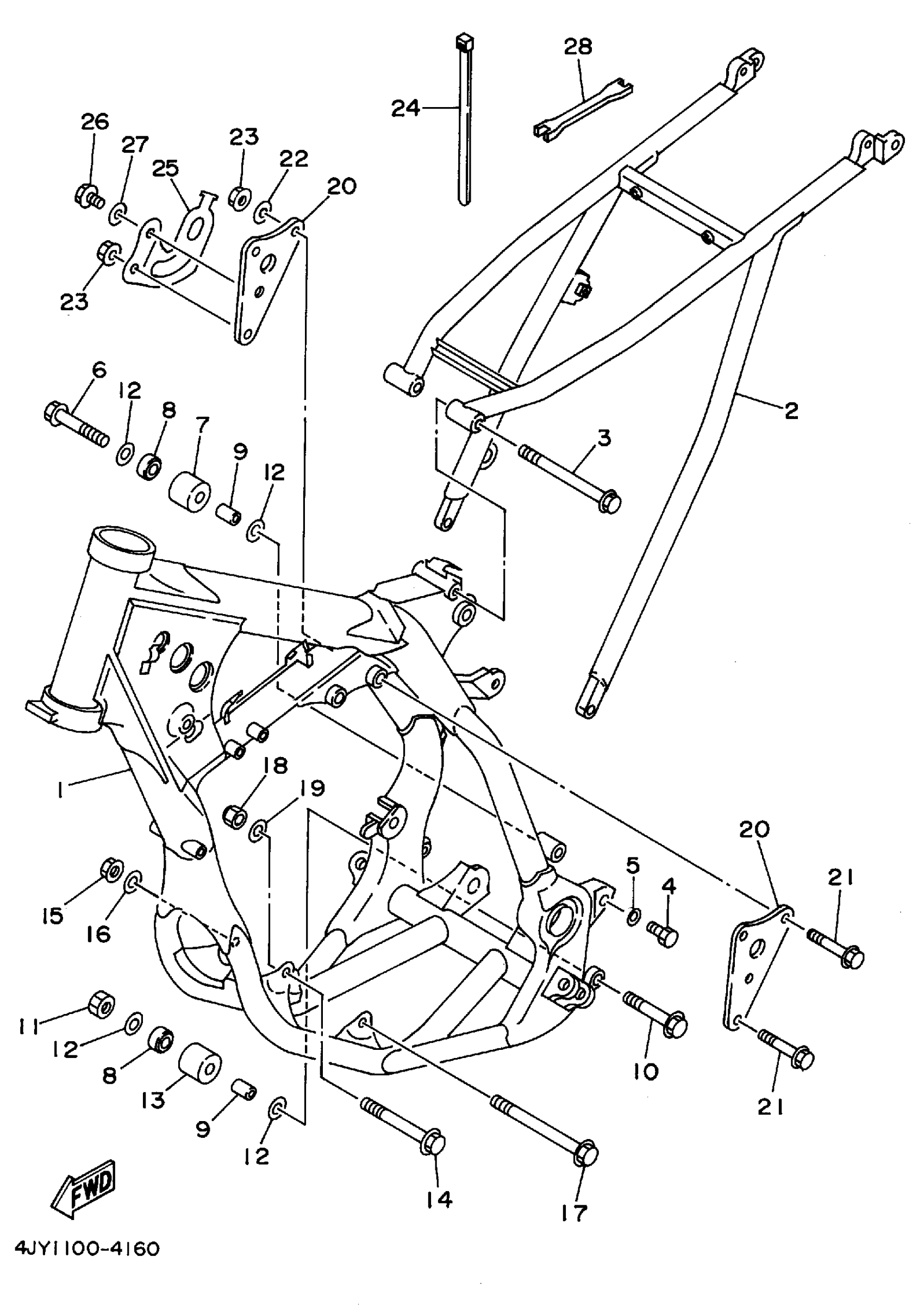

1995 Yamaha YZ125 (YZ125G1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

4PE-21101-00-P0

1
Out of stock

2

REAR FRAME COMP.

4JY-21190-00-P1

1
Out of stock

3

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

4

BOLT(4EW)

90106-08051-00

—

$19.88

In stock

5

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

6

BOLT, FLANGE(4MY)

95027-08040-00

1
Out of stock

7

TENSIONER

4EW-22178-01-00

1
Out of stock

8

BEARING (3X3)

93300-60804-00

1

$11.18

In stock

9

COLLAR(1NL)

90387-086N4-00

1

$8.31

In stock

10

BOLT, FLANGE

95027-08065-00

1
Out of stock

11

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

12

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

13

TENSIONER

3JD-22178-20-00

1

$37.74

In stock

14

BOLT, FLANGE

95817-08090-00

1

$3.54

In stock

15

NUT, U

95617-08100-00

1

$6.78

In stock

16

WASHER (853)

90201-08326-00

—

$6.17

In stock

17

BOLT, WASHER BASED(3RB)

90105-10733-00

—
Out of stock

18

NUT, U

95617-10100-00

—
Out of stock

19

WASHER, PLATE(47X)

90201-101J1-00

—

$6.17

In stock

20

BRACKET, REAR UPPER 1

4JY-21425-00-00

1
Out of stock

21

BOLT, FLANGE

95817-08050-00

—

$3.15

In stock

22

WASHER, PLATE (12X)

90201-087F0-00

—

$3.71

In stock

23

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

24

BAND

1UA-82591-00-00

—
Out of stock

25

BRACKET, C.D.I. UNIT

4JY-21274-00-00

1
Out of stock

26

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

27

WASHER, PLATE (8K2)

90201-06778-00

—

$3.69

In stock

28

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
