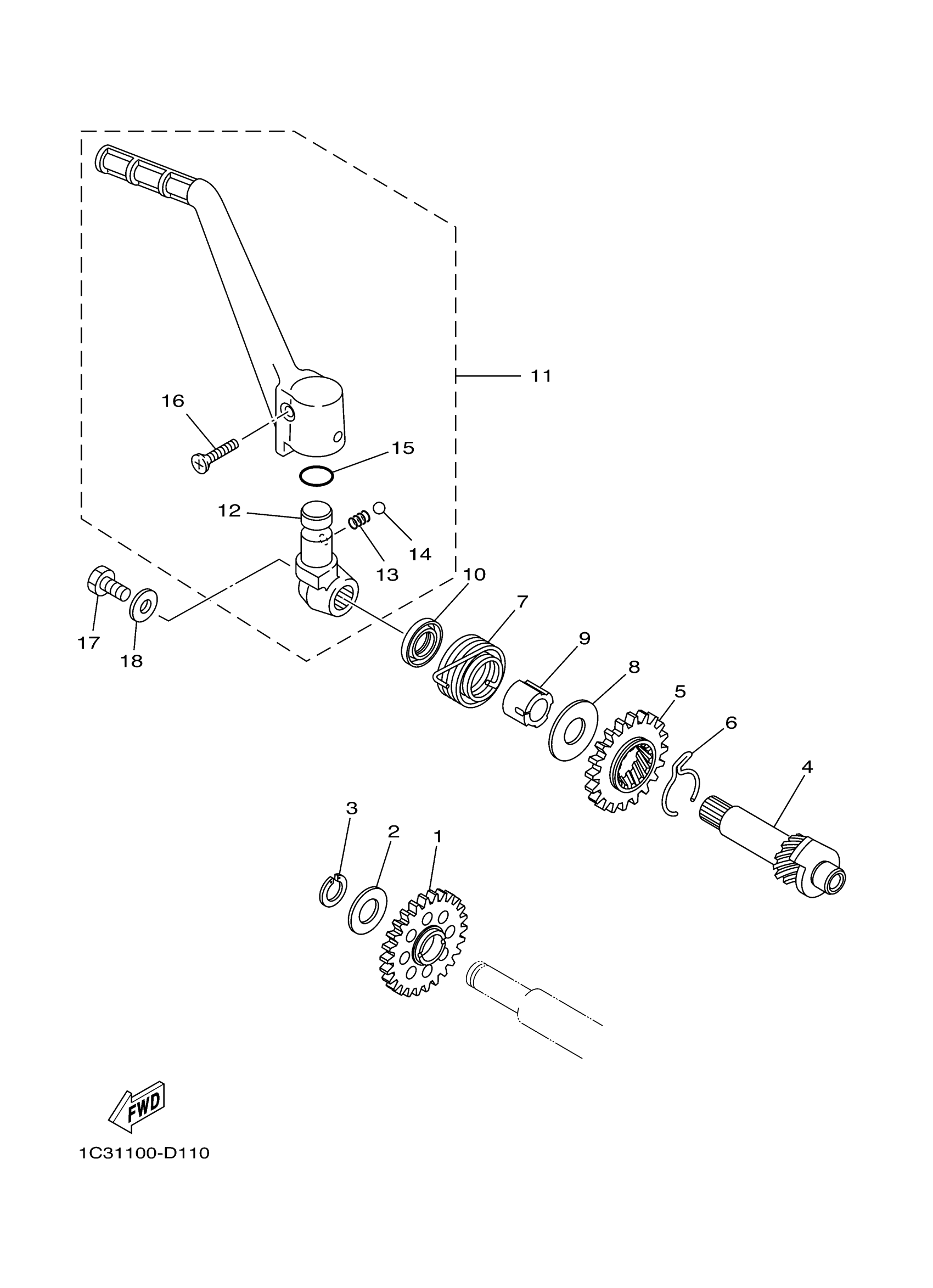

Yamaha YZ125F2 (YZ125) 1SRD 2015 STARTER Diagram

#

Description
Price

1

GEAR, KICK IDLE

1C3-15651-00-00

$85.70

2

WASHER, PLATE (15A)

90201-175F6-00

$6.57

3

CIRCLIP(1EY)

99009-17400-00

$3.65

4

KICK AXLE ASSY

1C3-15660-00-00

$79.28

5

GEAR, KICK

1C3-15641-00-00

$54.08

6

CLIP 315156870000

90468-26048-00

$4.89

7

SPRING, TORSION (4F2)

90508-26450-00

$9.22

8

WASHER, PLATE (25G)

90201-171G4-00

$7.77

9

SPACER

1C3-15666-00-00

$6.29

10

OIL SEAL (15A)

93102-17263-00

$8.31

11

KICK CRANK ASSY

4DB-15620-10-00

$202.15

12

BOSS, KICK CRANK

4DB-15621-03-00

Unavailable

13

SPRING COMPRESSION278156220000

90501-12081-00

$5.75

14

BALL (12R)

93507-32031-00

$3.65

15

O-RING (341)

93210-15171-00

$5.47

16

SCREW, COUNTERSUNK

90151-06045-00

Unavailable

17

BOLT, HEXAGON

97017-06012-00

Unavailable

18

WASHER, PLATE

90201-06020-00

Unavailable
