2015 Yamaha YZ125 (YZ125F2) Front Fork Diagram

← All diagrams

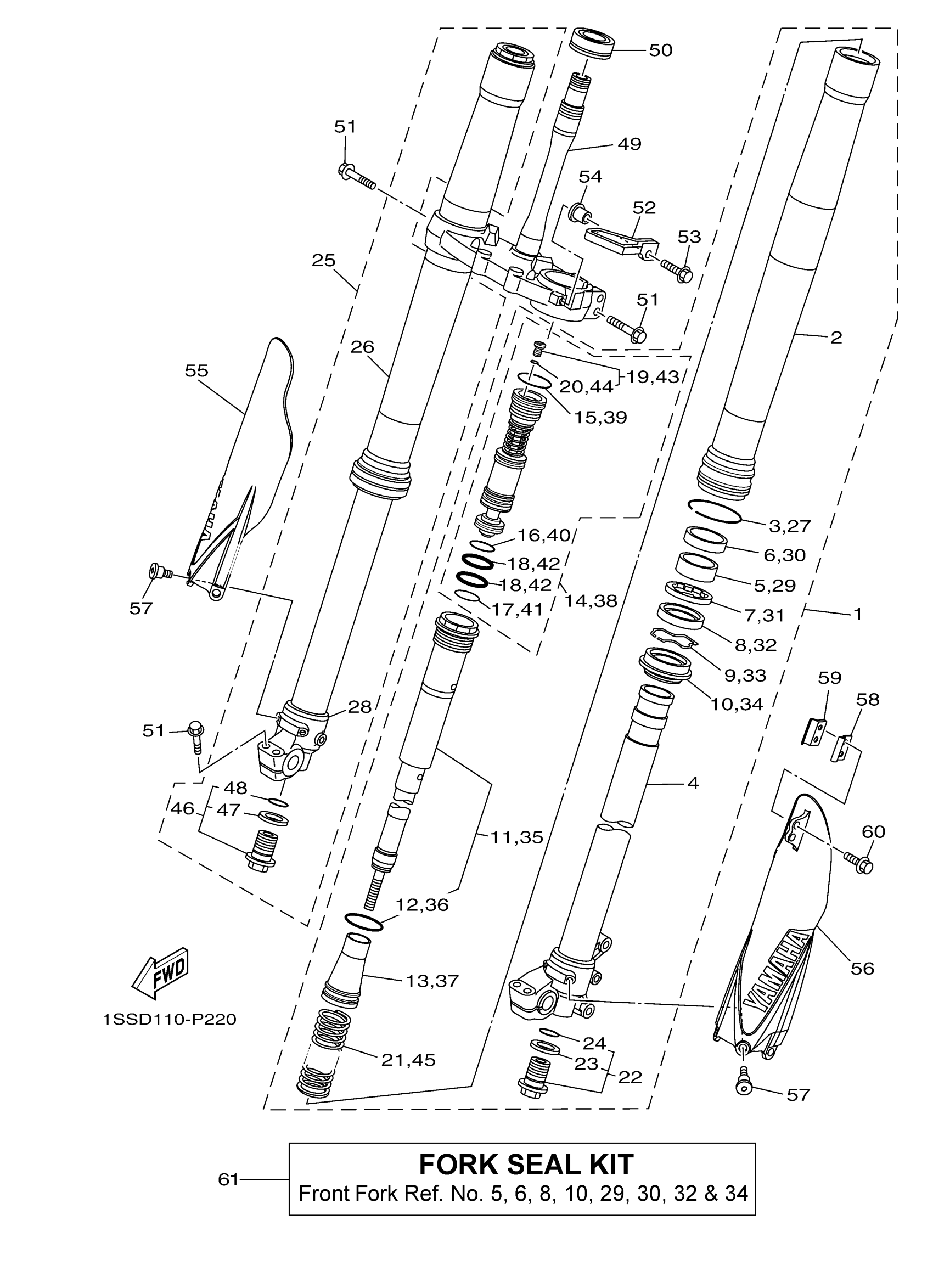

Find the part on the Front Fork diagram for your 2015 Yamaha YZ125 (YZ125F2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha YZ125 (YZ125F2) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

1SR-23102-00-00

1
Out of stock

2

TUBE, OUTER

1SS-23136-00-00

—
Out of stock

3

RING, SNAP

17D-23153-00-00

1
Out of stock

4

INNER TUBE COMP.2

1SS-23120-00-00

—
Out of stock

5

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

6

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

7

WASHER, OIL SEAL

5XC-23146-10-00

1
Out of stock

8

OIL SEAL

17D-23145-00-00

1
Out of stock

9

RING, SNAP

5XE-23153-L0-00

1
Out of stock

10

SEAL, DUST

5XE-23144-L0-00

1
Out of stock

11

CYLINDER COMP., FRONT FORK

1SR-23170-00-00

—
Out of stock

12

O-RING

1C3-23147-L1-00

1
Out of stock

13

SEAT, SPRING UPPER

17D-23142-00-00

1
Out of stock

14

VALVE COMP.

1SS-2316A-00-00

—
Out of stock

15

O-RING

1C3-23188-L1-00

1
Out of stock

16

O-RING

1C3-23188-N0-00

—
Out of stock

17

O-RING

1C3-23188-P0-00

—
Out of stock

18

O-RING

1W4-23114-L0-00

—
Out of stock

19

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

20

O-RING

1C3-23188-R1-00

—
Out of stock

21

SPRING, FRONT FORK(K=4.1N/MM)

1C3-23141-C1-00

1
Out of stock

22

BOLT, CAP

5XC-23111-01-00

—
Out of stock

23

GASKET

2HH-23158-L0-00

—
Out of stock

24

GASKET

276-23114-01-00

—
Out of stock

25

FRONT FORK ASSY (R.H)

1SR-23103-00-00

—
Out of stock

26

TUBE, OUTER

1SS-23136-00-00

—
Out of stock

27

RING, SNAP

17D-23153-00-00

1
Out of stock

28

INNER TUBE COMP.1

1SS-23110-00-00

—
Out of stock

29

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

30

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

31

WASHER, OIL SEAL

5XC-23146-10-00

1
Out of stock

32

OIL SEAL

17D-23145-00-00

1
Out of stock

33

RING, SNAP

5XE-23153-L0-00

1
Out of stock

34

SEAL, DUST

5XE-23144-L0-00

1
Out of stock

35

CYLINDER COMP., FRONT FORK

1SR-23170-00-00

—
Out of stock

36

O-RING

1C3-23147-L1-00

1
Out of stock

37

SEAT, SPRING UPPER

17D-23142-00-00

1
Out of stock

38

VALVE COMP.

1SS-2316A-00-00

—
Out of stock

39

O-RING

1C3-23188-L1-00

1
Out of stock

40

O-RING

1C3-23188-N0-00

—
Out of stock

41

O-RING

1C3-23188-P0-00

—
Out of stock

42

O-RING

1W4-23114-L0-00

—
Out of stock

43

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

44

O-RING

1C3-23188-R1-00

—
Out of stock

45

SPRING, FRONT FORK(K=4.1N/MM)

1C3-23141-C1-00

1
Out of stock

46

BOLT, CAP

5XC-23111-01-00

—
Out of stock

47

GASKET

2HH-23158-L0-00

—
Out of stock

48

GASKET

276-23114-01-00

—
Out of stock

49

UNDER BRACKET COMP.

1SR-23340-00-00

—
Out of stock

50

BEARING(4SR)

93332-00081-00

—
Out of stock

51

BOLT, FLANGE

90105-08154-00

—
Out of stock

52

GUIDE, CABLE

1SS-23389-00-00

—
Out of stock

53

BOLT, FLANGE

90105-06107-00

—
Out of stock

54

COLLAR

90387-06104-00

—
Out of stock

55

PROTECTOR 2

17D-2315J-50-00

—
Out of stock

56

PROTECTOR 1

17D-2315H-50-00

—
Out of stock

57

BOLT

90109-06232-00

—
Out of stock

58

CLAMP

17D-23466-00-00

—
Out of stock

59

CLAMP

17D-23467-00-00

—
Out of stock

60

BOLT, FLANGE

90105-06170-00

—
Out of stock

61

FORK SEAL KIT (TWO FORKS)

17D-W003B-00-00

—
Out of stock
