2014 Yamaha YZ125 (YZ125E2) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2014 Yamaha YZ125 (YZ125E2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

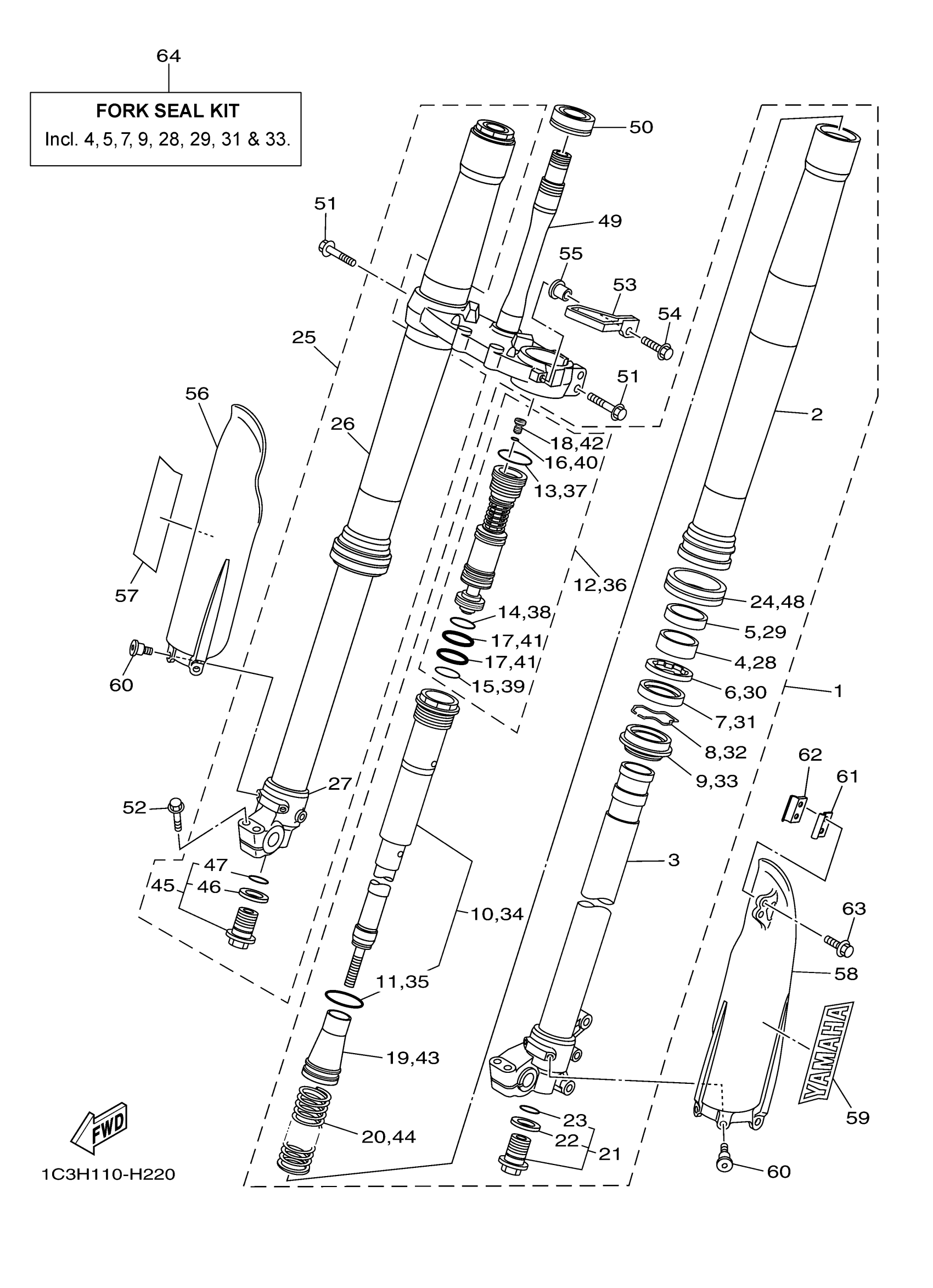

2014 Yamaha YZ125 (YZ125E2) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

1C3-23102-D0-00

—
Out of stock

2

TUBE, OUTER (RIGHT)

1C3-23136-P0-00

1
Out of stock

3

INNER TUBE COMP.2

5XC-23120-N0-00

1
Out of stock

4

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

5

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

6

WASHER, OIL SEAL

5XC-23146-00-00

1
Out of stock

7

OIL SEAL

1C3-23145-L0-00

1
Out of stock

8

RING, SNAP

5XE-23153-L0-00

1
Out of stock

9

SEAL, DUST

5XE-23144-L0-00

1
Out of stock

10

CYLINDER COMP., FRONT FORK

5XC-23170-P0-00

—
Out of stock

11

O-RING

1C3-23147-L1-00

1
Out of stock

12

VALVE COMP.

1C3-2316A-T0-00

—
Out of stock

13

O-RING

1C3-23188-L1-00

1
Out of stock

14

O-RING

1C3-23188-N0-00

1
Out of stock

15

O-RING

1C3-23188-P0-00

1
Out of stock

16

O-RING

1C3-23188-R1-00

—
Out of stock

17

O-RING

1W4-23114-L0-00

—
Out of stock

18

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

19

SEAT, SPRING UPPER

1C3-23142-L0-00

—
Out of stock

20

SPRING, FRONT FORK(K=4.1N/MM)

1C3-23141-C1-00

1
Out of stock

21

BOLT, CAP

5XC-23111-01-00

—
Out of stock

22

GASKET

2HH-23158-L0-00

—
Out of stock

23

GASKET

276-23114-01-00

—
Out of stock

24

PROTECTER GUIDE COMP., 1

5XC-2314F-00-00

—
Out of stock

25

FRONT FORK ASSY (R.H)

1C3-23103-D0-00

—
Out of stock

26

TUBE, OUTER (RIGHT)

1C3-23136-P0-00

1
Out of stock

27

INNER TUBE COMP.1

5XC-23110-N0-00

—
Out of stock

28

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

29

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

30

WASHER, OIL SEAL

5XC-23146-00-00

1
Out of stock

31

OIL SEAL

1C3-23145-L0-00

1
Out of stock

32

RING, SNAP

5XE-23153-L0-00

1
Out of stock

33

SEAL, DUST

5XE-23144-L0-00

1
Out of stock

34

CYLINDER COMP., FRONT FORK

5XC-23170-P0-00

—
Out of stock

35

O-RING

1C3-23147-L1-00

1
Out of stock

36

VALVE COMP.

1C3-2316A-T0-00

—
Out of stock

37

O-RING

1C3-23188-L1-00

1
Out of stock

38

O-RING

1C3-23188-N0-00

1
Out of stock

39

O-RING

1C3-23188-P0-00

1
Out of stock

40

O-RING

1C3-23188-R1-00

—
Out of stock

41

O-RING

1W4-23114-L0-00

—
Out of stock

42

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

43

SEAT, SPRING UPPER

1C3-23142-L0-00

—
Out of stock

44

SPRING, FRONT FORK(K=4.1N/MM)

1C3-23141-C1-00

1
Out of stock

45

BOLT, CAP

5XC-23111-01-00

—
Out of stock

46

GASKET

2HH-23158-L0-00

—
Out of stock

47

GASKET

276-23114-01-00

—
Out of stock

48

PROTECTER GUIDE COMP., 1

5XC-2314F-00-00

—
Out of stock

49

UNDER BRACKET COMP.

1C3-23340-M0-00

—
Out of stock

50

BEARING(4SR)

93332-00081-00

—
Out of stock

51

BOLT, FLANGE

90105-08134-00

—
Out of stock

52

BOLT, FLANGE

90105-08154-00

—
Out of stock

53

GUIDE, CABLE

5XE-23389-00-00

—
Out of stock

54

BOLT, FLANGE

90105-06107-00

—
Out of stock

55

COLLAR

90387-06104-00

—
Out of stock

56

PROTECTOR 2

5XC-2315J-00-00

—
Out of stock

57

EMBLEM, YAMAHA

4XL-2153A-11-00

—
Out of stock

58

PROTECTOR 1

5XC-2315H-00-00

—
Out of stock

59

EMBLEM, YAMAHA

4XL-2153A-11-00

—
Out of stock

60

BOLT

90109-06232-00

—
Out of stock

61

CLAMP

17D-23466-00-00

—
Out of stock

62

CLAMP

17D-23467-00-00

—
Out of stock

63

BOLT, FLANGE

90105-06178-00

—
Out of stock

64

FORK SEAL KIT (TWO FORKS)

1C3-W003B-00-00

—
Out of stock
