1992 Yamaha YZ125D1 (YZ125D1) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1992 Yamaha YZ125D1 (YZ125D1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

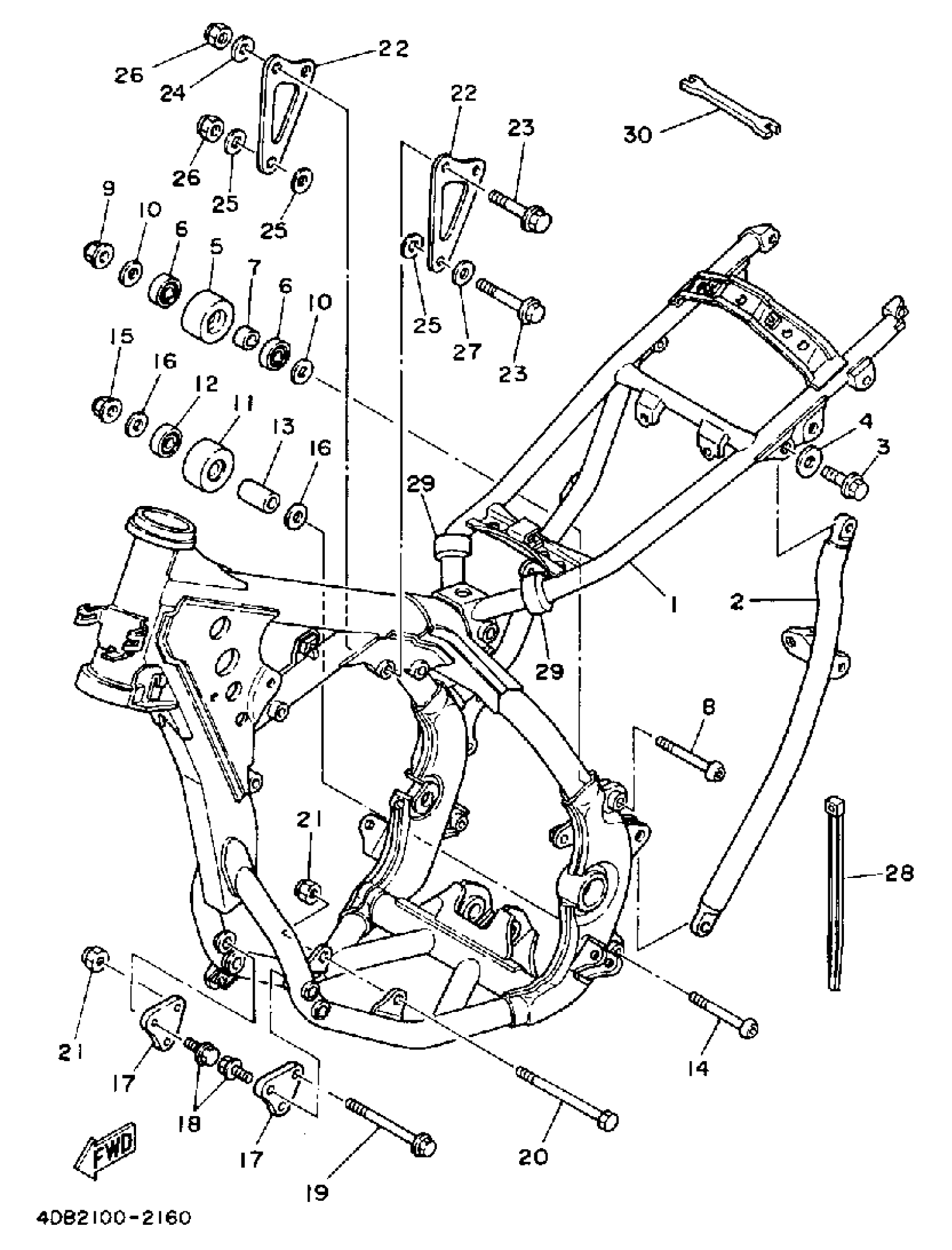

1992 Yamaha YZ125D1 (YZ125D1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

4DB-21110-00-UJ

1
Out of stock

2

BACK, STAY LH

3XK-21123-00-T9

1
Out of stock

3

BOLT, HEXAGON (3L6)

90101-08461-00

1

$3.66

In stock

4

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

5

TENSIONER

3JD-22178-00-00

1
Out of stock

6

BEARING (3X3)

93300-60804-00

1

$11.18

In stock

7

COLLAR(1HX)

90387-087K5-00

1

$7.46

In stock

8

BOLT, BUTTON

92017-08070-00

1

$6.23

In stock

9

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

10

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

11

TENSIONER

3JD-22178-20-00

1

$37.74

In stock

12

BEARING (3X3)

93300-60804-00

1

$11.18

In stock

13

COLLAR(1NL)

90387-086N4-00

1

$8.31

In stock

14

BOLT, BUTTON

92017-08070-00

1

$6.23

In stock

15

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

16

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

17

BRACKET, ENGINE 2

1LX-21419-01-00

1
Out of stock

18

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

19

BOLT, FLANGE(8BT)

95817-08095-00

—
Out of stock

20

BOLT

90109-08386-00

—
Out of stock

21

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

22

BRACKET, REAR UPR 1

1LX-21425-00-00

1
Out of stock

23

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

24

WASHER 6464313202

90202-08022-00

—

$3.56

In stock

25

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

26

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

27

WASHER, PLATE(J42)

90201-084K3-00

—

$6.85

In stock

28

BAND

1UA-82591-00-00

—
Out of stock

29

DAMPER, SIDE COVER

3XJ-21717-00-00

1
Out of stock

30

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
