1982 Yamaha YZ100J (YZ100J) Frame - Tool Diagram

← All diagrams

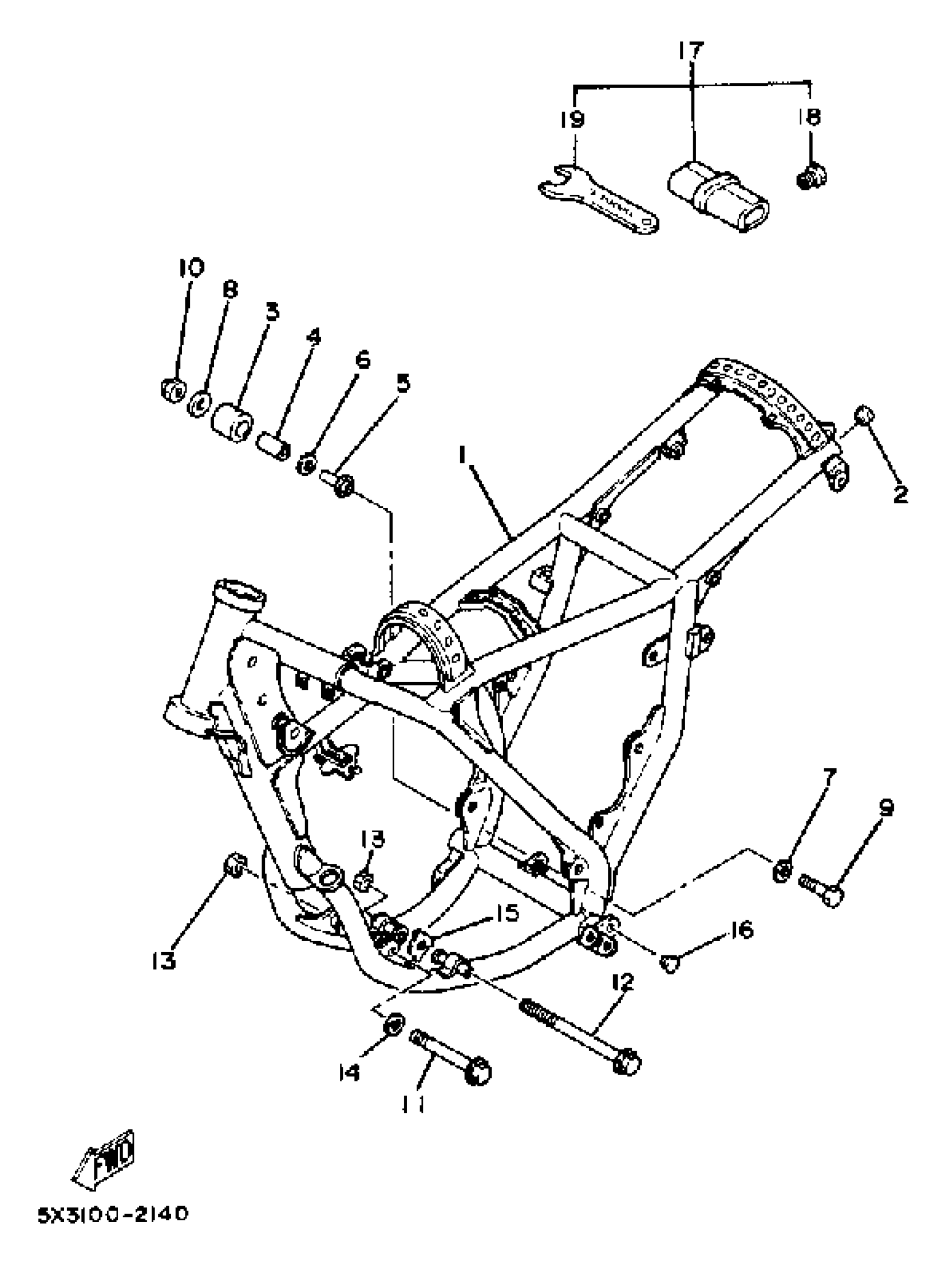

Find the part on the Frame - Tool diagram for your 1982 Yamaha YZ100J (YZ100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YZ100J (YZ100J) Frame - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5X3-21110-01-33)

1
Out of stock

2

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

3

TENSIONER

30X-22178-00-00

1
Out of stock

4

BUSH

4V4-22184-00-00

1

$3.57

In stock

5

SHAFT

3R3-2148A-00-00

1
Out of stock

6

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

7

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

8

WASHER, PLATE

90201-08638-00

1
Out of stock

9

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

10

NUT, U

95617-08100-00

1

$6.78

In stock

11

BOLT, FLANGE

95817-08100-00

1

$4.32

In stock

12

BOLT, WASHER BASED

90105-08473-00

1
Out of stock

13

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

14

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

15

WASHER, CLAW

90214-09019-00

1
Out of stock

16

PLUG

90338-12131-00

1
Out of stock

17

TOOL KIT

(5X3-28100-00-00)

1
Out of stock

18

TOOL KIT

(5X3-28100-00-00)

1
Out of stock

19

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock
