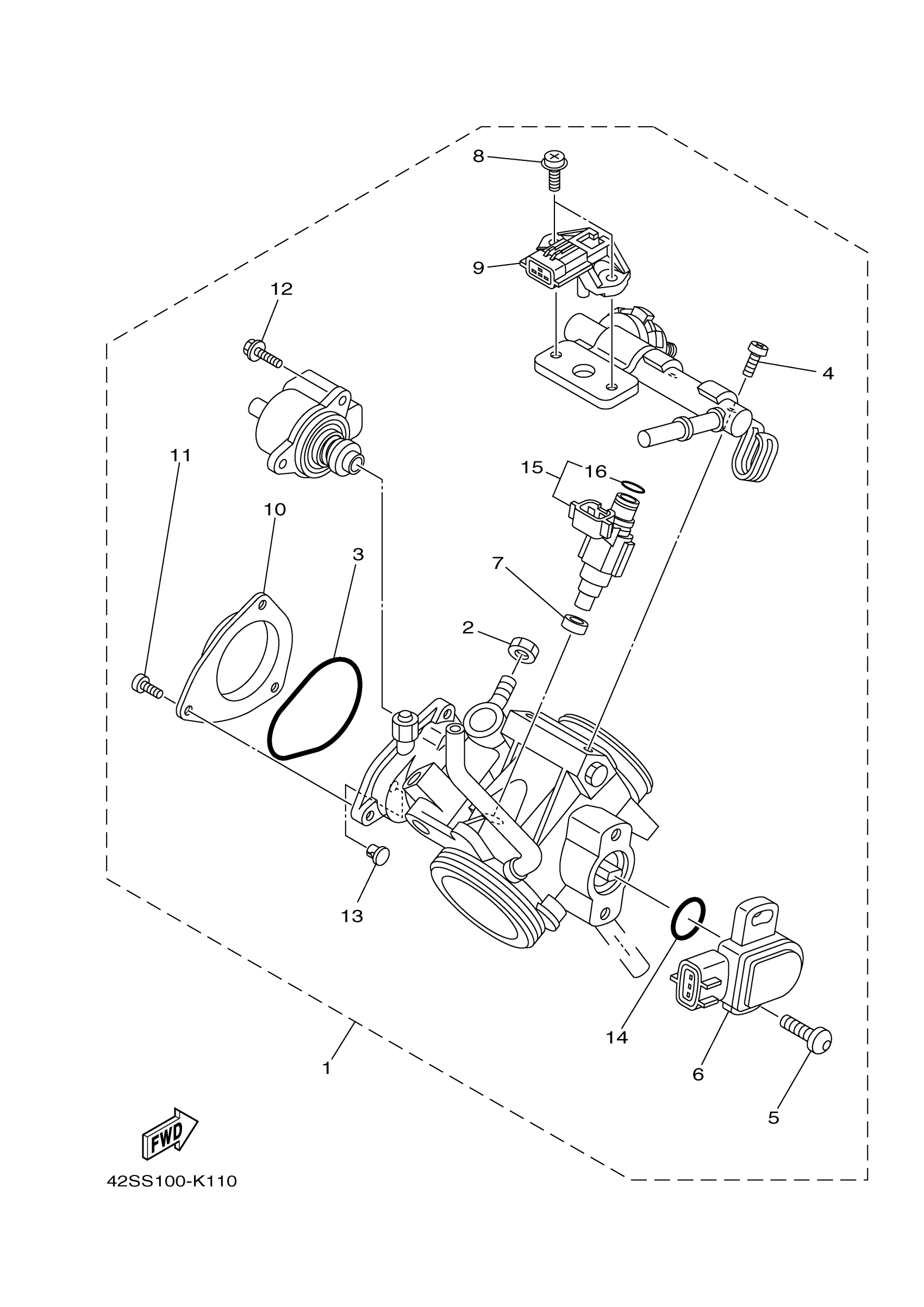

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

5B4-13750-02-00

Unavailable

2

NUT, CABLE ADJUSTING

1S3-14161-00-00

$6.38

3

O-RING

5LP-14147-00-00

$10.17

4

SCREW, PAN

98517-06012-00

$3.14

5

SCREW

8CC-14216-10-00

$7.12

6

THROTTLE SENSOR AS

3B4-85885-01-00

$63.34

7

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

8

SCREW, PAN

98507-06010-00

$2.69

9

SENSOR, PRESSURE

2C0-82380-10-00

$144.93

10

COVER 1

5UG-14293-00-00

$9.98

11

SCREW, PAN HEAD(3XP)

98517-04006-00

$4.10

12

SCREW

1S4-14216-00-00

Unavailable

13

GUIDE, CABLE

1UY-14155-00-00

$15.83

14

O-RING

5YP-14562-00-00

$6.62

15

INJECTOR

5B4-13761-00-00

$136.21

16

O-RING

5FL-14147-00-00

$13.06
