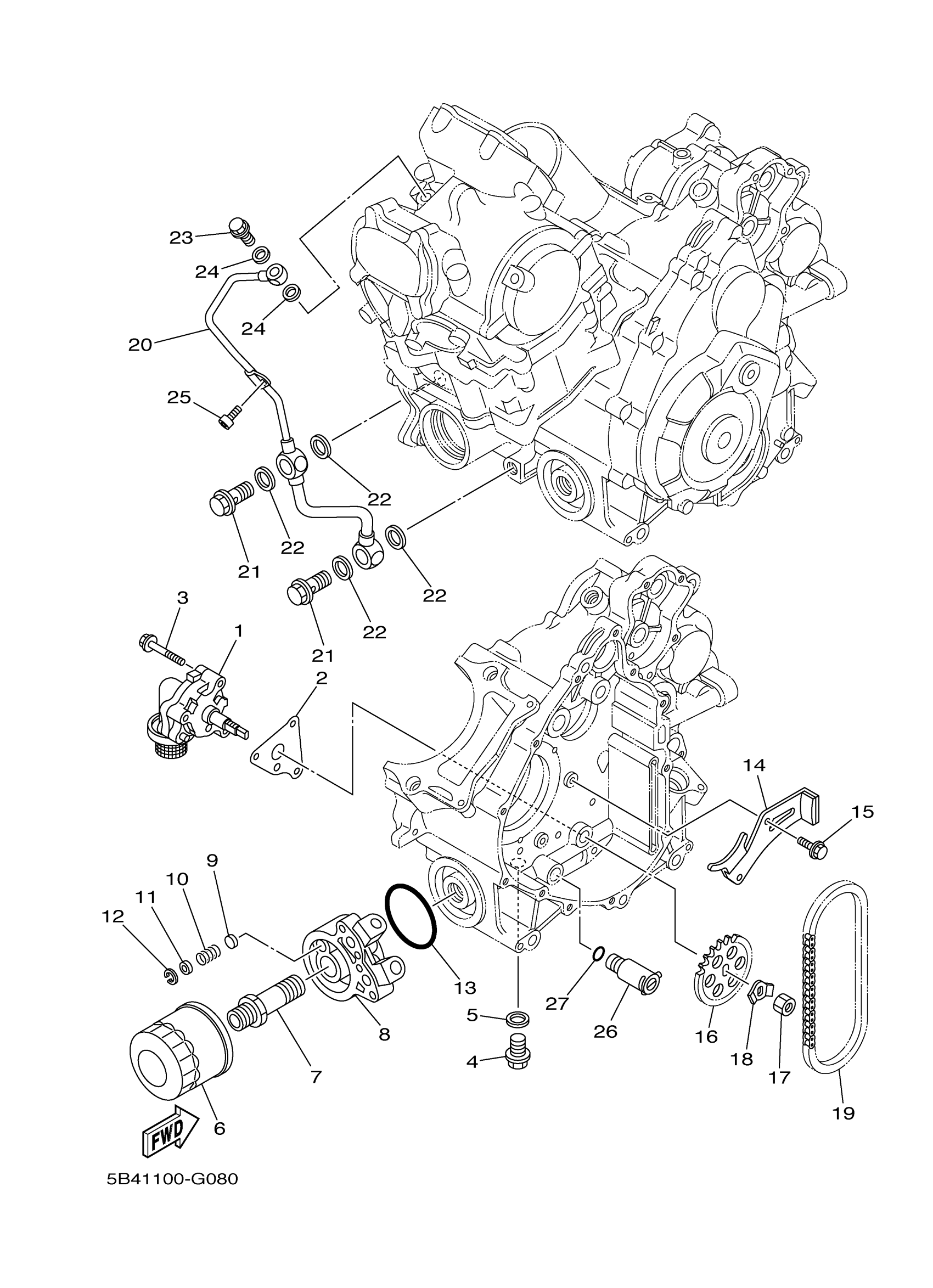

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
3B4-13300-00-00
$191.99
2
GASKET, PUMP COVER
3B4-13329-00-00
$6.99
3
BOLT, FLANGE
95022-06040-00
$3.45
4
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
$3.98
5
GASKET
214-11198-01-00
$3.17
6
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
7
BOLT, UNION(4KM)
90401-20162-00
$35.99
8
PLATE, ADAPTOR
5UG-13461-00-00
$166.99
9
PLUG
1YW-13497-00-00
$6.99
10
SPRING, COMPRESSION(1YW)
90501-082E3-00
$3.28
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
CIRCLIP(1YW)
93420-13073-00
$8.49
13
O-RING (4H7)
93210-57428-00
$14.99
14
GUIDE, STOPPER 3
3B4-12221-01-00
$15.49
15
BOLT, FLANGE
95022-06020-00
$3.62
16
SPROCKET, DRIVEN
3B4-13355-00-00
Unavailable
17
NUT(624)
95380-10600-00
Unavailable
18
WASHER, LOCK
90215-10008-00
Unavailable
19
CHAIN
94580-31074-00
Unavailable
20
PIPE, DELIVERY 2
3B4-13171-00-00
Unavailable
21
BOLT, UNION(1YW)
90401-14118-00
Unavailable
22
GASKET 256131670000
90430-14043-00
Unavailable
23
BOLT, UNION
90401-10024-00
Unavailable
24
GASKET
90430-10188-00
Unavailable
25
BOLT,SOCKET
91317-06012-00
Unavailable
26
RELIEF VALVE ASSY
25G-13490-00-00
Unavailable
27
O-RING (611)
93210-10096-00
Unavailable
