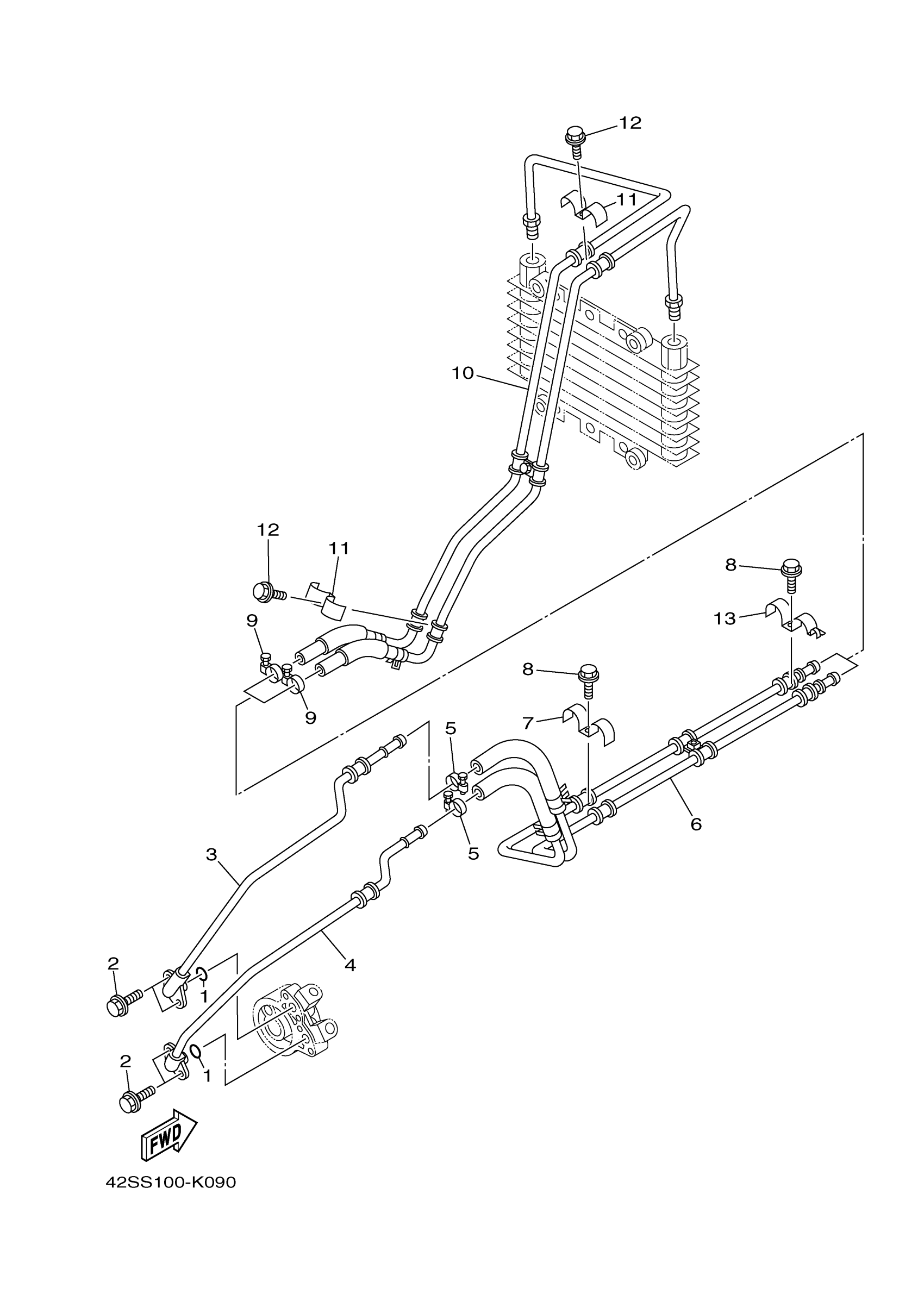

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 OIL PIPE Diagram

#

Description

Price

1

O-RING (371)

93210-10197-00

$5.86

2

BOLT(3MA)

91312-06016-00

$4.89

3

PIPE, OIL 1

5B4-13416-00-00

$74.92

4

PIPE, OIL 2

5B4-13418-00-00

$68.89

5

HOSE CLAMP ASSY

90450-18M09-00

$11.49

6

OIL PIPE COMP. 2

5B4-E3406-00-00

Unavailable

7

CLAMP

90462-15800-00

Unavailable

8

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.00

9

HOSE CLAMP ASSY

90450-18M09-00

$11.49

10

OIL PIPE COMP. 1

5B4-E3405-00-00

$107.51

11

CLAMP

90462-15800-00

Unavailable

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.00

13

CLAMP 1

42S-E2491-00-00

Unavailable
