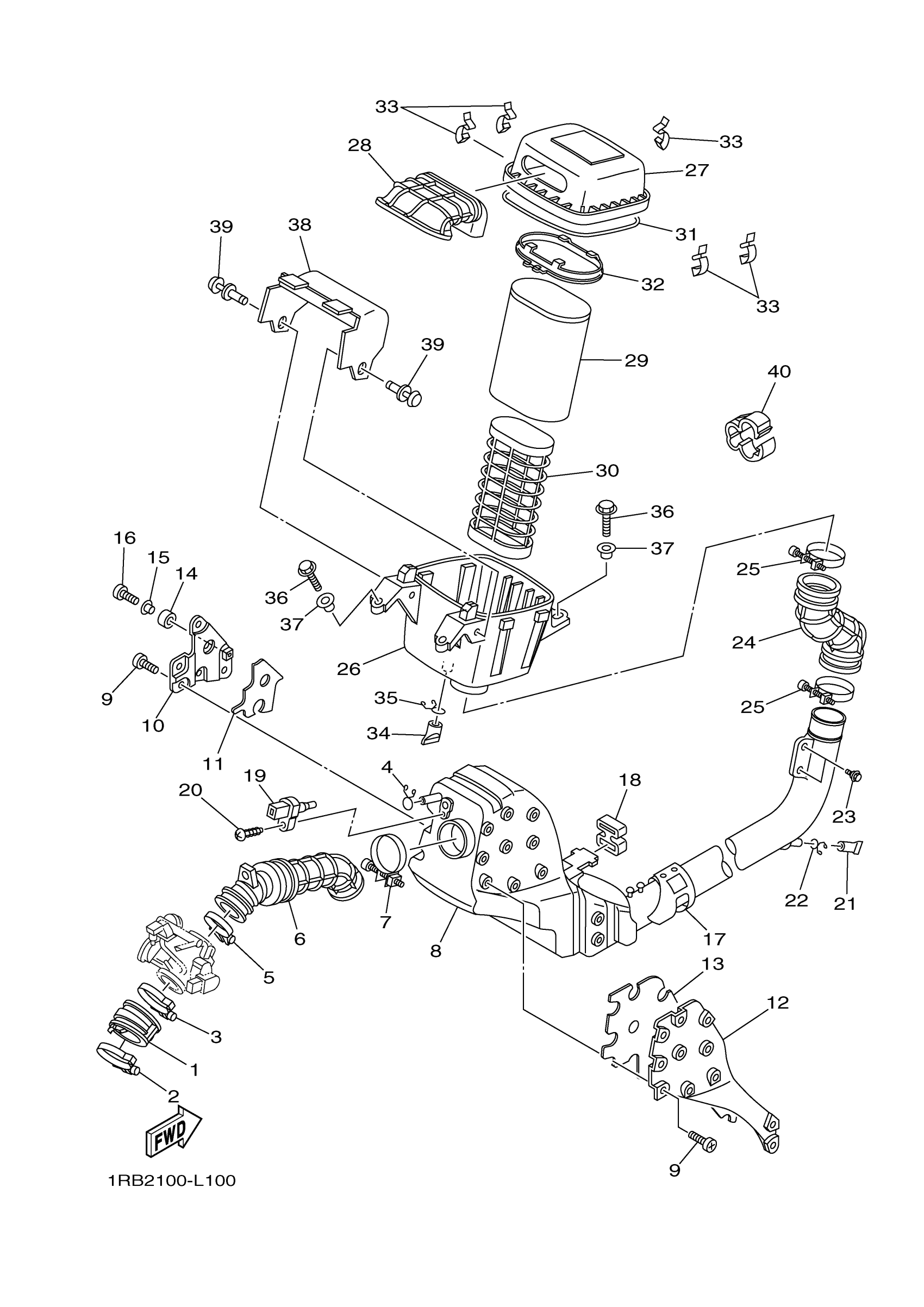

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
5B4-13586-00-00
$42.99
2
HOSE CLAMP ASSY
90450-72004-00
$18.99
3
HOSE CLAMP ASSY
90450-72004-00
$18.99
4
CLIP
90467-150A2-00
$7.49
5
HOSE CLAMP ASSY
90450-62006-00
$12.49
6
JOINT, AIR CLEANER 1
5B4-E4453-00-00
Unavailable
7
BAND
5B4-E4455-00-00
Unavailable
8
DUCT
5B4-E443A-00-00
Unavailable
9
SCREW, PAN HEAD
5B4-E4325-00-00
Unavailable
10
PLATE 1
5B4-E4247-00-00
Unavailable
11
SPACER
5B4-E4163-00-00
Unavailable
12
PLATE 2
5B4-E4248-00-00
Unavailable
13
SPACER
5B4-E4442-00-00
Unavailable
14
DAMPER 2
5B4-E4426-00-00
Unavailable
15
COLLAR
5B4-E4449-00-00
Unavailable
16
SCREW
5B4-E4429-00-00
Unavailable
17
PROTECTOR
5B4-E442F-00-00
Unavailable
18
DAMPER
5B4-E4409-00-00
Unavailable
19
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
20
SCREW, PANHEAD TAPPING
97702-50520-00
Unavailable
21
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
22
CLIP
90467-160A4-00
Unavailable
23
BOLT
90109-06172-00
Unavailable
24
JOINT
5B4-E4454-00-00
Unavailable
25
BAND
5B4-E4455-00-00
Unavailable
26
CASE, AIR CLEANER 1
5B4-E4411-00-00
Unavailable
27
CAP, CLEANER CASE
5B4-E4412-00-00
Unavailable
28
DUCT
5B4-E4437-00-00
Unavailable
29
ELEMENT, AIR CLEAN
5B4-E4451-00-00
Unavailable
30
PLATE, ELEMENT
5B4-E4472-00-00
Unavailable
31
SEAL
5B4-E4457-00-00
Unavailable
32
SEAL RING
42S-E41A1-00-00
Unavailable
33
CLIP, CAP FITTING
3B4-14424-00-00
Unavailable
34
SEAL
59V-14457-00-00
Unavailable
35
CLIP
90467-220A1-00
Unavailable
36
BOLT, FLANGE
90105-06833-00
Unavailable
37
COLLAR
90387-08073-00
Unavailable
38
COVER 2
5B4-E246E-00-00
Unavailable
39
RIVET
5UG-F3483-00-00
Unavailable
40
CLAMP(4GL)
90464-10233-00
Unavailable
