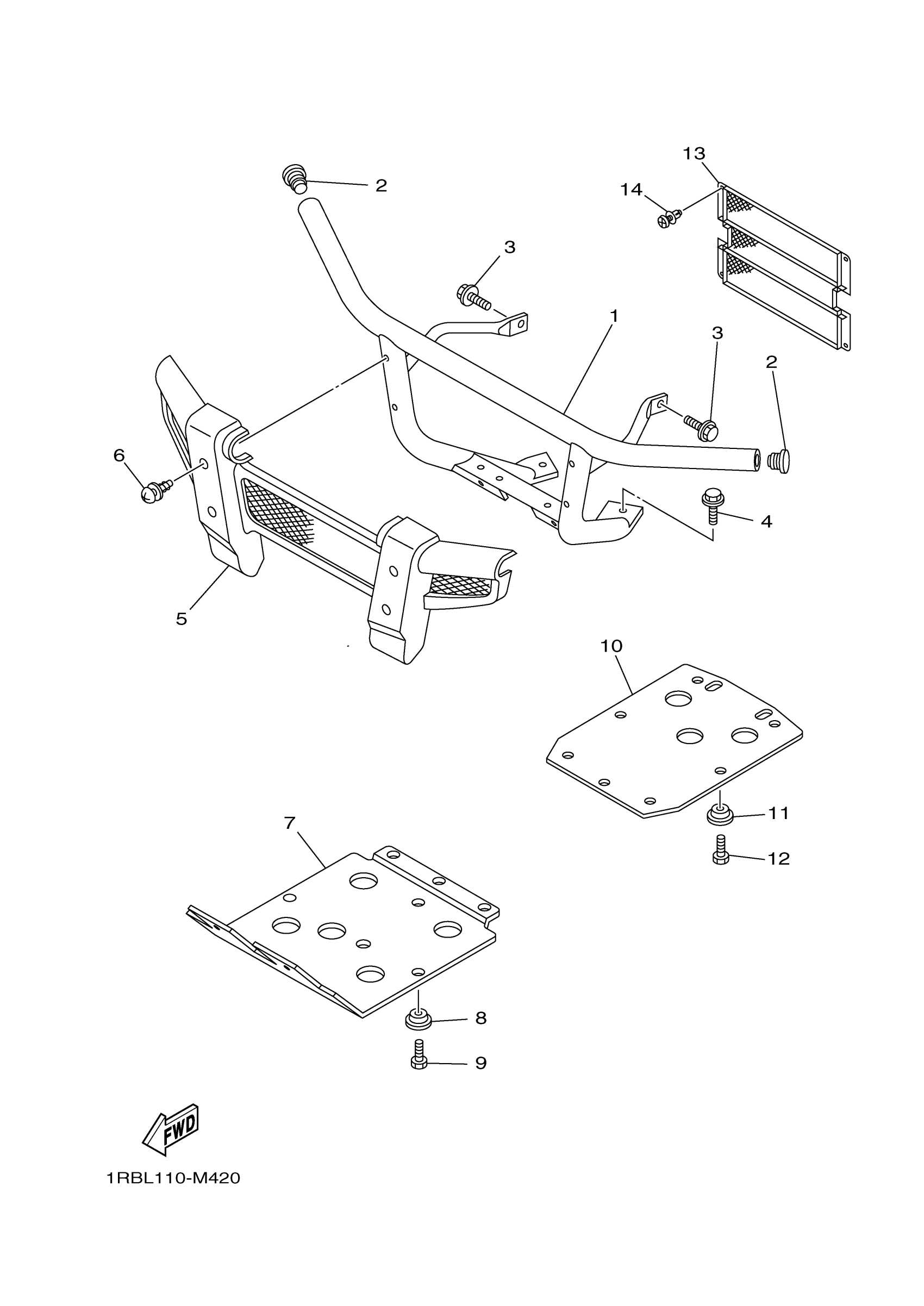

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT, WRINKLE BLK

1RB-F845N-00-00

Unavailable

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$5.06

3

BOLT, FLANGE

95817-10020-00

$6.08

4

BOLT, FLANGE

95812-12025-00

$6.30

5

COVER 5

5UG-F842A-00-00

$47.96

6

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.49

7

COVER,LOWER

2P5-F8385-01-00

$80.99

8

SPACER

5UG-F8329-01-00

$5.53

9

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.49

10

COVER,UNDER 2

5UG-F8395-01-00

$83.99

11

SPACER

5UG-F8329-01-00

$5.53

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.49

13

LOUVER, 1

5UG-F2858-00-00

Unavailable

14

RIVET

5UG-F3483-00-00

$1.86
