Description

Price

1

CAST WHEEL, FRONT

5UG-F5168-10-00

Unavailable

2

TIRE (25X8.00-12 M951Y TL)

94108-12809-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT, CROWN

90176-10803-00

$3.09

5

WHEEL CAP ASSY.

1RB-F530B-00-00

$12.27

6

DRIVE SHAFT ASSY

5B4-F518F-00-00

$228.25

7

. BALL JOINT SET

5B4-F510F-00-00

$248.99

8

BOOT SET (BALL JOINT)

5B4-F510G-00-00

$86.63

9

. BOOT SET(DOUBLE OFFSET JOINT)

5B4-F510H-00-00

Unavailable

10

. DOUBLE OFF SET JOINT

5B4-F510J-00-00

$135.99

11

. BOOT BAND (BALL JOINT)

5B4-F511G-00-00

$13.14

12

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

$12.09

13

. BOOT BAND (SMALL)

5B4-F512G-00-00

$13.14

14

SNAP RING

3B4-2512J-00-00

$8.12

15

CIRCLIP

5UG-F512H-00-00

$7.09

16

. BOOT BAND (SMALL)

5UG-F510U-00-00

$10.78

17

CIRCLIP(2HR)

93450-22119-00

$5.10

18

STEERING,KNUCKLE (R)

5UG-F3502-12-00

$256.48

19

BEARING

93306-006Y4-00

$28.22

20

OIL SEAL

93106-38046-00

$14.64

21

OIL SEAL

93106-38047-00

$24.03

22

COLLAR

90387-30008-00

$20.02

23

BALL JOINT 1

37S-23549-01-00

$67.35

24

CIRCLIP

93410-32075-00

$6.97

25

HUB, FRONT

5UG-F5111-10-00

Unavailable

26

BOLT, SERRATION

90114-10016-00

$5.27

27

O-RING(47X)

93210-27666-00

$5.53

28

NUT

90179-24003-00

$13.06

29

RING, WHEEL 1

5UG-F514A-00-00

Unavailable

30

SCREW(3LD)

90149-06280-00

$4.43

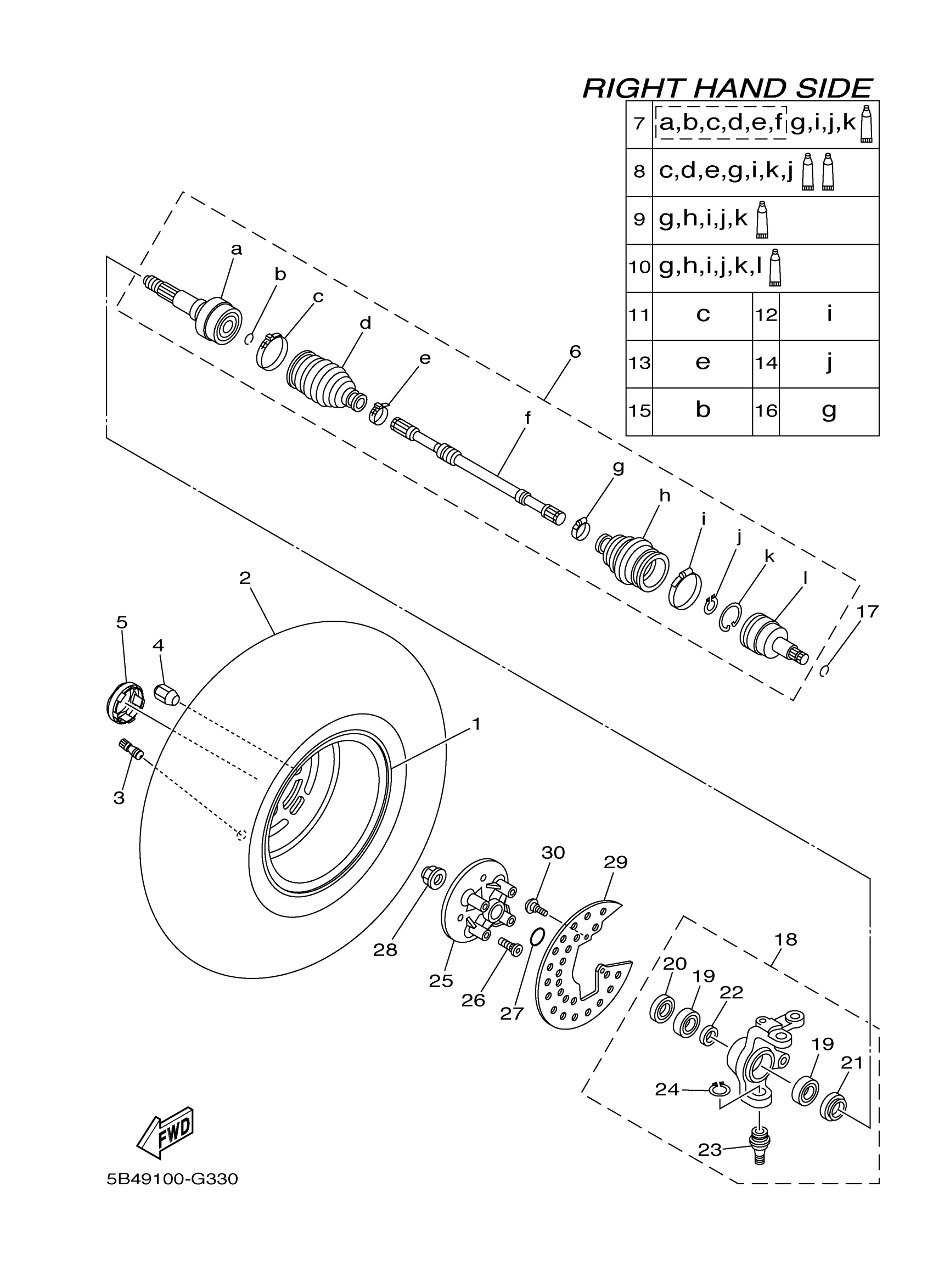

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 FRONT WHEEL 2 Diagram

CAST WHEEL, FRONT

TIRE (25X8.00-12 M951Y TL)

. BOOT SET(DOUBLE OFFSET JOINT)

HUB, FRONT

RING, WHEEL 1
