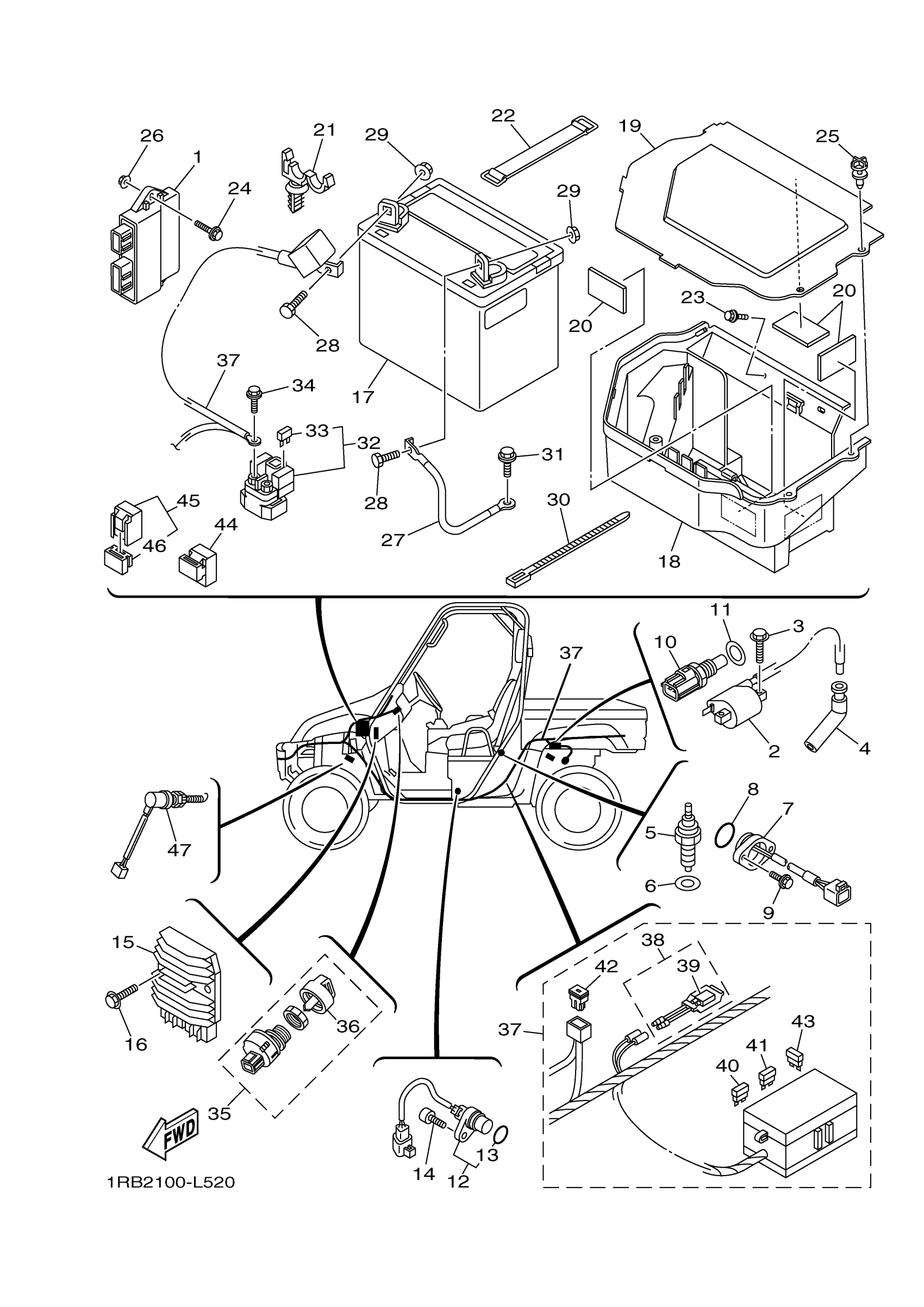

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

1RB-8591A-01-00

$1,180.85

2

IGNITION COIL ASSY

5YU-H2310-14-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.91

4

PLUG CAP ASSY

5B4-82370-00-00

$57.01

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

6

GASKET (1KH,1.0T)

90430-10148-00

$4.74

7

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$68.10

8

O-RING (371)

93210-29196-00

$6.45

9

BOLT, WITH WASHER

90119-06137-00

$6.25

10

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

11

GASKET(2GH)

90430-12202-00

$7.09

12

SENSOR, SPEED

3B4-83755-01-00

$115.46

13

O-RING

4D9-81168-00-00

$3.71

14

BOLT,SOCKET HEAD

91314-06020-00

$2.05

15

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$277.19

16

BOLT, FLANGE

90105-06833-00

$1.77

17

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

18

BOX, BATTERY 1

5B4-H212B-00-00

Unavailable

19

COVER, BATTERY

5B4-H2129-00-00

$12.89

20

DAMPER, SIDE COVER

4XE-F4145-00-00

Unavailable

21

CLAMP

90464-12830-00

$1.02

22

BAND, BATTERY

22F-82131-00-00

$23.43

23

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.23

24

BOLT, FLANGE

95817-06025-00

$1.46

25

RIVET

5UG-F3483-00-00

$3.80

26

NUT, FLANGE

95702-06500-00

$1.98

27

WIRE, MINUS LEAD

5B4-H2116-00-00

Unavailable

28

BOLT(6TD)

97080-08020-00

$2.45

29

NUT

90179-08015-00

$7.89

30

CLAMP(JN6)

90464-31827-00

$2.63

31

BOLT, FLANGE

95812-06014-00

$5.45

32

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

$87.90

33

FUSE (10A)

42X-82151-00-00

$2.16

34

BOLT, FLANGE

95022-06008-00

$6.26

35

MAIN SWITCH ASSY

1XD-H2510-11-00

$30.28

36

CAP, KEY

5UG-H2579-00-00

$8.57

37

WIRE HARNESS ASSY

1RB-82590-00-00

$933.99

38

CIRCUIT BREAKER ASSY

5B4-82180-00-00

$40.94

39

THERMO SWITCH ASSY

5B4-82560-00-00

$47.74

40

FUSE (15A)

67F-82151-50-00

$3.71

41

. FUSE (10A)

67F-82151-40-00

$6.67

42

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

43

FUSE (25A-BL)

5JJ-82151-70-00

$5.93

44

RELAY ASSY

5DM-81950-01-00

$24.72

45

RELAY ASSY (5EA-02)

5EA-81950-20-00

$49.46

46

HOLDER,RELAY

5EA-81952-00-00

$6.72

47

STOP SWITCH ASSY

4KB-82530-11-00

$47.60
