Description

Price

1

CYLINDER HEAD ASSY

5B4-11102-00-00

$899.05

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$45.32

3

BOLT, STUD

95612-08625-00

$4.69

4

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$47.74

5

BOLT

90109-09003-00

$9.10

6

BOLT

90109-09002-00

$9.10

7

BOLT

90109-09005-00

$7.40

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

9

PLUG, SPARK (NGK CPR7EA)

CPR-7EA90-00-00

$8.77

10

PIN, DOWEL(4XL)

93612-16254-00

$4.37

11

COVER, CYLINDER HEAD SIDE 1

5B4-11185-00-00

$33.34

12

PLATE, BREATHER

3B4-11165-00-00

$27.12

13

PIPE, BREATHER 2

371-11167-01-00

$10.35

14

O-RING (70R)

93210-96601-00

$10.68

15

BOLT, FLANGE

95022-06012-00

$3.00

16

BOLT, FLANGE

95022-06020-00

$3.32

17

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

$26.46

18

O-RING (14X)

93210-78544-00

$10.65

19

BOLT, FLANGE

95022-06020-00

$3.32

20

PIPE, BREATHER 1

5B4-11166-00-00

$94.80

21

CLIP

90467-140A4-00

$8.31

22

BOLT, UNION

90401-08004-00

$6.31

23

GASKET

90430-08119-00

$4.70

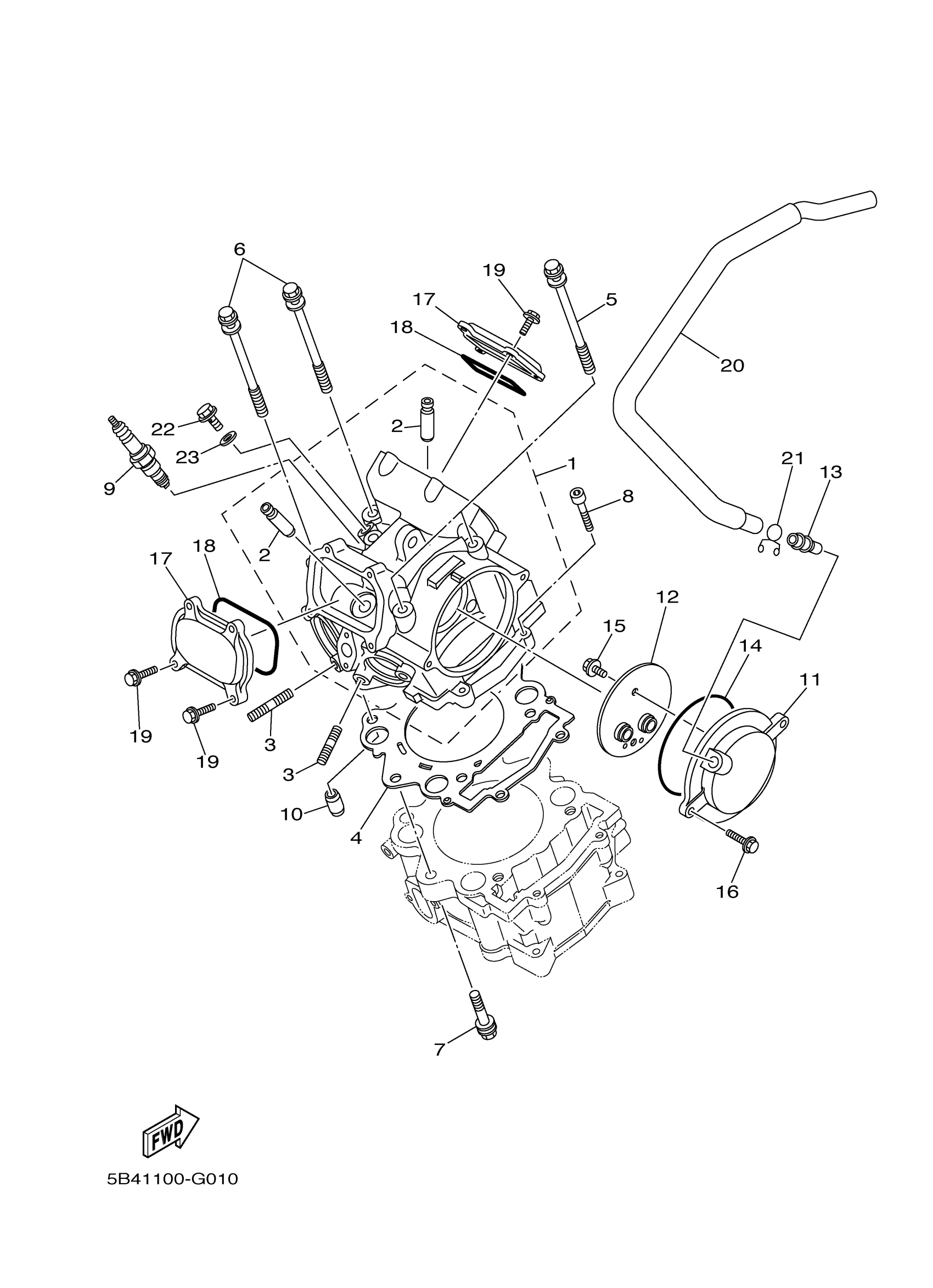

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 CYLINDER HEAD Diagram
