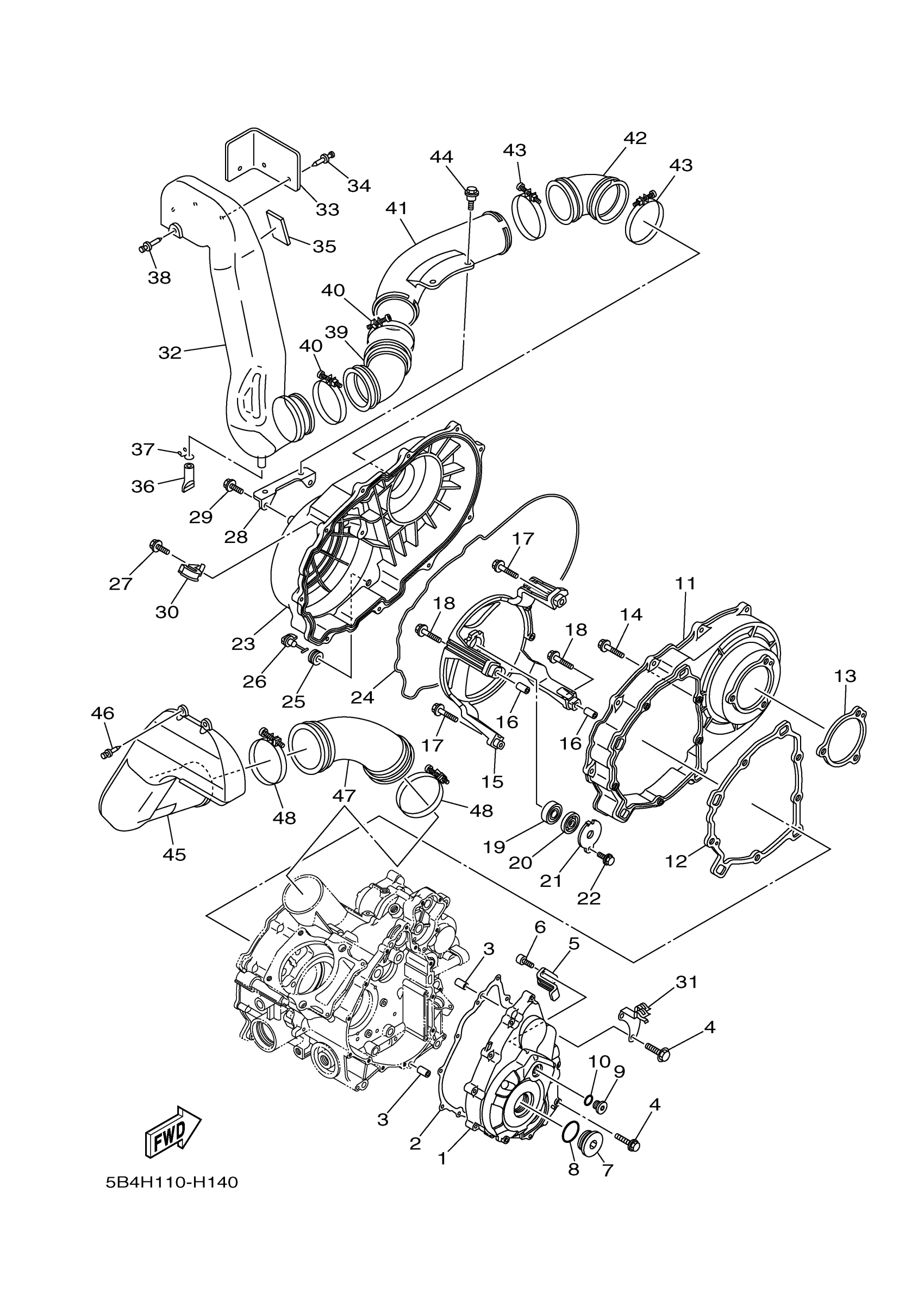

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3B4-15411-01-00

$233.88

2

GASKET, CRANKCASE COVER 1

3B4-15451-00-00

$26.61

3

PIN, DOWEL(2VG)

99530-10116-00

$3.37

4

BOLT, FLANGE

95022-06030-00

$1.40

5

PLATE

3B4-15113-00-00

$6.35

6

BOLT

91312-05014-00

$2.74

7

PLUG, STRAIGHT SCREW

90340-36004-00

$16.00

8

O-RING

93210-35804-00

$0.49

9

PLUG, STRAIGHT SCREW

90340-14016-00

$15.25

10

O-RING (2H9)

93210-14369-00

$5.80

11

COVER, CRANKCASE 2

5B4-15421-00-00

Unavailable

12

GASKET

3B4-15453-01-00

$14.95

13

SEAL, CRANKCASE

3B4-15315-00-00

$10.82

14

95822-06030

95822-06030-00

$1.54

15

HOUSING, BEARING

3B4-15442-00-00

$304.29

16

PIN, DOWEL(2VG)

99530-10116-00

$3.37

17

95822-06030

95822-06030-00

$1.54

18

BOLT, FLANGE

95817-06040-00

$4.54

19

BEARING(3WF)

93306-20119-00

$28.48

20

OIL SEAL

93101-12168-00

$4.34

21

PLATE, BEARING COVER

4WV-15381-00-00

$7.32

22

BOLT, FLANGE

95022-06016-00

$3.32

23

COVER, CRANKCASE 3

5B4-15431-01-00

$206.95

24

SEAL, CRANKCASE

3B4-15379-00-00

$25.33

25

GROMMET (462)

90480-13018-00

$6.25

26

PLUG, DRAIN

5KM-15351-00-00

$6.72

27

BOLT, FLANGE

95817-06020-00

$2.69

28

BRACKET

2P5-15199-00-00

$17.29

29

BOLT, FLANGE

95817-06012-00

$1.49

30

CLAMP

90462-10049-00

Unavailable

31

GUIDE, OIL HOSE

5B4-13487-00-00

$13.71

32

DUCT, AIR

5B4-E5471-00-00

Unavailable

33

PROTECTOR, COVER

5B4-E5499-00-00

Unavailable

34

RIVET

90269-06800-00

$1.45

35

PLATE, DAMPER 1

5B4-F3421-00-00

Unavailable

36

PIPE, DRAIN

5BF-1443E-00-00

$3.49

37

CLIP(62Y)

90467-15M14-00

$3.46

38

RIVET

90269-06800-00

$1.45

39

SEAL, AIR DUCT

5B4-E5474-00-00

Unavailable

40

CLAMP, HOSE(59V)

90460-85277-00

$12.62

41

DUCT, AIR

5B4-E5475-00-00

Unavailable

42

SEAL, CRANKCASE

5B4-E5379-00-00

$16.18

43

CLAMP, HOSE(59V)

90460-85277-00

$12.62

44

BOLT

90109-06172-00

$2.71

45

AIR DUCT ASSY

5B4-E5470-00-00

$28.50

46

RIVET

90269-08813-00

$0.54

47

SEAL, AIR DUCT

5B4-E5472-00-00

$17.78

48

CLAMP, HOSE(59V)

90460-85277-00

$12.62
