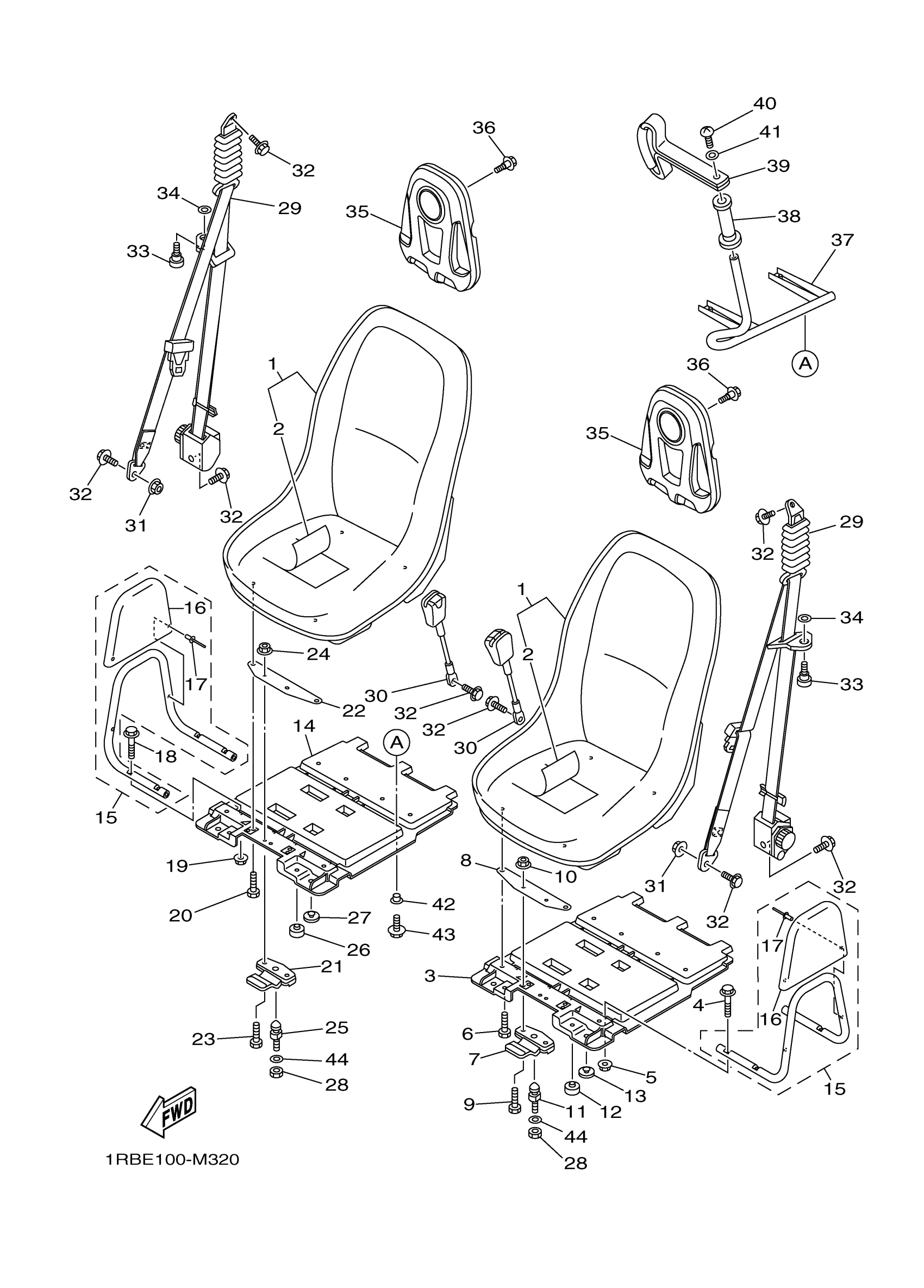

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
5UG-F4710-01-00
Unavailable
2
. SEAT COVER COMP
5UG-F470F-00-00
Unavailable
3
BOTTOM PLATE COMP.
5UG-F470E-01-00
Unavailable
8
HANDLE, SEAT
5B4-F4761-00-00
Unavailable
14
BOTTOM PLATE COMP.
5UG-F470E-01-00
Unavailable
16
. COVER,2
5B4-F475X-00-00
Unavailable
17
. RIVET, BLIND
90267-32806-00
Unavailable
22
HANDLE, SEAT
5B4-F4761-00-00
Unavailable
37
ASSIST, GRIP
5B4-F474A-00-00
Unavailable
38
GRIP
5B4-F6241-00-00
Unavailable
39
HANDLE, SEAT
5B4-F4773-00-00
Unavailable
