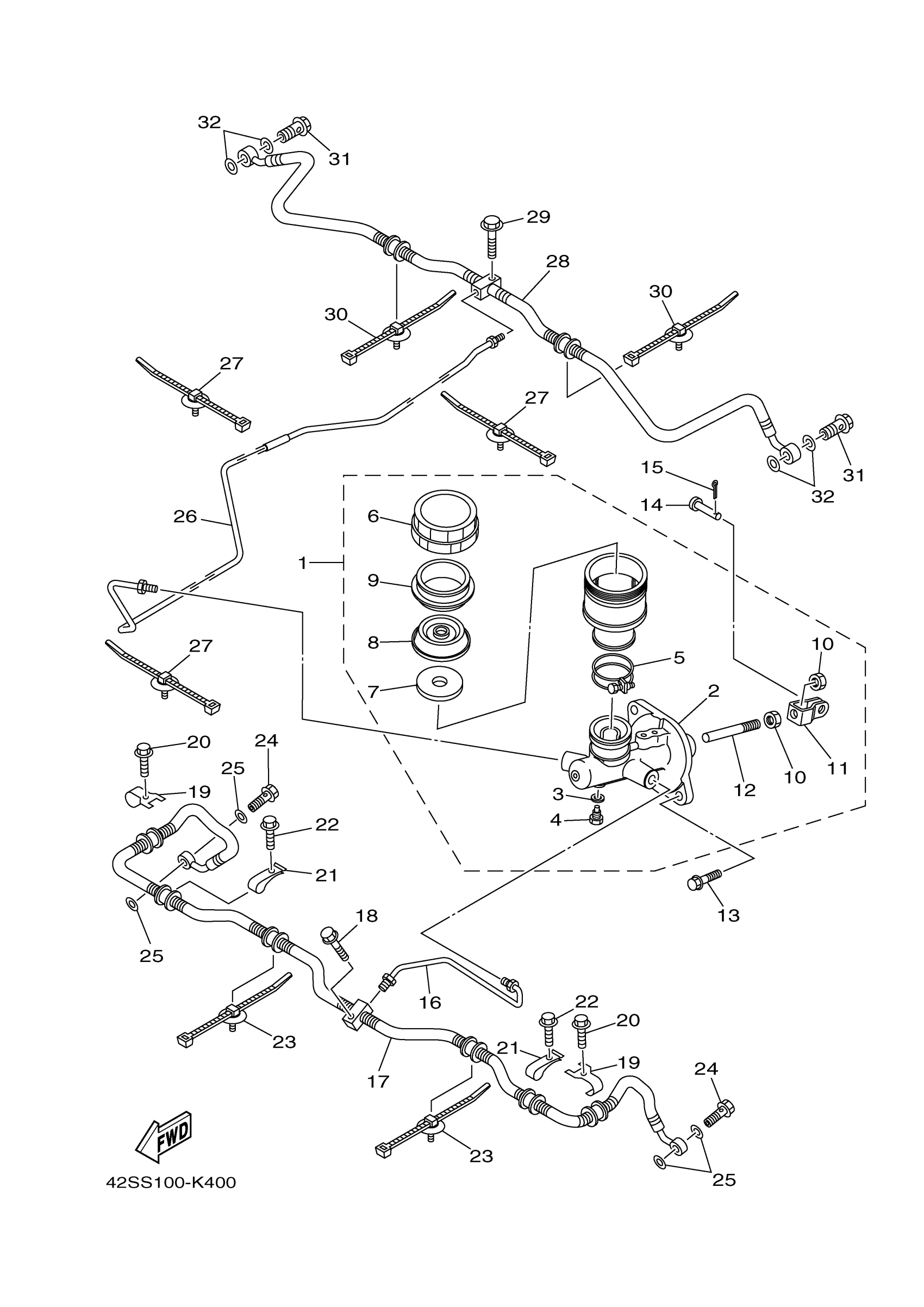

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5B4-2583T-00-00

$274.51

2

CYLINDER KIT, MASTER

5UG-W0042-00-00

$83.94

3

WASHER, OIL BOLT

5UG-25878-00-00

$6.38

4

BOLT, OIL 1

5UG-25877-00-00

$1.32

5

BAND

5UG-25719-00-00

$5.12

6

CAP, RESERVOIR

5UG-25852-00-00

$15.04

7

FLOAT, RESERVOIR

5UG-25853-00-00

$8.57

8

DIAPHRAGM, RESERVOIR

5UG-25854-00-00

$8.70

9

BUSH,DIAPHRAGM

5UG-25855-00-00

$4.57

10

NUT, HEXAGON SMALL

95317-08700-00

$7.05

11

JOINT

2YK-27222-00-00

$19.20

12

PUSH ROD COMP.

5UG-25880-00-00

$10.23

13

BOLT, FLANGE

90105-08129-00

$4.08

14

PIN, CLEVIS

90240-08005-00

$6.17

15

PIN, COTTER

91490-20025-00

$1.31

16

PIPE, BRAKE 2

5B4-F5882-01-00

$24.77

17

HOSE,BRAKE 1

5B4-F5872-10-00

Unavailable

18

BOLT, FLANGE

90105-06833-00

$1.77

19

HOLDER, BRAKE HOSE

5ND-F5875-01-00

$3.46

20

BOLT, FLANGE

95817-06012-00

$1.49

21

BAND

5UG-F3192-01-00

Unavailable

22

BOLT, FLANGE

95817-06016-00

$1.49

23

CLAMP

5B4-F1338-00-00

$2.92

24

BOLT, UNION

90401-10015-00

$9.89

25

WASHER, PLATE(481)

90201-10118-00

$2.91

26

PIPE,BRAKE

5B4-F5871-01-00

Unavailable

27

CLAMP

5B4-F1338-00-00

$2.92

28

HOSE,BRAKE 2

5B4-F5873-10-00

Unavailable

29

BOLT, FLANGE

90105-06833-00

$1.77

30

CLAMP

5B4-F1338-00-00

$2.92

31

BOLT, UNION

90401-10015-00

$9.89

32

WASHER, PLATE(481)

90201-10118-00

$2.91
