Description

Price

1

DISC, BRAKE

5B4-F5711-00-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD

90110-06228-00

$6.25

3

NUT, SELF-LOCKING

95617-06100-00

$2.32

4

PARKING BRAKE ASSY

5B4-25905-03-00

Unavailable

5

PISTON, CALIPER

5B4-25814-10-00

$33.09

6

PUSH ROD COMP.

5B4-25880-00-00

$17.59

7

WASHER, CONICAL SPRING

5B4-2581R-00-00

$6.43

8

CIRCLIP

5B4-25415-00-00

$6.38

9

O-RING

5B4-25976-00-00

$1.85

10

RETAINER

5B4-25913-00-00

$6.94

11

RUBBER, BUSHING

5B4-25975-00-00

$6.43

12

SHAFT L

5B4-25978-00-00

$35.51

13

NUT

5B4-25973-00-00

$50.32

14

BOLT, FITTING

5B4-25833-00-00

$3.03

15

NUT

1UY-25973-51-00

$6.38

16

O-RING

5B4-25976-10-00

$2.48

17

O-RING

5B4-25976-20-00

$4.85

18

BOLT

3JD-25926-00-00

$6.43

19

BOOT, CALIPER

3JD-25917-00-00

$7.51

20

BOOT 2

1UY-25937-51-00

$12.27

21

BOLT

1UY-25926-51-00

$3.34

22

WASHER, SPRING

1UY-25938-51-00

$7.51

23

BRAKE PAD KIT 2

5B4-25806-01-00

$61.29

24

PIN, PAD

5B4-25924-00-00

$10.06

25

SUPPORT, PAD

5B4-25919-00-00

$11.82

26

SPRING, RETURN

5B4-25977-00-00

$6.85

27

NUT

5B4-2585F-00-00

$6.38

28

BOLT, WASHER BASED(1KT)

90105-10402-00

$7.75

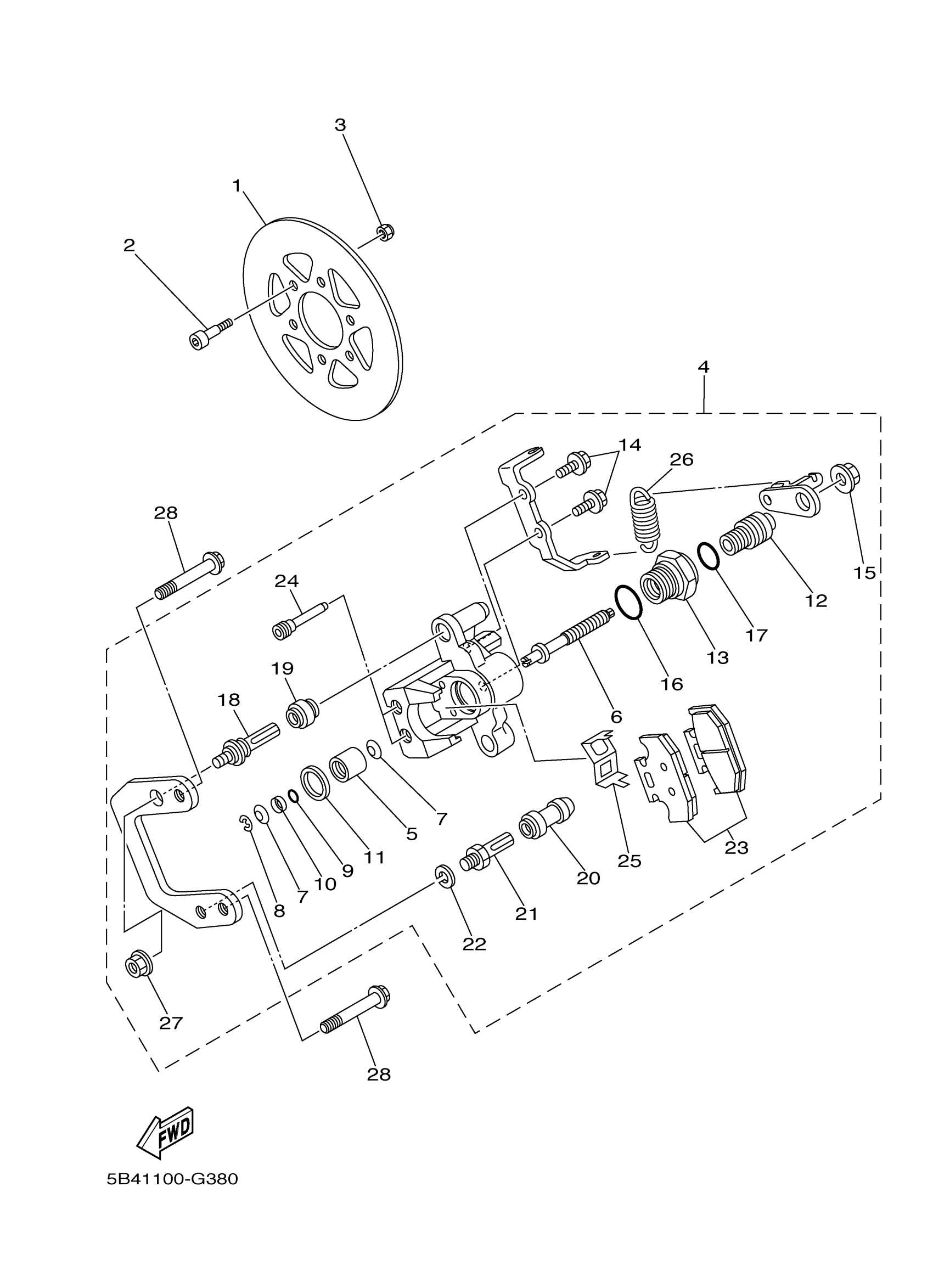

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 REAR BRAKE CALIPER 2 Diagram

DISC, BRAKE

PARKING BRAKE ASSY
