Description

Price

1

HOUSING, BEARING

5B4-17521-00-00

$98.20

2

BEARING(3RR)

93306-30560-00

$71.07

3

PLATE, BEARING COVER

11H-15383-02-00

$11.03

4

SCREW

90149-08013-00

$6.25

5

WASHER, PLATE(6K4)

90201-46M28-00

$10.45

6

SHIM, PINION (0.5T)

5KM-17531-50-00

$6.38

6

SHIM, PINION (0.55T)

5KM-17531-60-00

$3.31

6

SHIM, PINION (0.6T)

5KM-17531-70-00

$3.48

6

SHIM, PINION (0.7T)

5KM-17531-80-00

$3.37

6

SHIM, PINION (0.8T)

5KM-17531-90-00

$3.51

6

SHIM, PINION (0.9T)

5KM-17531-A0-00

$3.51

6

SHIM, PINION (1.0T)

5KM-17531-B0-00

$3.34

7

NUT

90179-22013-00

$23.54

8

BOLT, HEXAGON SOCKET HEAD

90110-08092-00

$5.78

9

PINION SET

5B4-17530-01-00

$611.78

10

HOUSING, BEARING

3B4-17551-00-00

$184.86

11

BEARING(1LX)

93306-37204-00

$44.26

12

NUT

90179-60001-00

$25.54

13

BEARING

93306-20654-00

$66.52

14

OIL SEAL

93102-30010-00

$14.37

15

YOKE, JOINT

5B4-17556-00-00

$114.51

16

WASHER, PLATE

90201-16021-00

$7.49

17

Nut

90179-16006-00

$16.37

18

O-RING (14X)

93210-78544-00

$10.65

19

BOLT, HEXAGON

97017-08030-00

$6.85

20

.. WASHER, PLATE

92990-08600-00

$2.36

21

SHIM, PINION (0.1T)

3B4-17531-00-00

$5.06

21

SHIM, PINION (0.15T)

3B4-17531-10-00

$4.95

21

SHIM, PINION (0.2T)

3B4-17531-20-00

$4.98

21

SHIM, PINION (0.3T)

3B4-17531-30-00

$5.00

21

SHIM, PINION (0.4T)

3B4-17531-40-00

$4.91

21

SHIM, PINION (0.5T)

3B4-17531-50-00

$5.06

21

SHIM, PINION (0.6T)

3B4-17531-60-00

$5.00

22

MIDDLE DRIVEN SHAFT ASSY

5B4-1755A-01-00

$237.03

23

COUPLING

3B4-17832-10-00

$79.38

24

WASHER, PLATE

90201-16021-00

$7.49

25

Nut

90179-16006-00

$16.37

26

NUT(4KB)

90179-55660-00

$49.43

27

OIL SEAL

93102-30010-00

$14.37

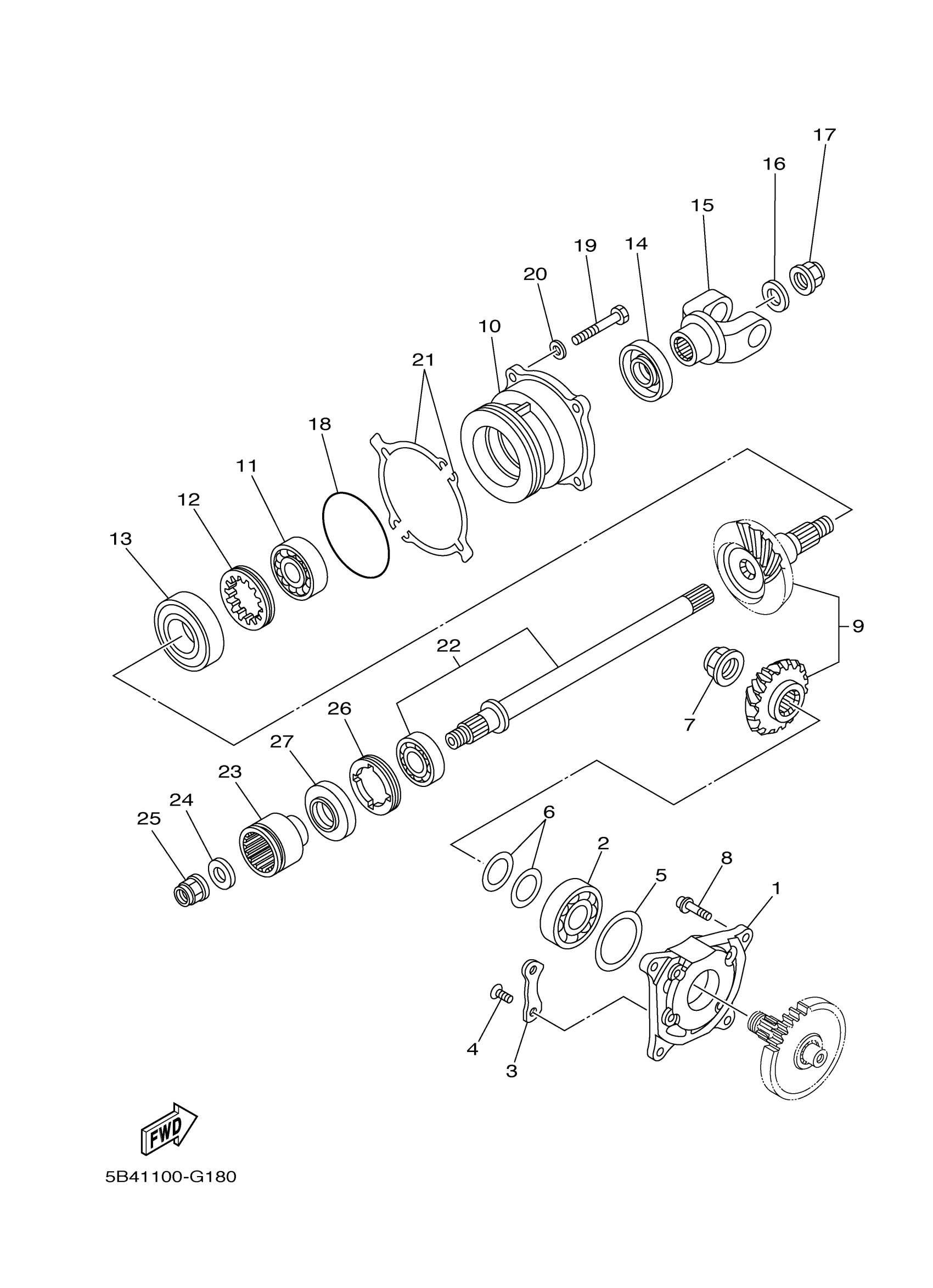

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 MIDDLE DRIVE GEAR Diagram
