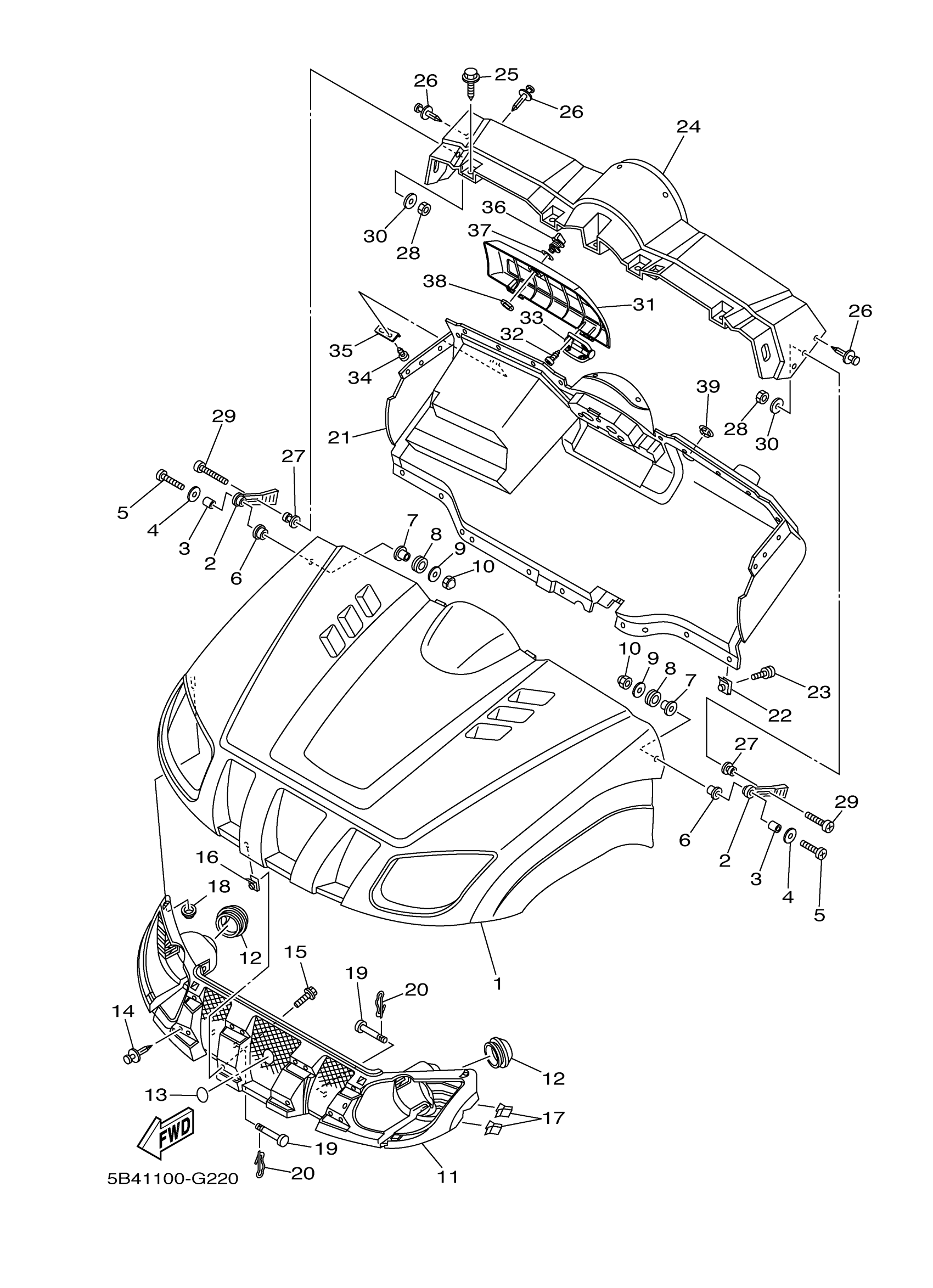

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5UG-F1510-M0-00

Unavailable

2

BODY, LATCH 1

8V0-77171-00-00

$18.37

3

COLLAR (420)

90387-06241-00

$6.18

4

WASHER, PLATE

90201-06078-00

$5.48

5

SCREW, BINDING

98907-06035-00

$7.48

6

C0LLAR

90387-062M9-00

$6.60

7

COLLAR (6G1)

90387-06M52-00

$6.31

8

GROMMET(2GH)

90480-12475-00

$6.68

9

WASHER, PLATE

90201-06078-00

$5.48

10

NUT (J17)

95380-06800-00

$6.74

11

GRILL, FRONT

5UG-F8309-01-00

$275.78

12

CAP

5GH-28349-00-00

$7.57

13

TUNING FORK MARK

5FU-F175B-01-00

$13.36

14

RIVET

90269-06804-00

$1.19

15

BOLT, WITH WASHER

90119-05023-00

$6.68

16

NUT, SPRING

90183-050A0-00

$4.45

17

CLIP

5UG-F3447-00-00

$1.86

18

NUT, SPRING

90183-08800-00

$1.28

19

PIN,CLEVIS

90240-13802-00

Unavailable

20

CLIP(3YF)

90468-16191-00

$6.17

21

PANEL, FRONT

5UG-F3391-03-00

Unavailable

22

NUT, SPRING

90183-051A1-00

$2.63

23

BOLT, WITH WASHER

90119-05023-00

$6.68

24

PANEL, OUTER 2

5UG-F3312-M0-00

Unavailable

25

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.23

26

RIVET

90269-06800-00

$1.45

27

. HOLDER, LATCH

8M6-77175-00-00

$12.72

28

NUT, NYLON

95707-06300-00

$3.20

29

SCREW, BINDING

98907-06035-00

$7.48

30

WASHER, PLATE

90201-06081-00

$6.18

31

LID, GLOVE BOX

5UG-K7736-00-00

$30.78

32

SCREW, TAPPING

90164-04800-00

$0.45

33

HINGE

5UG-F1797-00-00

Unavailable

34

SCREW, TAPPING (GLOVE BOX)

90164-05800-00

$1.91

35

BRACKET,COVER

5UG-F139T-10-00

$4.89

36

LOCK ASSY

5UG-F16A0-00-00

$39.55

37

GASKET

5UG-F3139-00-00

$1.68

38

NUT

5UG-F1494-00-00

$3.89

39

PLUG

5B4-F2417-00-00

Unavailable
