Description

Price

1

CROSS JOINT COMP. 2

2HC-46107-00-00

$175.02

2

BEARING

93399-99948-00

$47.47

3

CIRCLIP (4X7)

93440-20088-00

$5.10

4

SPIDER

5GT-46187-00-00

$93.45

5

BEARING

93399-99948-00

$47.47

6

CIRCLIP (4X7)

93440-20088-00

$5.10

7

FRONT AXLE GEAR CASE COMP.

1RB-46160-00-00

Unavailable

8

HOUSING, BEARING 2

5B4-46162-01-00

$390.34

9

HOUSING, SHAFT DRIVE 2

5B4-46161-00-00

$201.40

10

PINION, DRIVE 2

1XD-46141-00-00

$234.37

11

YOKE, JOINT 2

4S1-46146-01-00

$157.22

12

LIMITED SLIP DIFF. ASSY

1XD-46470-01-00

$882.99

13

SHIM, RING GEAR (0.1T)

3B4-46117-00-00

$8.15

13

SHIM, RING GEAR (0.2T)

3B4-46117-10-00

$13.48

13

SHIM, RING GEAR (0.3T)

3B4-46117-20-00

$9.06

13

SHIM, RING GEAR (0.4T)

3B4-46117-30-00

$8.15

14

BEARING(2HR)

93306-00612-00

$42.56

15

BEARING 1

3B4-46164-00-00

$74.44

16

BEARING 3

3B4-46166-00-00

$22.15

17

O-RING 1

3B4-46134-00-00

$15.83

18

O-RING 2

3B4-46135-00-00

$4.74

19

OIL SEAL

93105-46001-00

$18.74

20

SEAL,OIL 1

3B4-46163-00-00

$16.86

21

WASHER

3B4-47359-00-00

$6.80

22

SERVO MOTOR COMP

1HP-4616A-00-00

$458.30

23

NUT 1

4WV-46145-11-00

$9.60

24

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

$3.65

25

TUBE

5GH-46293-00-00

$6.31

26

GASKET

90430-10003-00

$7.51

27

BOLT, FLANGE

95812-06014-00

$5.45

28

BOLT, FLANGE

95817-08040-00

$5.43

29

RING,HOLE SNAP 1

3B4-46142-00-00

$10.40

30

CROSS JOINT COMP. 2

2HC-46107-00-00

$175.02

31

BEARING

93399-99948-00

$47.47

32

CIRCLIP (4X7)

93440-20088-00

$5.10

33

SPIDER

5GT-46187-00-00

$93.45

34

BEARING

93399-99948-00

$47.47

35

CIRCLIP (4X7)

93440-20088-00

$5.10

36

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

37

GASKET

214-11198-01-00

$2.66

38

HOSE (L1700)

90445-070G6-00

$35.08

39

CLIP (1J7)

90467-07029-00

$1.92

40

SHAFT DRIVE ASSY

5B4-46171-00-00

$466.42

41

CIRCLIP(1EY)

99009-19400-00

$6.17

42

WASHER PLATE 132172160000

90201-20266-00

$8.22

43

SPRING, COMPRESSION

90501-235L9-00

$10.68

44

SEAL 1

5GT-46136-00-00

$15.04

45

SEAL 2

5GT-46137-00-00

$23.20

46

BOLT, FLANGE

95817-10030-00

$6.17

47

WASHER, PLATE

90201-10035-00

$3.56

48

BOLT, FLANGE

90105-10230-00

$5.98

49

NUT, SELF-LOCKING

90185-10011-00

$3.92

50

WASHER, PLATE

90201-10035-00

$3.56

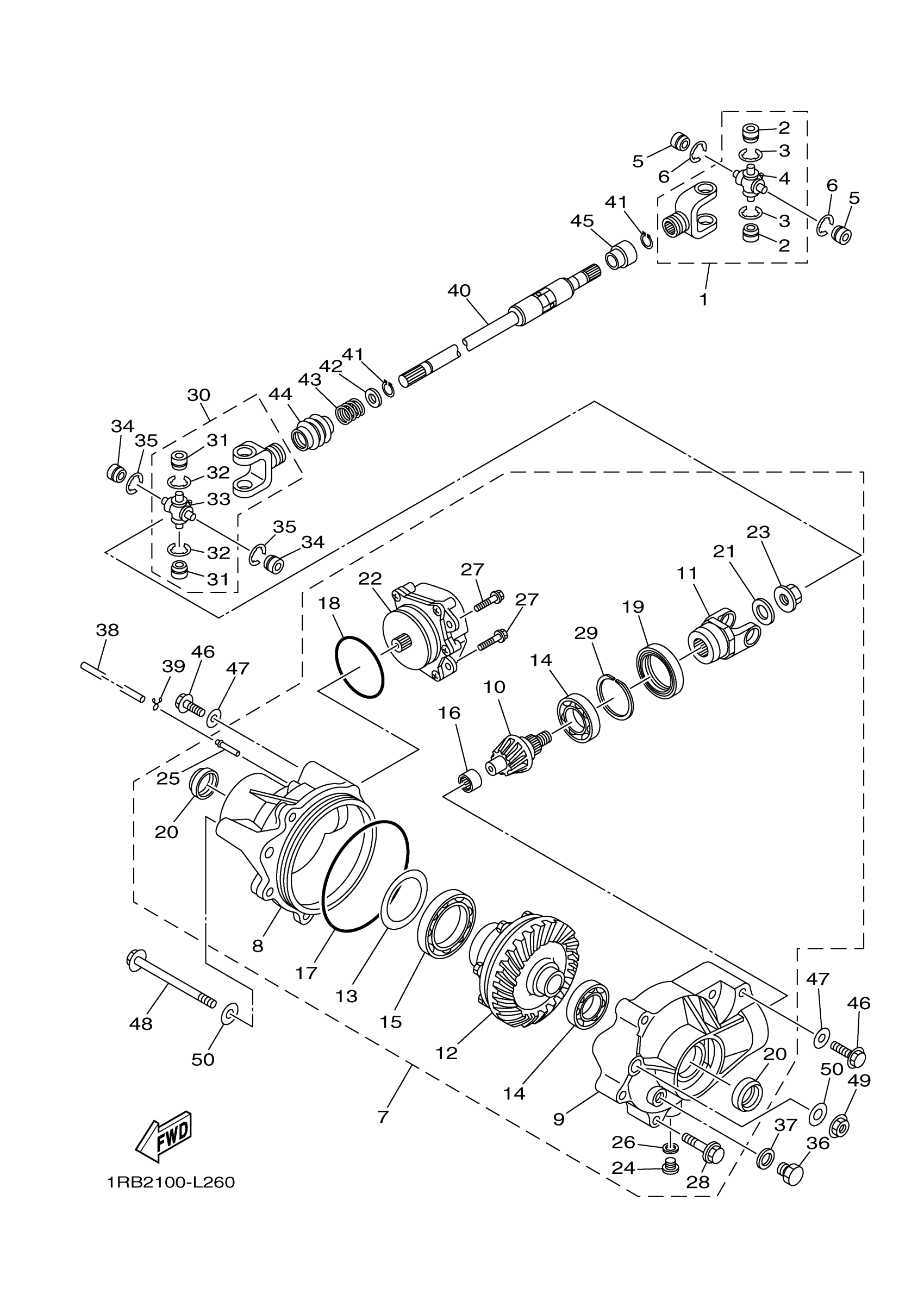

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 FRONT DIFFERENTIAL Diagram

FRONT AXLE GEAR CASE COMP.
