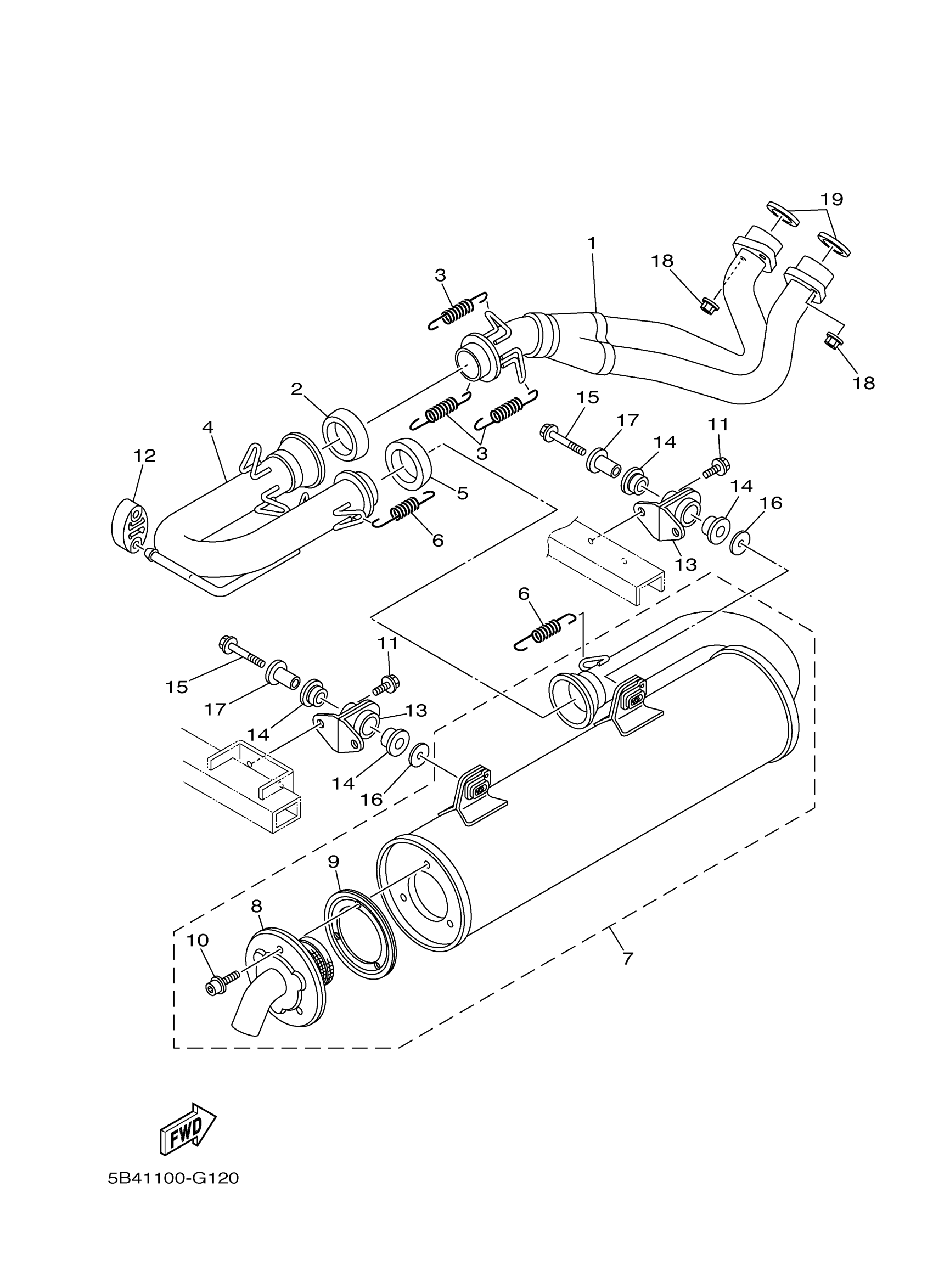

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5B4-E4611-00-00

Unavailable

2

GASKET, MUFFLER

3B4-14714-00-00

$25.37

3

SPRING, TENSION

90506-26010-00

$9.89

4

PIPE, EXHAUST 2

5B4-E4621-00-00

Unavailable

5

GASKET, MUFFLER

3B4-14714-00-00

$25.37

6

SPRING, TENSION

90506-26010-00

$9.89

7

MUFFLER ASSY 1

5B4-E4710-00-00

Unavailable

8

. PIPE, OUTLET

5B4-E4752-00-00

$149.29

9

. GASKET, SILENCER

5B4-E4755-00-00

$14.40

10

. BOLT, MUFFLER

5B4-E4719-00-00

Unavailable

11

BOLT, FLANGE

95817-08014-00

$1.94

12

DAMPER, MUFFLER

5UG-14737-00-00

$14.25

13

MUFF. STAY SUB-KUM

5B4-F1440-00-00

$29.26

14

DAMPER, FOOTREST 2

5VY-27424-00-00

$18.89

15

BOLT, FLANGE

95814-08045-00

$3.95

16

WASHER, PLATE

90201-08034-00

$6.26

17

COLLAR

90387-08039-00

$8.77

18

NUT,FLANGE(J10)

95702-08500-00

$0.80

19

GASKET, EXHAUST PIPE

3YF-14613-01-00

$11.58
