Description

Price

1

REAR AXLE GEAR CASE ASSY

1RB-46101-00-00

$1,551.99

2

HOUSING, DRIVE SHAFT

1RB-46151-00-00

$257.77

3

BEARING ASSY

5KM-46102-00-00

$61.22

4

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$74.44

5

RING GEAR SET

5UG-Y4612-00-00

$560.31

6

BEARING

93306-30574-00

$64.14

7

BOSS, 1

5UG-46212-00-00

$175.02

8

OIL SEAL

93102-35009-00

$19.37

9

NUT(59V)

90179-65305-00

$37.15

10

O-RING

93210-626A7-00

$11.00

11

WASHER, PLATE

90201-12029-00

$6.17

12

NUT (4X7)

90179-12325-00

$5.78

13

HOUSING, PINION BEARING

5UG-46144-00-00

$131.85

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$14.22

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$14.22

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

$14.12

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

$14.12

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

$14.04

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

$14.04

15

. BOLT, WITH WASHER

90119-08125-00

$3.45

16

WASHER, THRUST

24W-46118-00-12

$15.98

16

WASHER, THRUST

24W-46118-00-14

$14.58

16

WASHER, THRUST

24W-46118-00-16

$14.71

16

WASHER, THRUST

24W-46118-00-18

$14.71

16

WASHER, THRUST

24W-46118-00-20

$13.43

17

PLUG, STRAIGHT SCREW(4GY)

90340-20143-00

$34.68

18

O-RING (646)

93210-19123-00

$6.91

19

BREATHER

5UG-15371-00-00

$33.79

20

HOUSING, BEARING

5KM-46152-00-00

$88.75

21

STOPPER, RING GEAR

2HR-46156-00-00

$23.00

22

WASHER, PLATE 3411117500

90201-08087-00

$3.13

23

NUT,FLANGE(J10)

95702-08500-00

$0.80

24

OIL SEAL

93102-65008-00

$35.63

25

BEARING

93316-01701-00

$157.22

26

O-RING(59V)

93211-54698-00

$17.71

27

SHIM, RING GEAR

22U-46117-00-25

$3.63

27

SHIM, RING GEAR

22U-46117-00-30

$3.88

27

SHIM, RING GEAR

22U-46117-00-40

$3.63

28

BOLT, HEXAGON

97017-08025-00

$7.46

29

.. WASHER, PLATE

92990-08600-00

$2.36

30

. BOLT, FLANGE

95812-10025-00

$2.45

31

BOLT, FLANGE

95022-10016-00

$6.28

32

GASKET (5R6)

90430-10171-00

$3.17

33

SPRING, COMPRESSION (400)

90501-20361-00

$10.92

34

SHAFT, DRIVE

5B4-G6172-00-00

$147.30

35

CIRCLIP(1EY)

99009-19400-00

$6.17

36

COUPLING

5KM-46126-00-00

$57.01

37

CIRCLIP (537)

93410-22039-00

$6.17

38

DAMPER

5KM-46559-00-00

$6.72

39

SEAL 2

5KM-46137-00-00

$14.62

40

SEAL 1

5KM-46136-00-00

$7.51

41

HOSE (L1700)

90445-070G6-00

$35.08

42

CLIP (1J7)

90467-07029-00

$1.92

43

CLAMP

90464-12830-00

$1.02

44

CLAMP

90464-19815-00

$1.60

45

CLAMP

90464-12830-00

$1.02

46

BOLT, FLANGE

90105-12016-00

$11.26

47

NUT, SELF-LOCKING

90185-12002-00

$10.05

48

YBS66-12 WASHER,PLAIN

92990-12200-00

$6.17

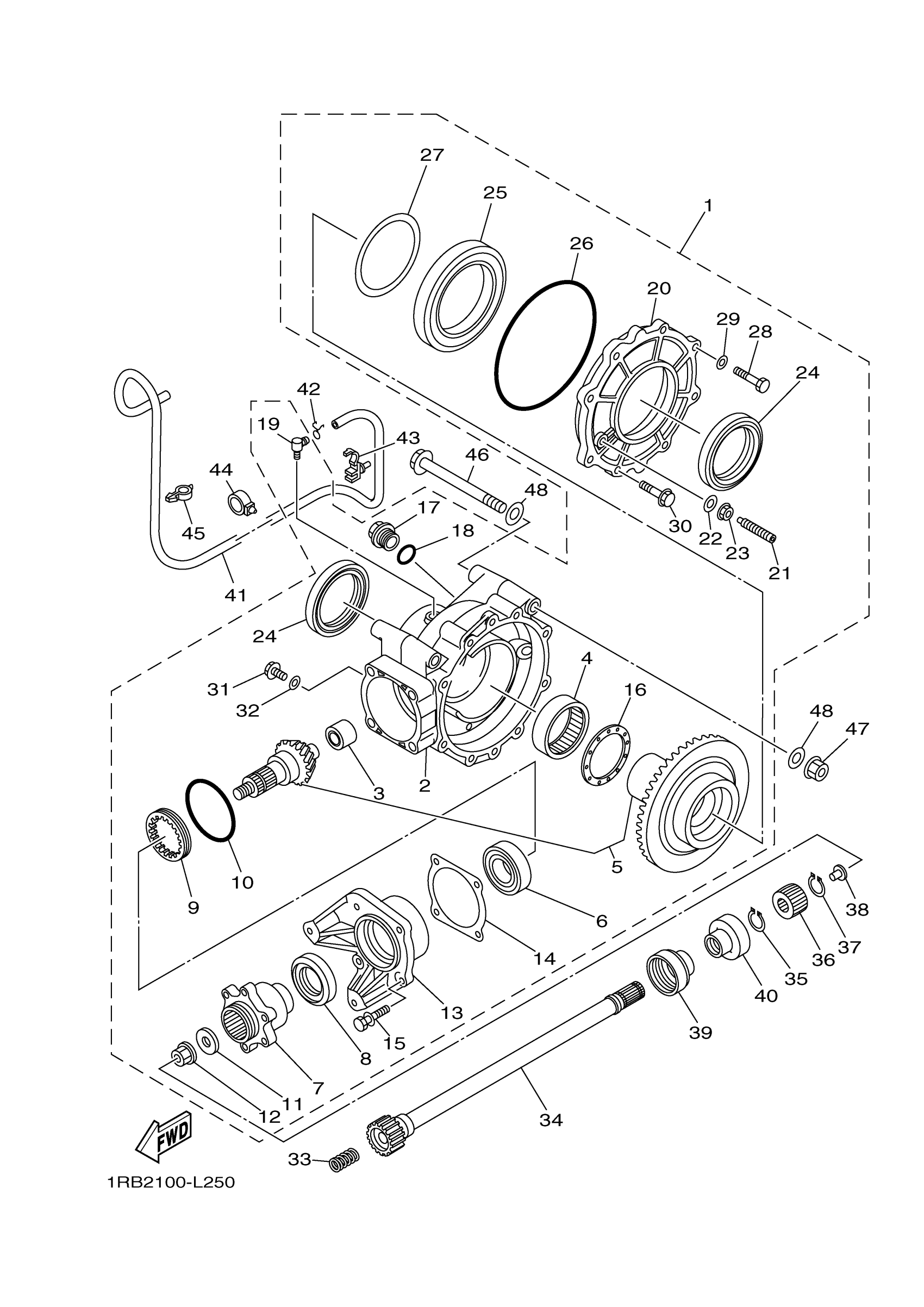

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 DRIVE SHAFT Diagram
