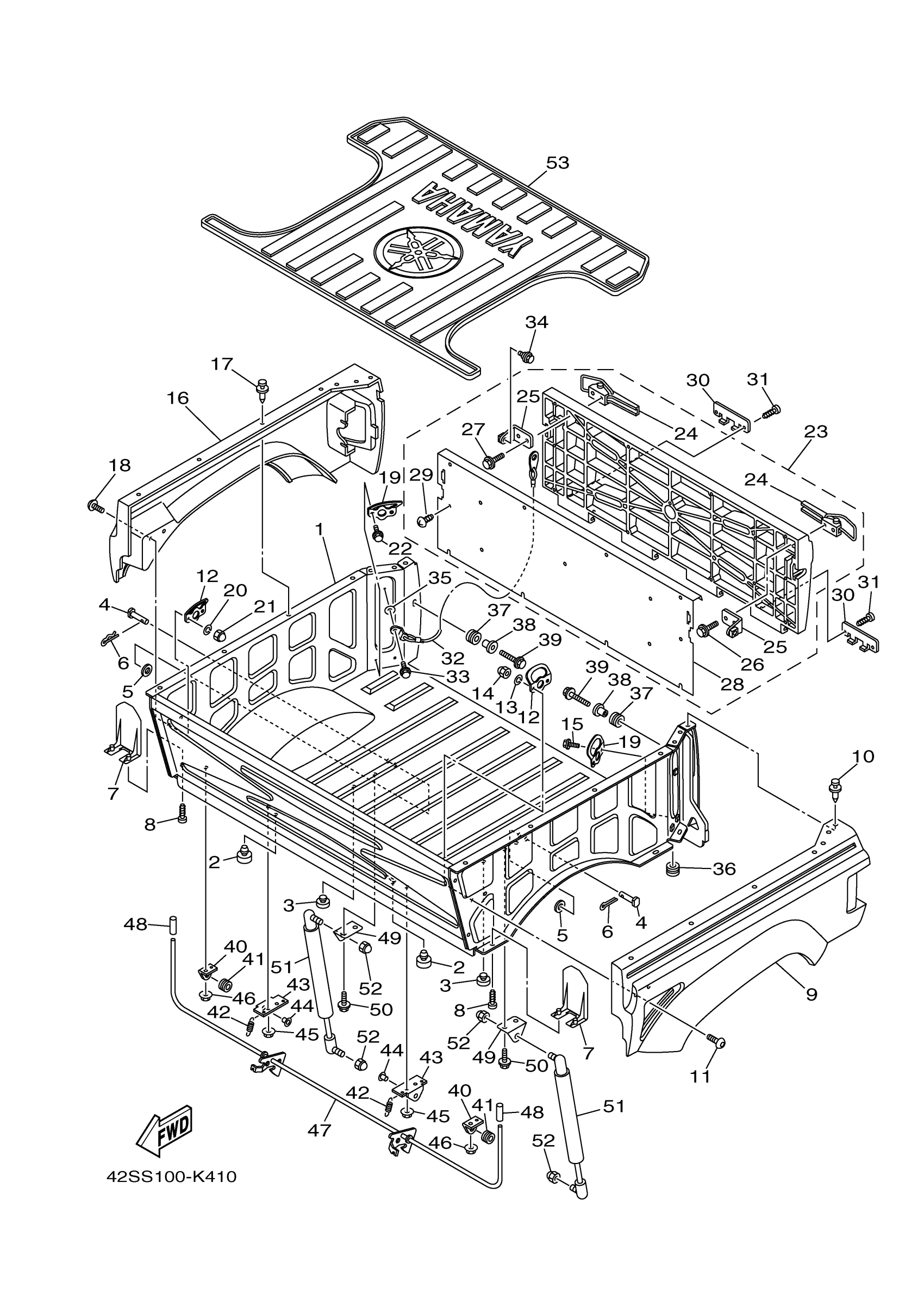

Yamaha YXR7FHD (700 HUNTER 1RBJ) 1RBJ 2013 CARRIER Diagram

#

Description
Price

1

CARRIER BOX ASSY

2P5-F4850-02-00

Unavailable

2

STOPPER, MAIN STAND

116-27114-00-00

$10.21

3

STOPPER, MAIN STAND

128-27114-00-00

$6.62

4

PIN, CLEVIS

90240-12002-00

$9.29

5

WASHER, PLATE

90201-12049-00

$5.23

6

PIN, COTTER

91401-30025-00

$6.18

7

GUARD, LEVER

2P5-F6123-00-00

Unavailable

8

SCREW, TAPPING

90167-06800-00

$0.74

9

PANEL, REAR FENDER 3

5UG-K8193-M0-00

Unavailable

10

RIVET

90269-06800-00

$1.45

11

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

12

HOOK (TIE DOWN HOOK RHINO BED)

5UG-F4867-00-00

$13.06

13

WASHER, SPRING

92995-06100-00

$2.99

14

NUT (J17)

95380-06800-00

$6.74

15

BOLT, FLANGE

95817-06016-00

$1.49

16

PANEL, REAR FENDER 4

5UG-K8194-M0-00

Unavailable

17

RIVET

90269-06800-00

$1.45

18

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

19

HOOK (TIE DOWN HOOK RHINO BED)

5UG-F4867-00-00

$13.06

20

WASHER, SPRING

92995-06100-00

$2.99

21

NUT (J17)

95380-06800-00

$6.74

22

BOLT, FLANGE

95817-06016-00

$1.49

23

REAR STORAGE LID C

5UG-K810N-21-00

Unavailable

24

LATCH

5UG-F389E-00-00

$22.96

25

BRACKET,TRUNK STOP

5UG-F849R-00-00

$13.95

26

BOLT, FLANGE

95817-06025-00

$1.46

27

BOLT, FLANGE

95817-06025-00

$1.46

28

. CASE

5UG-K8365-00-00

Unavailable

29

SCREW, TAPPING(53L)

90167-05030-00

$6.69

30

COVER, HINGE

5UG-F4669-00-00

$5.93

31

SCREW, TAPPING(53L)

90167-05030-00

$6.69

32

HOLDER, CABLE

5UG-K7195-10-00

$25.57

33

BOLT

90109-06212-00

$6.31

34

BOLT

90109-06212-00

$6.31

35

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

36

GROMMET(2GH)

90480-12475-00

$6.68

37

GROMMET (4V1)

90480-18290-00

$7.02

38

COLLAR (36R)

90387-066J1-00

$6.86

39

BOLT, FLANGE

95817-06025-00

$1.46

40

HOLDER, LATCH

2P5-K7175-00-00

Unavailable

41

GROMMET(2GH)

90480-12475-00

$6.68

42

SPRING, TENSION(3JN)

90506-16451-00

$5.62

43

PLATE 1

2P5-K7185-00-00

Unavailable

44

BUSH, RUBBER 1

2P5-K7515-00-00

$1.11

45

NUT,FLANGE(J10)

95702-08500-00

$0.80

46

NUT, FLANGE

95702-06500-00

$1.98

47

LATCH ASSY

2P5-K7180-00-00

Unavailable

48

CAP, PROTECTOR END 4

5UG-K818M-00-00

$1.78

49

BRACKET, DAMPER

5UG-F1798-11-00

Unavailable

50

BOLT, FLANGE

90105-06831-00

$1.20

51

DAMPER 1

5UG-F8415-00-00

$69.44

52

NUT, SELF-LOCKING

95602-08200-00

$2.77

53

MAT

5UG-F483J-00-00

Unavailable
