Description

Price

1

PIPE 1

5B4-12481-00-00

$39.42

2

BOLT,SOCKET

91317-06012-00

$6.17

3

O-RING

93210-21190-00

$5.59

4

HOSE 2

5B4-12577-00-00

$36.40

5

HOSE CLAMP ASSY

90450-32015-00

$15.23

6

JOINT 1

5KM-12469-00-00

$49.09

7

BOLT,SOCKET HEAD

91314-06020-00

$2.05

8

O-RING

93210-33006-00

$4.85

9

IMPELLER SHAFT ASSY

3B4-12450-00-00

$46.40

10

COVER, HOUSING

5B4-12422-00-00

$69.69

11

BOLT, FLANGE

95022-06030-00

$1.40

12

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

13

PIPE, DRAIN

5D3-1243K-00-00

$7.65

14

OIL SEAL (J10)

93101-10090-00

$6.17

15

SEAL, MECHANICAL

11H-12438-10-00

$50.88

16

CIRCLIP(10W)

99009-10400-00

$3.91

17

GASKET, HOUSING COVER 2

3B4-12428-00-00

$10.29

18

BOLT, FLANGE

95022-06010-00

$5.45

19

GASKET 256113960000

90430-06014-00

$7.23

20

HOSE (L1050)

90445-072G8-00

$23.46

21

CLIP(42X)

90467-07093-00

$1.72

22

PIN,DOWEL (603)

93604-10011-00

$5.10

23

BOLT, FLANGE

95022-06050-00

$1.38

24

BOLT, FLANGE

95022-06050-00

$1.38

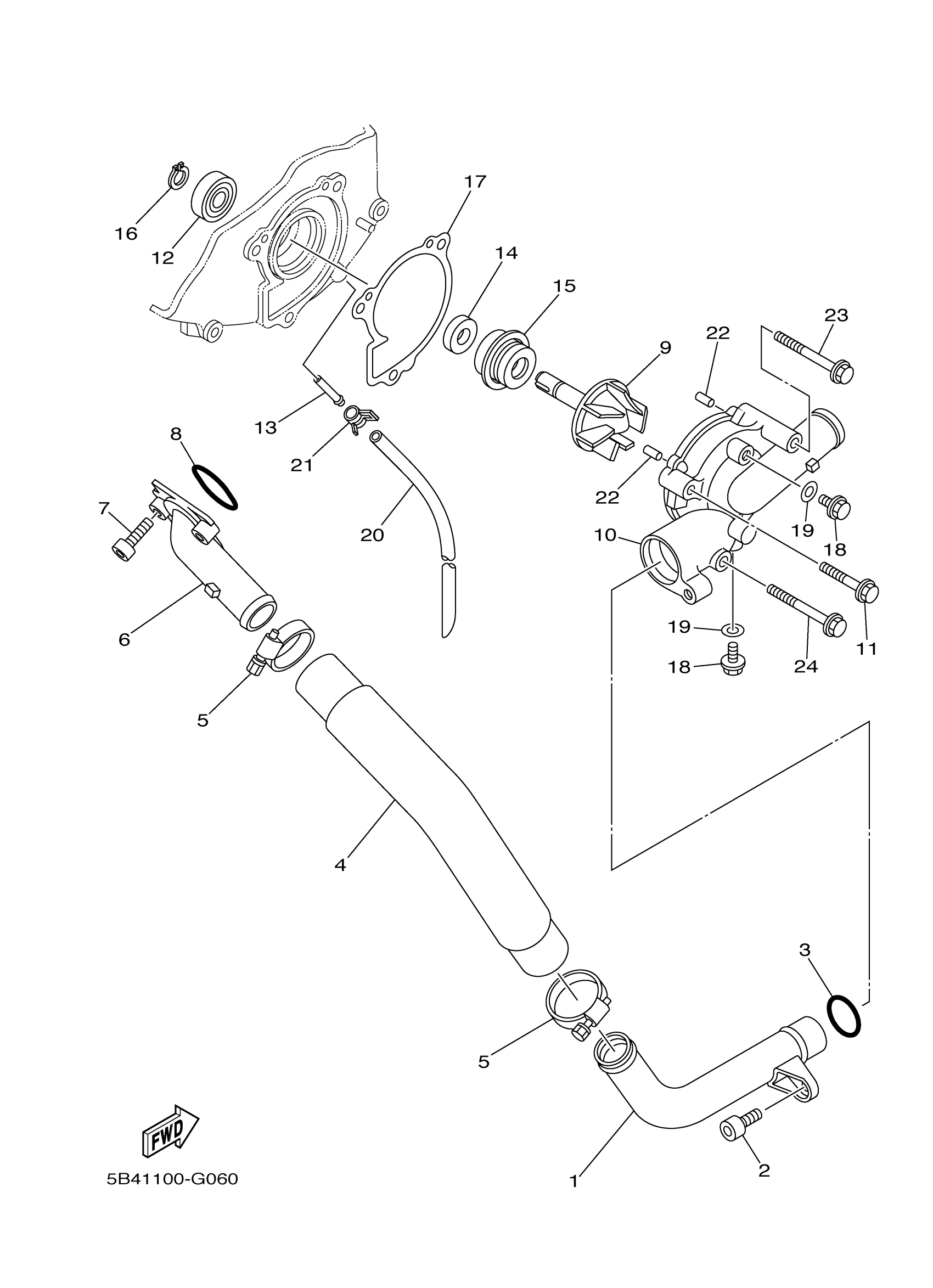

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 WATER PUMP Diagram
