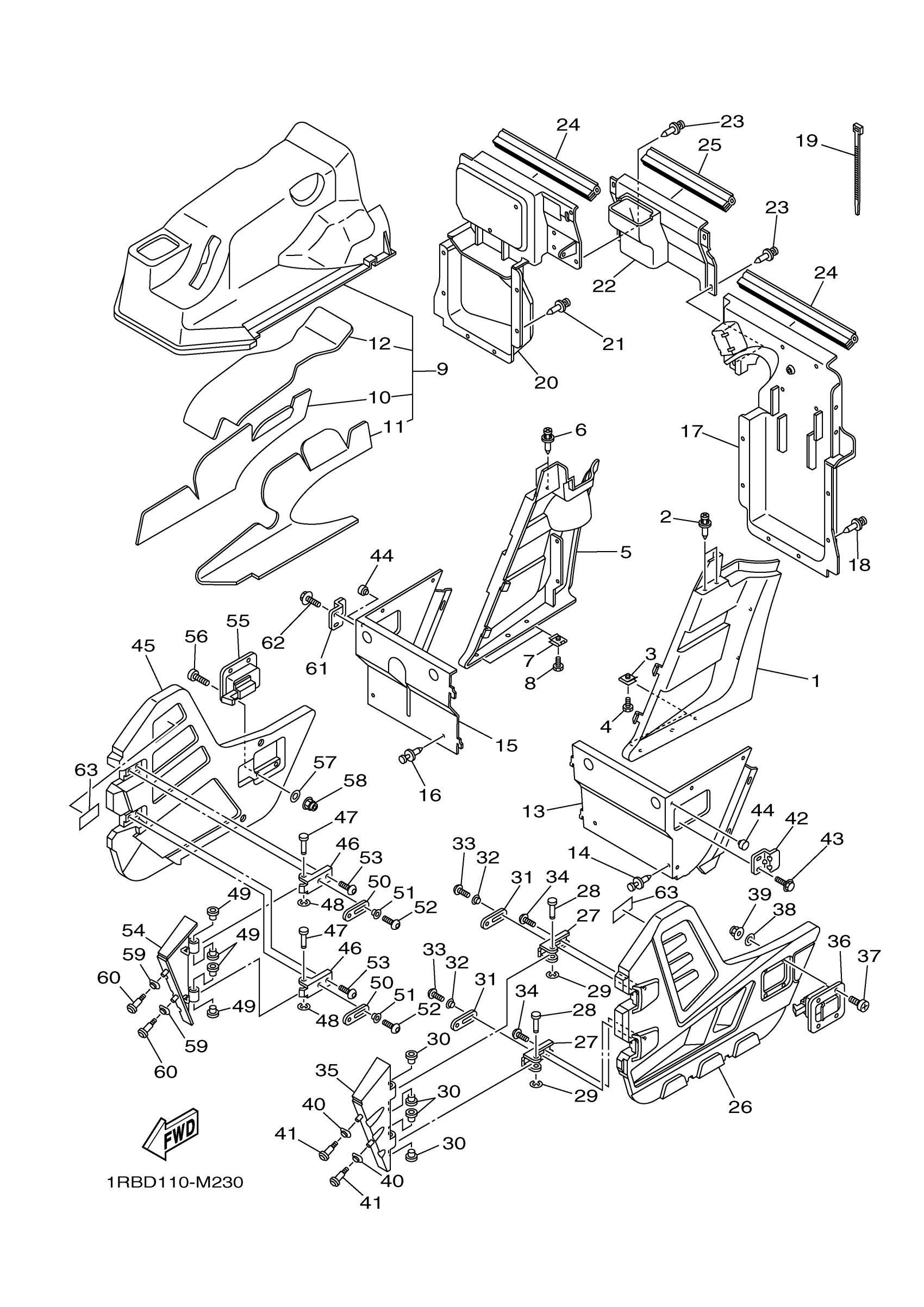

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 SIDE COVER Diagram

#

Description
Price

1

SIDE PANEL COMP.1

5UG-K810F-01-00

Unavailable

2

RIVET

90269-06800-00

$1.45

3

NUT, SPRING

90183-05008-00

$6.68

4

BOLT, WITH WASHER

90119-05023-00

$6.68

5

SIDE PANEL COMP.2

5UG-K810G-01-00

Unavailable

6

RIVET

90269-06800-00

$1.45

7

NUT, SPRING

90183-05008-00

$6.68

8

BOLT, WITH WASHER

90119-05023-00

$6.68

9

COVER ASSY

5B4-F8108-00-00

$309.45

10

. SEAL 1

5B4-F2873-00-00

Unavailable

11

. SEAL 3

5B4-F2875-00-00

Unavailable

12

. SEAL 6

5B4-F2878-00-00

Unavailable

13

SUPPORT, SIDE PANEL

5UG-F254J-11-00

Unavailable

14

RIVET

90269-06800-00

$1.45

15

SUPPORT, SIDE PANEL 2

5UG-F254K-11-00

Unavailable

16

RIVET

90269-06800-00

$1.45

17

PROTECTOR, SIDE 1

5B4-K7561-00-00

Unavailable

18

RIVET

90269-06800-00

$1.45

19

CLAMP

90464-48800-00

$3.54

20

PROTECTOR, FUEL TANK

5B4-F4141-00-00

$35.63

21

RIVET

90269-06800-00

$1.45

22

PLATE, CONNECTING

5B4-F4113-10-00

Unavailable

23

RIVET

90269-06800-00

$1.45

24

SEAL 4

5B4-F41A4-00-00

Unavailable

25

SEAL 5

5B4-F41A5-00-00

Unavailable

26

COVER, SIDE 1

5B4-F2864-00-00

Unavailable

27

HINGE

5B4-F1797-00-00

$4.35

28

PIN 1

5B4-F146A-00-00

$7.35

29

CLIP

5B4-F3447-00-00

$1.43

30

BUSH, RUBBER 1

2P5-K7515-00-00

$1.11

31

BAND, RUBBER

5B4-F2929-01-00

$3.49

32

COLLAR

90387-06089-00

$6.06

33

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.97

34

BOLT 2

5B4-F1722-00-00

$1.17

35

HINGE 1

5B4-F197J-00-00

Unavailable

36

HANDLE, LATCH

5B4-F389F-00-00

Unavailable

37

SCREW, BINDING

98907-05020-00

$6.18

38

WASHER, PLATE

90201-05039-00

$5.19

39

NUT, S/L FLANGE

95607-05200-00

$6.86

40

WASHER 2

5UG-K7526-00-00

$4.25

41

BOLT

5B4-K7519-00-00

Unavailable

42

LATCH

5B4-F389E-00-00

$4.66

43

BOLT

5B4-F1738-00-00

Unavailable

44

PAD, BATTERY

5TG-82121-10-00

$3.58

45

COVER, SIDE 2

5B4-F2868-00-00

Unavailable

46

HINGE

5B4-F1797-00-00

$4.35

47

PIN 1

5B4-F146A-00-00

$7.35

48

CLIP

5B4-F3447-00-00

$1.43

49

BUSH, RUBBER 1

2P5-K7515-00-00

$1.11

50

BAND, RUBBER

5B4-F2929-01-00

$3.49

51

COLLAR

90387-06089-00

$6.06

52

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.97

53

BOLT 2

5B4-F1722-00-00

$1.17

54

HINGE 2

5B4-F197K-00-00

$45.02

55

HANDLE, LATCH

5B4-F389F-00-00

Unavailable

56

SCREW, BINDING

98907-05020-00

$6.18

57

WASHER, PLATE

90201-05039-00

$5.19

58

NUT, S/L FLANGE

95607-05200-00

$6.86

59

WASHER 2

5UG-K7526-00-00

$4.25

60

BOLT

5B4-K7519-00-00

Unavailable

61

LATCH

5B4-F389E-00-00

$4.66

62

BOLT

5B4-F1738-00-00

Unavailable

63

LABEL WARNING

5B4-K8483-00-00

$3.25
