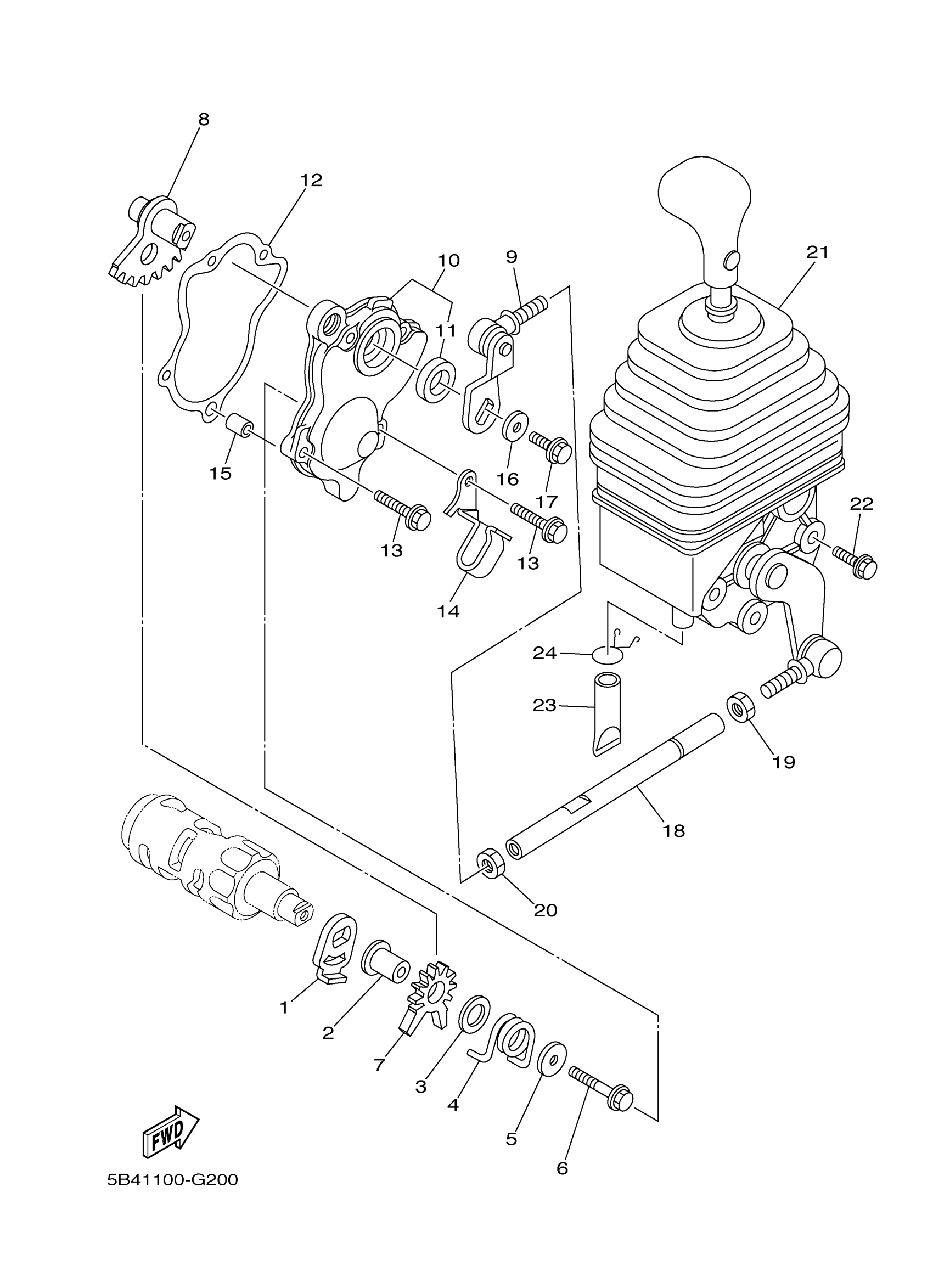

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$19.46

2

COLLAR

90387-0613B-00

$7.26

3

WASHER, PLATE

90201-13013-00

$6.29

4

SPRING, TORSION(1YW)

90508-35764-00

$4.20

5

WASHER, PLATE

90201-06036-00

$6.26

6

95812-06035

95812-06035-00

$5.35

7

LEVER

5KM-18191-00-00

$22.14

8

SHIFT SHAFT COMP.

3B4-18103-11-00

$52.46

9

SHIFT GUIDE COMP.

5B4-18104-00-00

$64.83

10

SHIFTER BRKT. ASSY

3B4-18380-00-00

$103.31

11

OIL SEAL (3X3)

93102-15212-00

$7.34

12

GASKET

3B4-18146-00-00

$5.93

13

BOLT, FLANGE

95022-06020-00

$3.32

14

CLAMP

90462-10048-00

$11.42

15

PIN, DOWEL

99530-08012-00

$6.62

16

WASHER, PLATE

90201-06036-00

$6.26

17

BOLT, FLANGE

90105-06175-00

$2.54

18

ROD, SHIFT

5B4-18115-00-00

Unavailable

19

NUT(1KT)

90170-08358-00

$6.68

20

. NUT

95380-08700-00

$2.89

21

SHIFTER ASSY

5UG-18300-12-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

$3.98

23

PIPE, DRAIN

4GY-1443E-00-00

$4.66

24

CLIP

90467-150A2-00

$6.25
