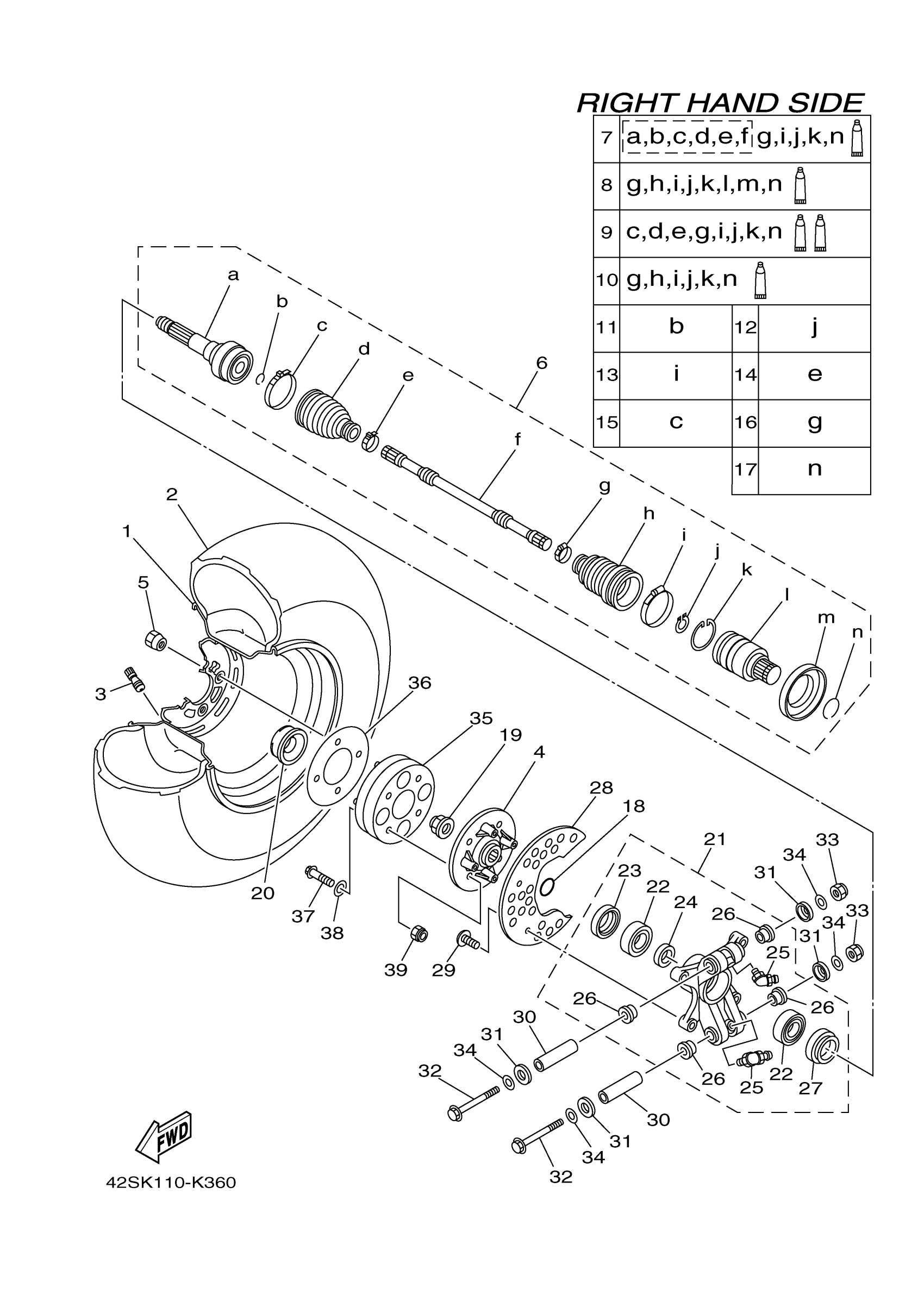

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 REAR WHEEL 2 Diagram

#

Description
Price

1

REAR WHEEL COMP.

5UG-F5390-00-00

Unavailable

2

TIRE (25X10.00-12 M952Y TL)

94110-12805-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

HUB, REAR

5B4-F5311-00-00

$95.82

5

NUT

90179-10022-00

$3.25

6

SHAFT, REAR DRIVE

5B4-F53B0-00-00

Unavailable

7

. BALL JOINT SET

5B4-F530U-00-00

Unavailable

8

DOUBLE OFF SET JOINT RIGHT

5UG-F530W-02-00

Unavailable

9

BOOT SET (BALL JOINT)

5B4-F530X-00-00

$94.24

10

BOOT SET (DOUBLE OFF)

5UG-F530Y-01-00

Unavailable

11

CIRCLIP

5UG-F512H-00-00

$7.09

12

. SNAP RING

5UG-F512J-00-00

$6.78

13

. BOOT BAND(DOUBLE OFFSETJOINT)

5UG-F511H-00-00

Unavailable

14

. BOOT BAND (SMALL)

5B4-F512G-00-00

$13.14

15

. BOOT BAND (BALL JOINT)

5B4-F511G-00-00

$13.14

16

. BOOT BAND (SMALL)

5UG-F510U-00-00

$10.78

17

CLIP, SPRING

5KM-2536E-10-00

$8.38

18

O-RING(47X)

93210-27666-00

$5.53

19

NUT

90179-24003-00

$13.06

20

CAP, WHEEL

2P5-F512A-00-00

$4.58

21

REAR KNUCKLE ASSY RH

5B4-F532F-00-00

$299.53

22

BEARING

93306-206Y2-00

$60.74

23

OIL SEAL

93106-42800-00

$7.95

24

COLLAR

90387-30008-00

$20.02

25

. NIPPLE, GREASE

5B4-R169A-00-00

Unavailable

26

BUSH, SOLID(2NL)

90381-17067-00

$12.49

27

OIL SEAL

93106-38800-00

$11.78

28

PROTECTOR, DISK BRAKE

5B4-F5718-10-00

Unavailable

29

SCREW, ROUND HEAD(55K)

90150-06021-00

$6.46

30

SPACER

5KM-23448-00-00

$15.04

31

COVER, THRUST 1

5UG-23517-10-00

$20.18

32

BOLT, FLANGE

90105-10277-00

$5.86

33

NUT, SELF-LOCKING

90185-10012-00

$2.98

34

WASHER, PLATE

90201-10035-00

$3.56

35

SPACER ASSY

42S-F53W0-00-00

Unavailable

36

PLATE 1

5UG-2539F-00-00

$23.05

37

BOLT, FLANGE

90105-12062-00

$13.08

38

WASHER, PLATE

90201-14020-00

$5.19

39

NUT, SELF-LOCKING

90185-12007-00

$8.94
