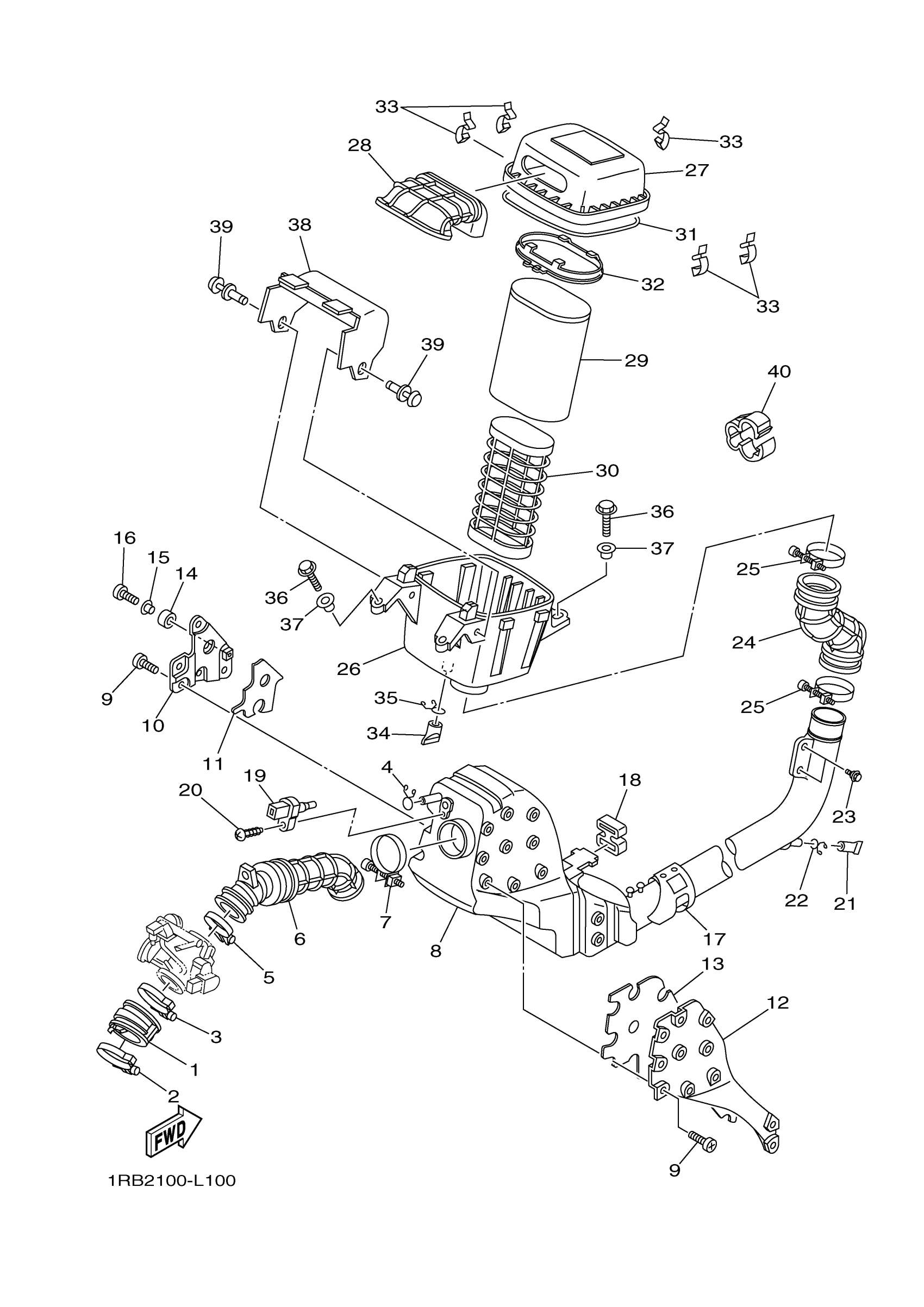

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5B4-13586-00-00

$37.21

2

HOSE CLAMP ASSY

90450-72004-00

$17.09

3

HOSE CLAMP ASSY

90450-72004-00

$17.09

4

CLIP

90467-150A2-00

$6.25

5

HOSE CLAMP ASSY

90450-62006-00

$10.77

6

JOINT, AIR CLEANER 1

5B4-E4453-00-00

Unavailable

7

BAND

5B4-E4455-00-00

$8.05

8

DUCT

5B4-E443A-00-00

Unavailable

9

SCREW, PAN HEAD

5B4-E4325-00-00

Unavailable

10

PLATE 1

5B4-E4247-00-00

Unavailable

11

SPACER

5B4-E4163-00-00

Unavailable

12

PLATE 2

5B4-E4248-00-00

Unavailable

13

SPACER

5B4-E4442-00-00

Unavailable

14

DAMPER 2

5B4-E4426-00-00

Unavailable

15

COLLAR

5B4-E4449-00-00

Unavailable

16

SCREW

5B4-E4429-00-00

Unavailable

17

PROTECTOR

5B4-E442F-00-00

Unavailable

18

DAMPER

5B4-E4409-00-00

Unavailable

19

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$49.83

20

SCREW, PANHEAD TAPPING

97702-50520-00

$0.28

21

PIPE, DRAIN

5BF-1443E-00-00

$3.49

22

CLIP

90467-160A4-00

$6.25

23

BOLT

90109-06172-00

$2.71

24

JOINT

5B4-E4454-00-00

$24.00

25

BAND

5B4-E4455-00-00

$8.05

26

CASE, AIR CLEANER 1

5B4-E4411-00-00

$19.72

27

CAP, CLEANER CASE

5B4-E4412-00-00

$36.15

28

DUCT

5B4-E4437-00-00

$16.99

29

ELEMENT, AIR CLEAN

5B4-E4451-00-00

$28.02

30

PLATE, ELEMENT

5B4-E4472-00-00

$10.20

31

SEAL

5B4-E4457-00-00

$5.89

32

SEAL RING

42S-E41A1-00-00

$5.62

33

CLIP, CAP FITTING

3B4-14424-00-00

$6.72

34

SEAL

59V-14457-00-00

$5.65

35

CLIP

90467-220A1-00

$5.14

36

BOLT, FLANGE

90105-06833-00

$1.77

37

COLLAR

90387-08073-00

$7.94

38

COVER 2

5B4-E246E-00-00

$6.20

39

RIVET

5UG-F3483-00-00

$3.80

40

CLAMP(4GL)

90464-10233-00

$6.37
