Description

Price

1

FRT. UPPER ARM (L)

5UG-F3540-01-00

$153.91

2

BALL JOINT 1

37S-23549-01-00

$67.35

3

CIRCLIP

93410-32075-00

$6.97

4

FRT. UPPER ARM (R)

5UG-F3550-01-00

Unavailable

5

BALL JOINT 1

37S-23549-01-00

$67.35

6

CIRCLIP

93410-32075-00

$6.97

7

ARM,FR. LWR. LH.

5UG-F357A-00-00

Unavailable

8

ARM,FR. LWR. RH.

5UG-F358A-00-00

Unavailable

9

BUSH

5KM-23526-00-00

$17.05

10

BOLT, FLANGE

90105-10267-00

$7.74

11

NUT, SELF-LOCKING

90185-10012-00

$2.98

12

WASHER

5KM-22149-10-00

$6.38

13

NUT, CASTLE

90171-12001-00

$2.85

14

PIN, COTTER

91490-25020-00

$2.94

15

SHOCK ABSORBER ASS

5B4-F3350-00-00

$337.05

16

NUT, SELF-LOCKING

90185-10012-00

$2.98

17

BOLT, FLANGE

90105-10841-00

$1.88

18

COVER, LOWER 1

5B4-F3123-00-00

$18.75

19

NUT, SPRING(4ES)

90183-06069-00

$5.93

20

BOLT, FLANGE

95817-06012-00

$1.49

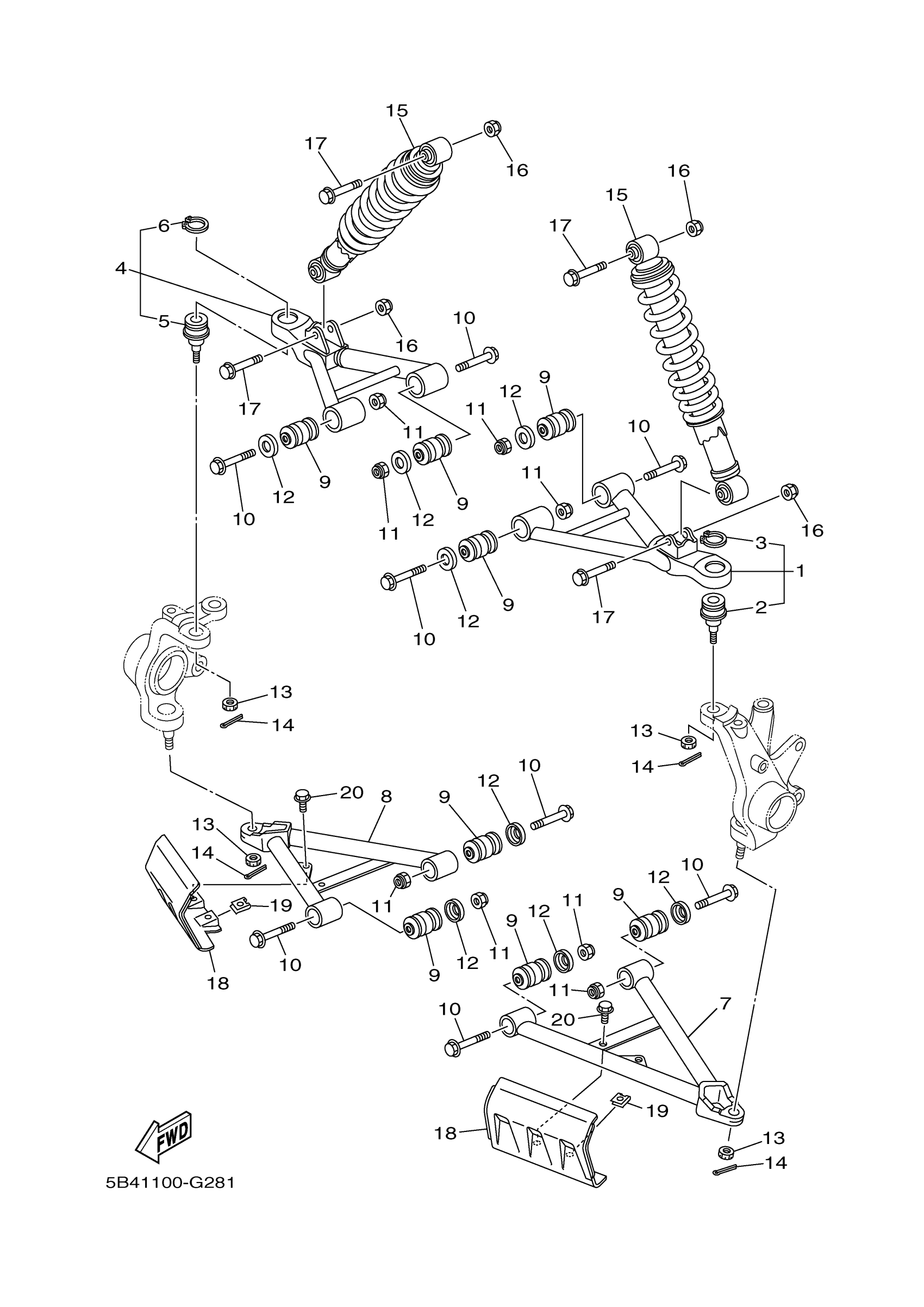

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 FRONT SUSPENSION WHEEL Diagram
