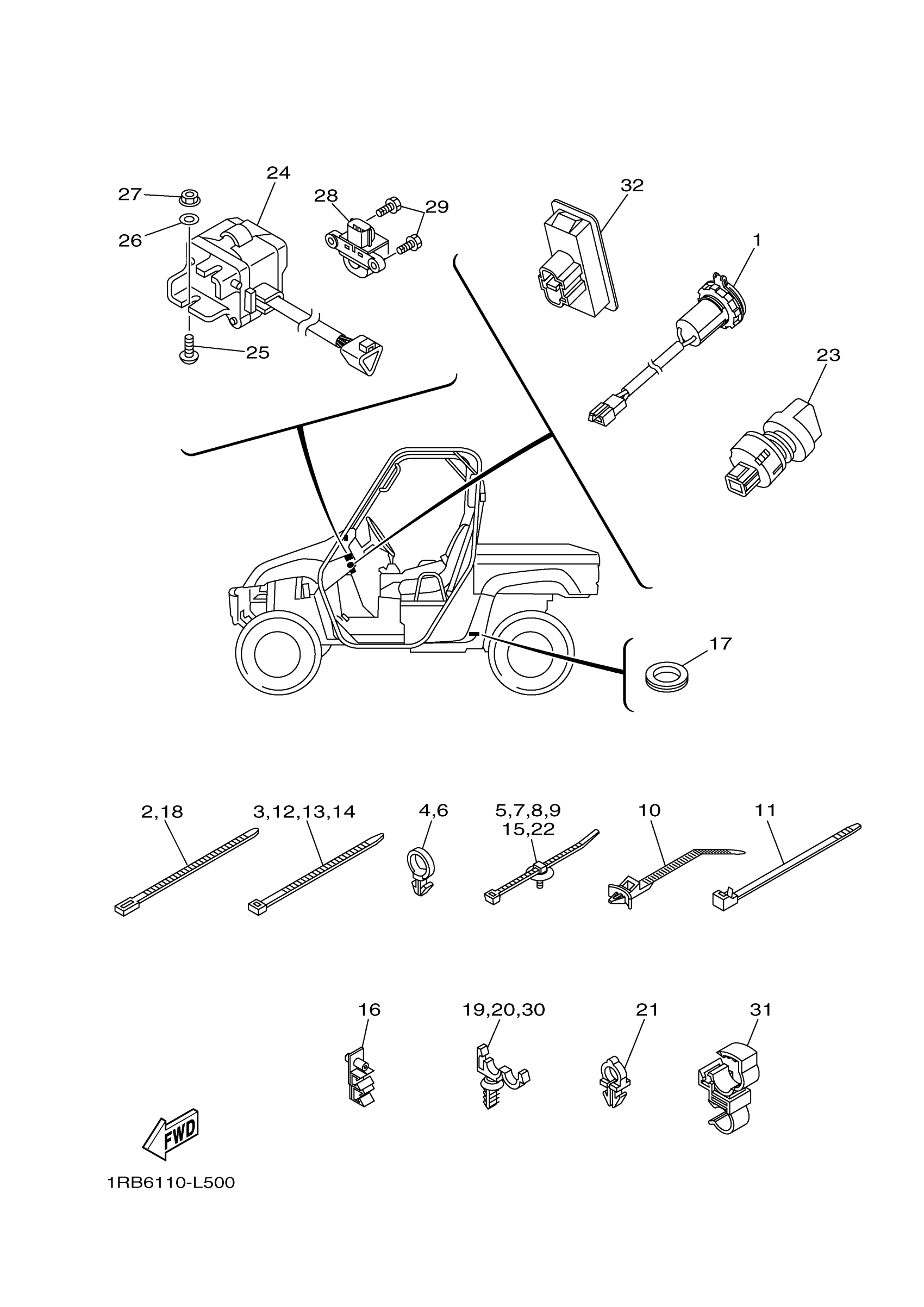

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

TERMINAL COMP.

1HP-H254B-10-00

$15.91

2

CLAMP(JN6)

90464-40825-00

$1.77

3

CLAMP

90464-48800-00

$3.54

4

CLAMP

90464-19815-00

$1.60

5

CLAMP

5B4-F1338-00-00

$2.92

6

CLAMP

90464-19815-00

$1.60

7

CLAMP

5B4-F1338-00-00

$2.92

8

CLAMP

5B4-F1338-00-00

$2.92

9

CLAMP

5B4-F1338-00-00

$2.92

10

CLAMP

90464-38800-00

$4.28

11

CLAMP

90464-51800-00

$11.86

12

CLAMP

90464-48800-00

$3.54

13

CLAMP

90464-48800-00

$3.54

14

CLAMP

90464-48800-00

$3.54

15

CLAMP

5B4-F1338-00-00

$2.92

16

CLAMP

5UG-F481H-00-00

Unavailable

17

GROMMET

90480-25856-00

Unavailable

18

CLAMP(JN6)

90464-40825-00

$1.77

19

CLAMP

90464-12830-00

$1.02

20

CLAMP

90464-12830-00

$1.02

21

CLAMP

90464-12830-00

$1.02

22

CLAMP

5B4-F1338-00-00

$2.92

23

SWITCH, LAMP

5UG-H2526-00-00

$46.42

24

SWITCH, HANDLE 1

1RB-83976-02-00

Unavailable

25

SCREW(3YF)

90149-05299-00

$3.52

26

WASHER, PLATE

90201-05039-00

$5.19

27

NUT, NYLON

95707-05300-00

$2.74

28

LEAN ANGLE SENSOR

3B4-82576-00-00

$88.69

29

BOLT, SPECIAL

JW1-F3394-00-00

$0.85

30

CLAMP

90464-12830-00

$1.02

31

CLAMP

90464-12012-00

$3.00

32

PILOT LIGHT ASSY

5B4-H3530-00-00

Unavailable
