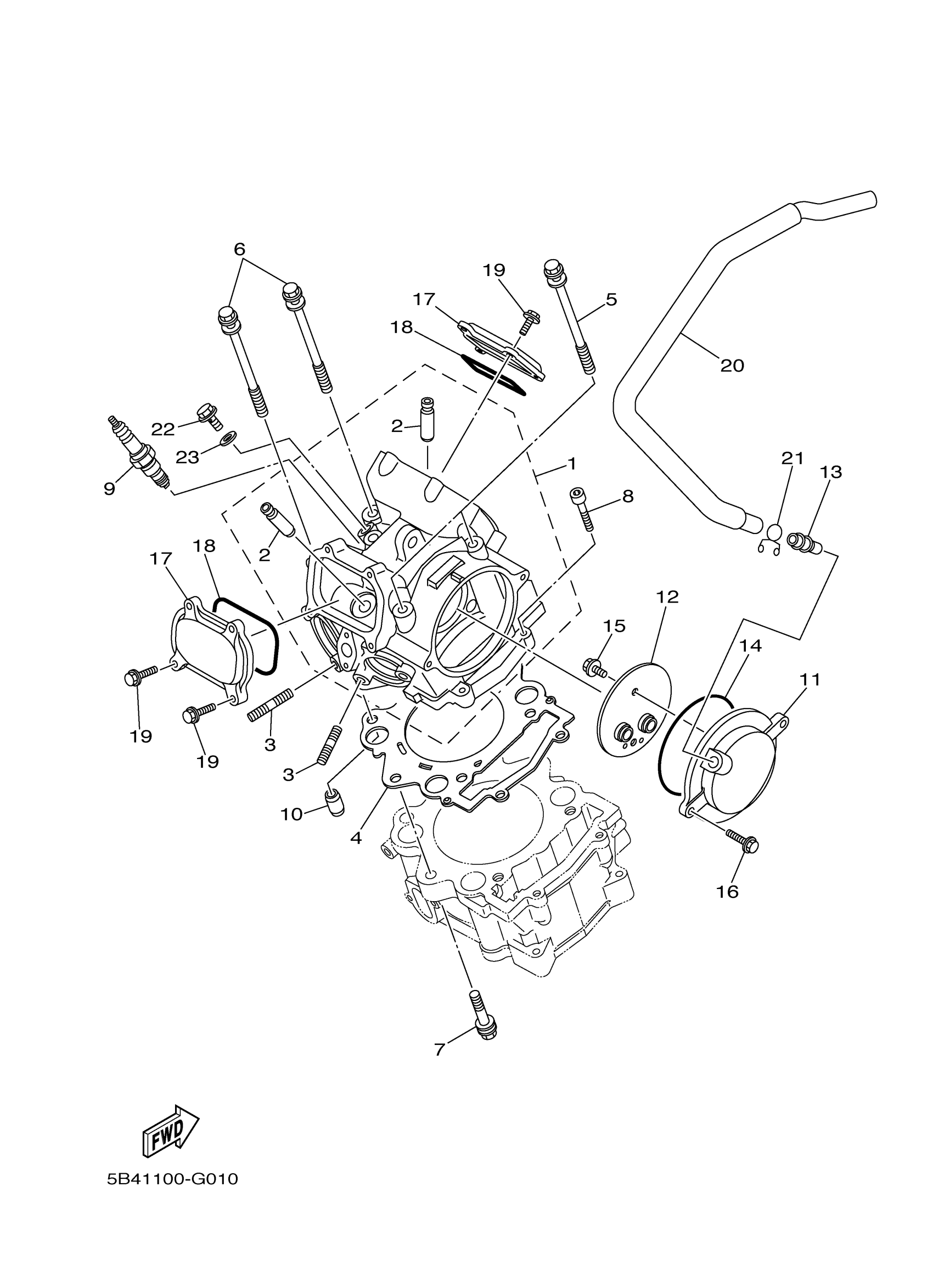

Yamaha YXR7FDR (700 1RBD) 1RBD0 2013 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5B4-11102-00-00

$903.99

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

3

BOLT, STUD

95612-08625-00

$7.49

4

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$53.99

5

BOLT

90109-09003-00

$10.49

6

BOLT

90109-09002-00

$10.49

7

BOLT

90109-09005-00

$8.49

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

9

PLUG, SPARK (NGK CPR7EA)

CPR-7EA90-00-00

Unavailable

10

PIN, DOWEL(4XL)

93612-16254-00

$5.60

11

COVER, CYLINDER HEAD SIDE 1

5B4-11185-00-00

Unavailable

12

PLATE, BREATHER

3B4-11165-00-00

$31.99

13

PIPE, BREATHER 2

371-11167-01-00

$13.49

14

O-RING (70R)

93210-96601-00

$12.49

15

BOLT, FLANGE

95022-06012-00

$3.29

16

BOLT, FLANGE

95022-06020-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

Unavailable

18

O-RING (14X)

93210-78544-00

Unavailable

19

BOLT, FLANGE

95022-06020-00

Unavailable

20

PIPE, BREATHER 1

5B4-11166-00-00

Unavailable

21

CLIP

90467-140A4-00

Unavailable

22

BOLT, UNION

90401-08004-00

Unavailable

23

GASKET

90430-08119-00

Unavailable
