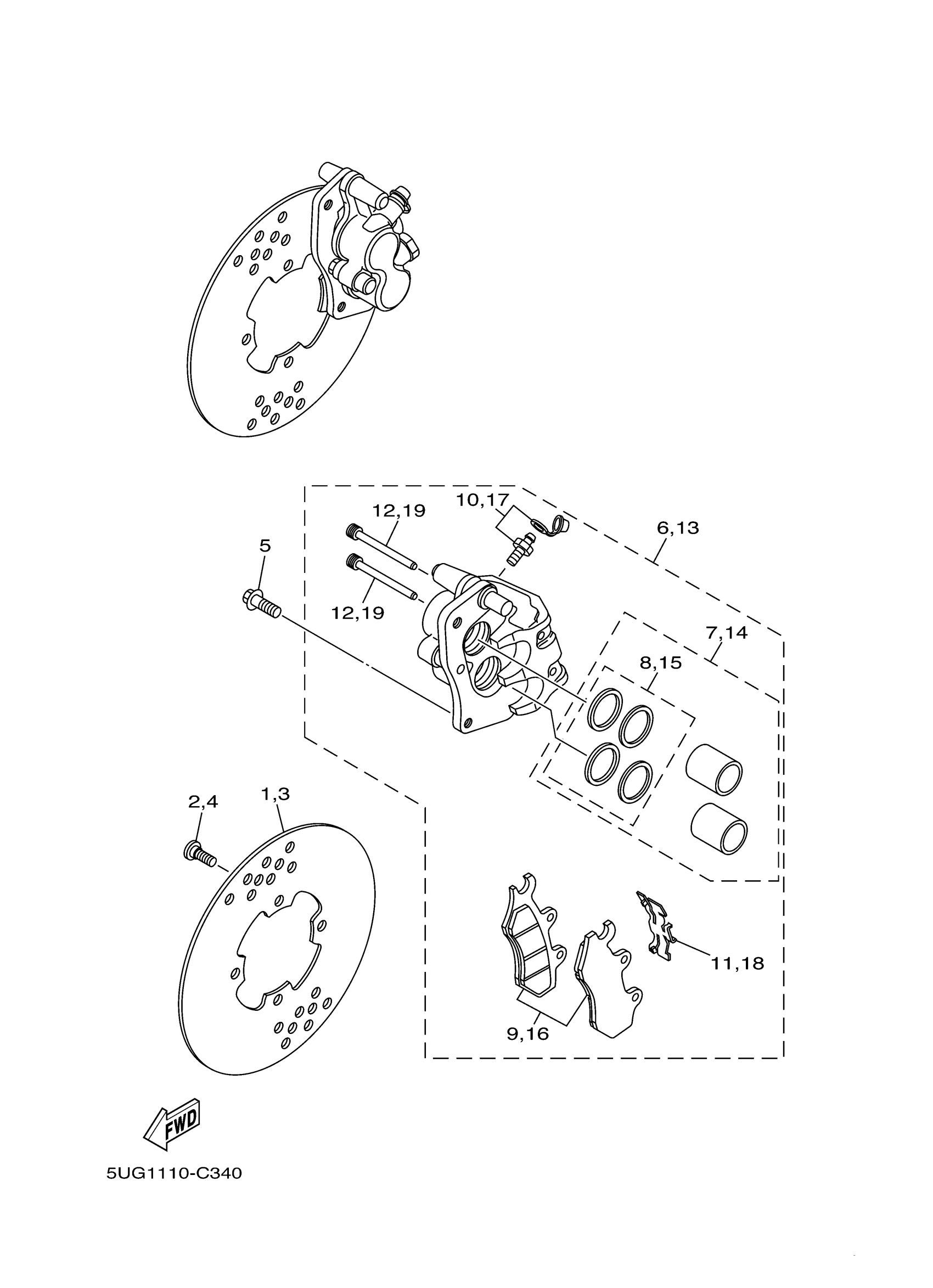

Yamaha YXR66FAVGR (RHINO 660 4WD) 5UG9 2006 FRONT BRAKE CALIPER Diagram

Description

Price

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$64.99

BOLT

90109-08087-00

$8.49

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$64.99

BOLT

90109-08087-00

$8.49

BOLT, FLANGE

90105-10082-00

$4.94

CALIPER ASSY (RIGHT)

5B4-2580U-01-00

$443.99

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

BRAKE PAD KIT

5B4-W0045-10-00

$47.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

SPRING, PAD

3LD-25934-01-00

$30.99

PIN, PAD

3FV-25924-00-00

$23.99

CALIPER ASSY (LEFT)

5B4-2580T-01-00
