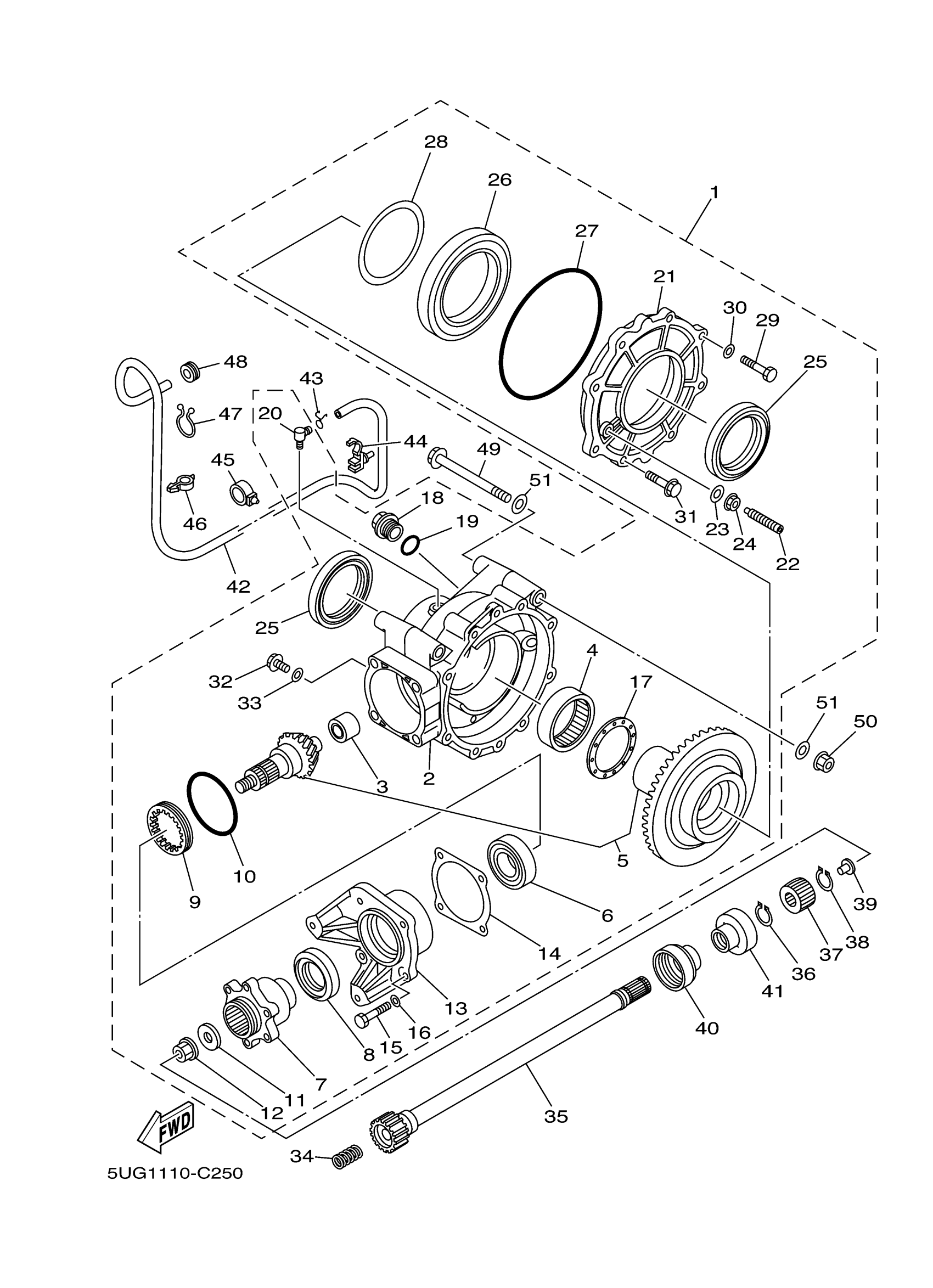

Yamaha YXR66FAVGR (RHINO 660 4WD) 5UG9 2006 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
5UG-46101-01-00
Unavailable
2
HOUSING, DRIVE SHAFT
5UG-46151-01-00
$241.99
3
BEARING ASSY
5KM-46102-00-00
$65.99
4
BEARING, CYLINDRICAL(3HN)
93317-85569-00
$86.99
5
RING GEAR SET
5UG-Y4612-00-00
$519.99
6
BEARING
93306-30574-00
$73.99
7
BOSS, 1
5UG-46212-00-00
$203.99
8
OIL SEAL
93102-35009-00
$22.99
9
NUT(59V)
90179-65305-00
$43.99
10
O-RING
93210-626A7-00
$14.99
11
WASHER (838)
90201-12191-00
$7.49
12
NUT (4X7)
90179-12325-00
$5.60
13
HOUSING, PINION BEARING
5UG-46144-00-00
$139.99
14
SHIM, DRIVE PISTON (0.3T)
2HR-46127-00-30
$15.49
14
SHIM, DRIVE PISTON (0.3T)
2HR-46127-00-30
$15.49
14
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
14
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
14
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
14
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
15
BOLT
97017-08035-00
Unavailable
16
WASHER(6TA)
92907-08600-00
Unavailable
17
WASHER, THRUST
24W-46118-00-12
Unavailable
17
WASHER, THRUST
24W-46118-00-14
Unavailable
17
WASHER, THRUST
24W-46118-00-16
Unavailable
17
WASHER, THRUST
24W-46118-00-18
Unavailable
17
WASHER, THRUST
24W-46118-00-20
Unavailable
18
PLUG, STRAIGHT SCREW(4GY)
90340-20143-00
Unavailable
19
O-RING (646)
93210-19123-00
Unavailable
20
BREATHER
5UG-15371-00-00
Unavailable
21
HOUSING, BEARING
5KM-46152-00-00
Unavailable
22
STOPPER, RING GEAR
2HR-46156-00-00
Unavailable
23
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
OIL SEAL
93102-65008-00
Unavailable
26
BEARING
93316-01701-00
Unavailable
27
O-RING(59V)
93211-54698-00
Unavailable
28
SHIM, RING GEAR
22U-46117-00-25
Unavailable
28
SHIM, RING GEAR
22U-46117-00-30
Unavailable
28
SHIM, RING GEAR
22U-46117-00-40
Unavailable
29
BOLT, HEXAGON
97017-08025-00
Unavailable
30
WASHER(6TA)
92907-08600-00
Unavailable
31
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
32
BOLT, SMALL FLANGE
95027-10016-00
Unavailable
33
GASKET (5R6)
90430-10171-00
Unavailable
34
SPRING, COMPRESSION
90501-200A0-00
Unavailable
35
SHAFT, DRIVE
5UG-G6172-00-00
Unavailable
36
CIRCLIP(1EY)
99009-19400-00
Unavailable
37
COUPLING
5KM-46126-00-00
Unavailable
38
CIRCLIP (537)
93410-22039-00
Unavailable
39
DAMPER
5KM-46559-00-00
Unavailable
40
SEAL 2
5KM-46137-00-00
Unavailable
41
SEAL 1
5KM-46136-00-00
Unavailable
42
HOSE (L1700)
90445-070G6-00
Unavailable
43
CLIP (1J7)
90467-07029-00
Unavailable
44
CLAMP
90464-12830-00
Unavailable
45
CLAMP
90464-19815-00
Unavailable
46
CLAMP
90464-12830-00
Unavailable
47
CLAMP
90464-20804-00
Unavailable
48
GROMMET(3GM)
90480-10517-00
Unavailable
49
BOLT, FLANGE
90105-10111-00
Unavailable
50
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
51
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
