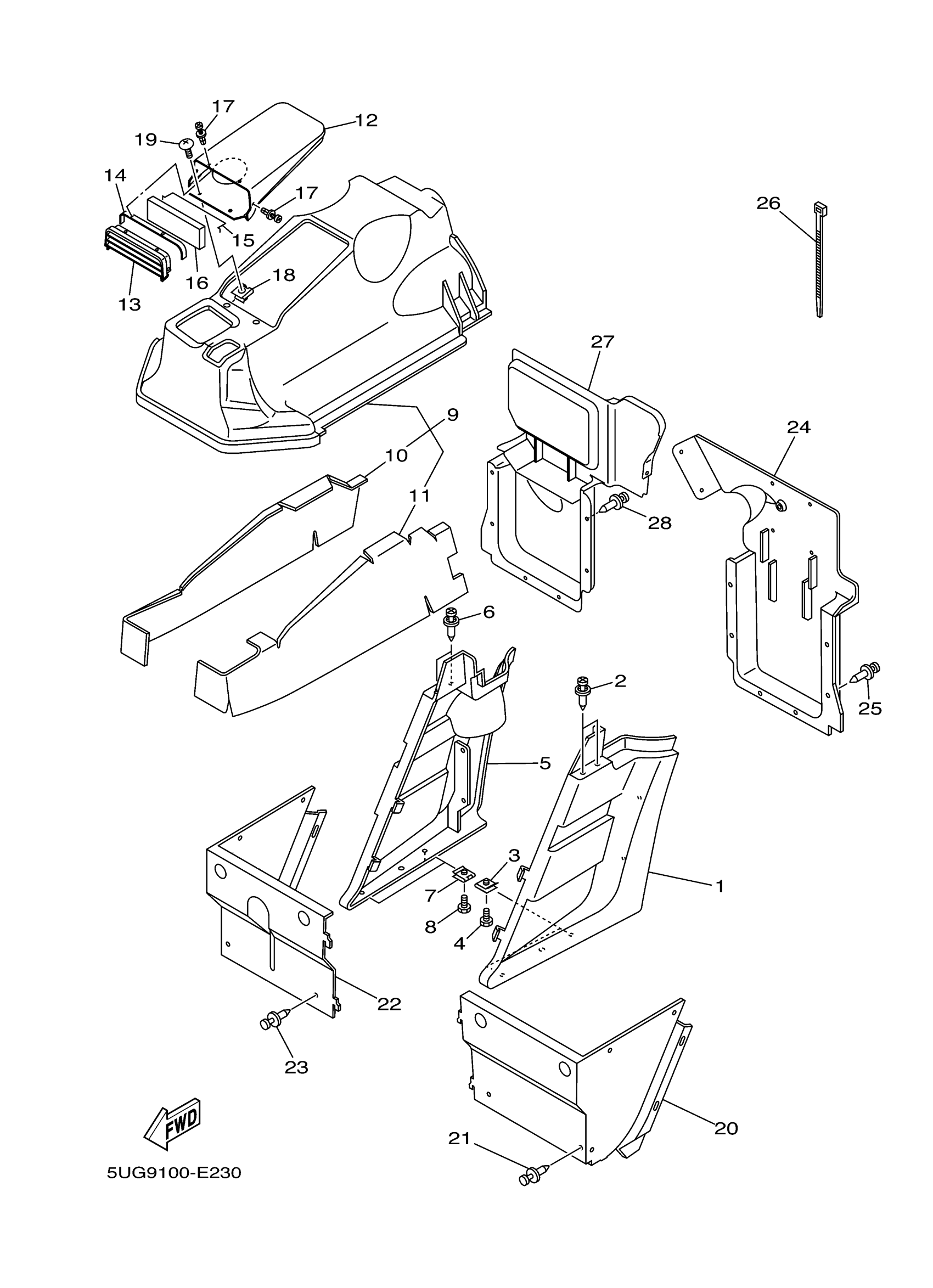

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 SIDE COVERS Diagram
#
Description
Price
1
SIDE PANEL COMP.1
5UG-K810F-01-00
Unavailable
2
RIVET
90269-06800-00
$2.18
3
NUT, SPRING
90183-05008-00
$9.49
4
BOLT, HEXAGON WITH WASHER(353)
90119-05001-00
$8.49
5
SIDE PANEL COMP.2
5UG-K810G-01-00
Unavailable
6
RIVET
90269-06800-00
$2.18
7
NUT, SPRING
90183-05008-00
$9.49
8
BOLT, HEXAGON WITH WASHER(353)
90119-05001-00
$8.49
9
COVER ASSY
2P5-F8108-00-00
Unavailable
10
. SEAL 1
5UG-F2873-10-00
Unavailable
11
. SEAL 3
5UG-F2875-10-00
Unavailable
12
BOX
5UG-2177A-00-00
$76.99
13
COVER 2
5UG-28229-00-00
$43.99
14
SEAL
5UG-14457-00-00
$4.58
15
HOLDER, WIRE
5UG-14415-00-00
Unavailable
16
SEAL
5UG-14476-00-00
Unavailable
17
RIVET
90269-05001-00
Unavailable
18
NUT, SPRING
90183-05008-00
$9.49
19
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
20
SUPPORT, SIDE PANEL
5UG-F254J-00-00
Unavailable
21
RIVET
90269-06800-00
$2.18
22
SUPPORT, SIDE PANEL 2
5UG-F254K-00-00
Unavailable
23
RIVET
90269-06800-00
$2.18
24
PROTECTOR, SIDE 1
5UG-K7561-02-00
Unavailable
25
RIVET
90269-06800-00
$2.18
26
CLAMP
90464-48800-00
Unavailable
27
PROTECTOR, FUEL TA
5UG-F4141-01-00
Unavailable
28
RIVET
90269-06800-00
$2.18
