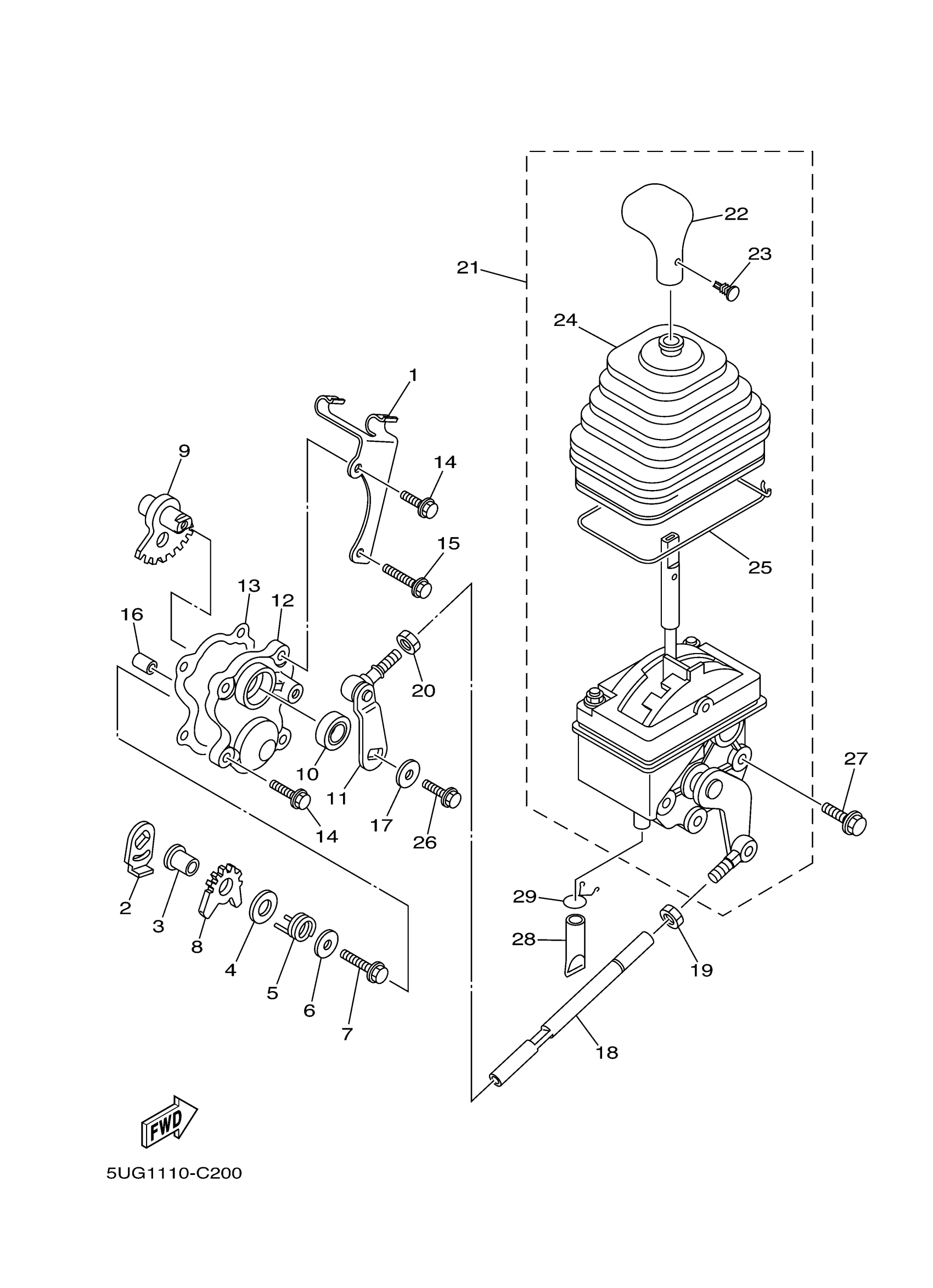

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 SHIFT SHAFT Diagram
#
Description
Price
1
GUIDE, OIL HOSE
5UG-13487-00-00
Unavailable
2
LEVER
4SH-18198-00-00
$22.99
3
COLLAR
90387-0613B-00
$9.49
4
WASHER, PLATE
90201-13013-00
$8.49
5
SPRING, TORSION(1YW)
90508-35764-00
$5.60
6
WASHER, PLATE
90201-06M02-00
Unavailable
7
BOLT, FLANGE
95817-06035-00
$7.49
8
LEVER
5KM-18191-00-00
$24.99
9
SHAFT
5KM-18197-00-00
$80.99
10
OIL SEAL (3X3)
93102-15212-00
$9.49
11
SHIFT GUIDE COMP.
5UG-18104-00-00
$56.99
12
COVER, SHIFT SHAFT
5KM-18129-01-00
Unavailable
13
GASKET, LEVER STOP
5KM-18146-00-00
$14.49
14
. BOLT, FLANGE
95027-06020-00
Unavailable
15
BOLT, SMALL FLANGE
95027-06030-00
$3.98
16
PIN, DOWEL
99530-08012-00
Unavailable
17
WASHER, PLATE
90201-06M02-00
Unavailable
18
ROD, SHIFT
5UG-18115-00-00
Unavailable
19
NUT(1KT)
90170-08358-00
Unavailable
20
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
21
SHIFTER ASSY
5UG-18300-12-00
Unavailable
22
KNOB, SHIFT LEVER
5UG-18174-00-00
Unavailable
23
RIVET(81E)
90269-05055-00
Unavailable
24
BOOTS, SEALING
5GH-18131-00-00
Unavailable
25
STOPPER, RUBBER
5GH-18617-00-00
Unavailable
26
BOLT, FLANGE
95817-06016-00
Unavailable
27
BOLT, FLANGE
95817-08012-00
Unavailable
28
PIPE, DRAIN
4GY-1443E-00-00
Unavailable
29
CLIP (806-24358-00)
90467-15012-00
Unavailable
