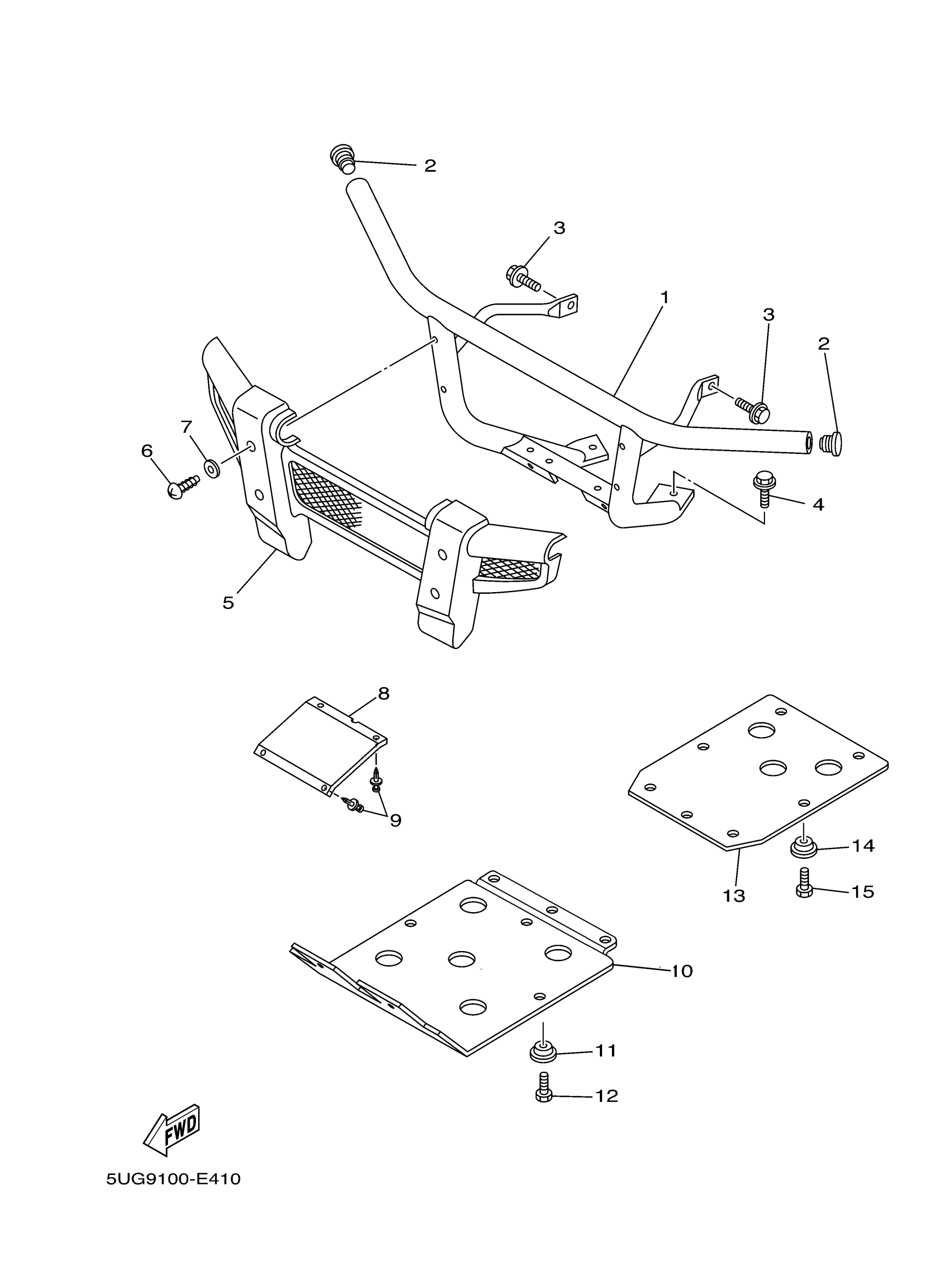

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT, WRINKLE BLK

1RB-F845N-00-00

Unavailable

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$6.99

3

BOLT, FLANGE

95817-10020-00

$8.49

4

BOLT, FLANGE

9581P-12025-00

Unavailable

5

COVER 5

5UG-F842A-00-00

$53.99

6

BOLT, FLANGE

95817-06016-00

$2.75

7

WASHER, PLATE

90201-06055-00

Unavailable

8

COVER, COOLER

5UG-F835L-00-00

Unavailable

9

RIVET

90269-06800-00

$2.18

10

COVER,LOWER

2P5-F8385-01-00

$80.99

11

SPACER

5UG-F8329-01-00

$7.49

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

13

COVER,UNDER 2

5UG-F8395-01-00

Unavailable

14

SPACER

5UG-F8329-01-00

$7.49

15

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13
