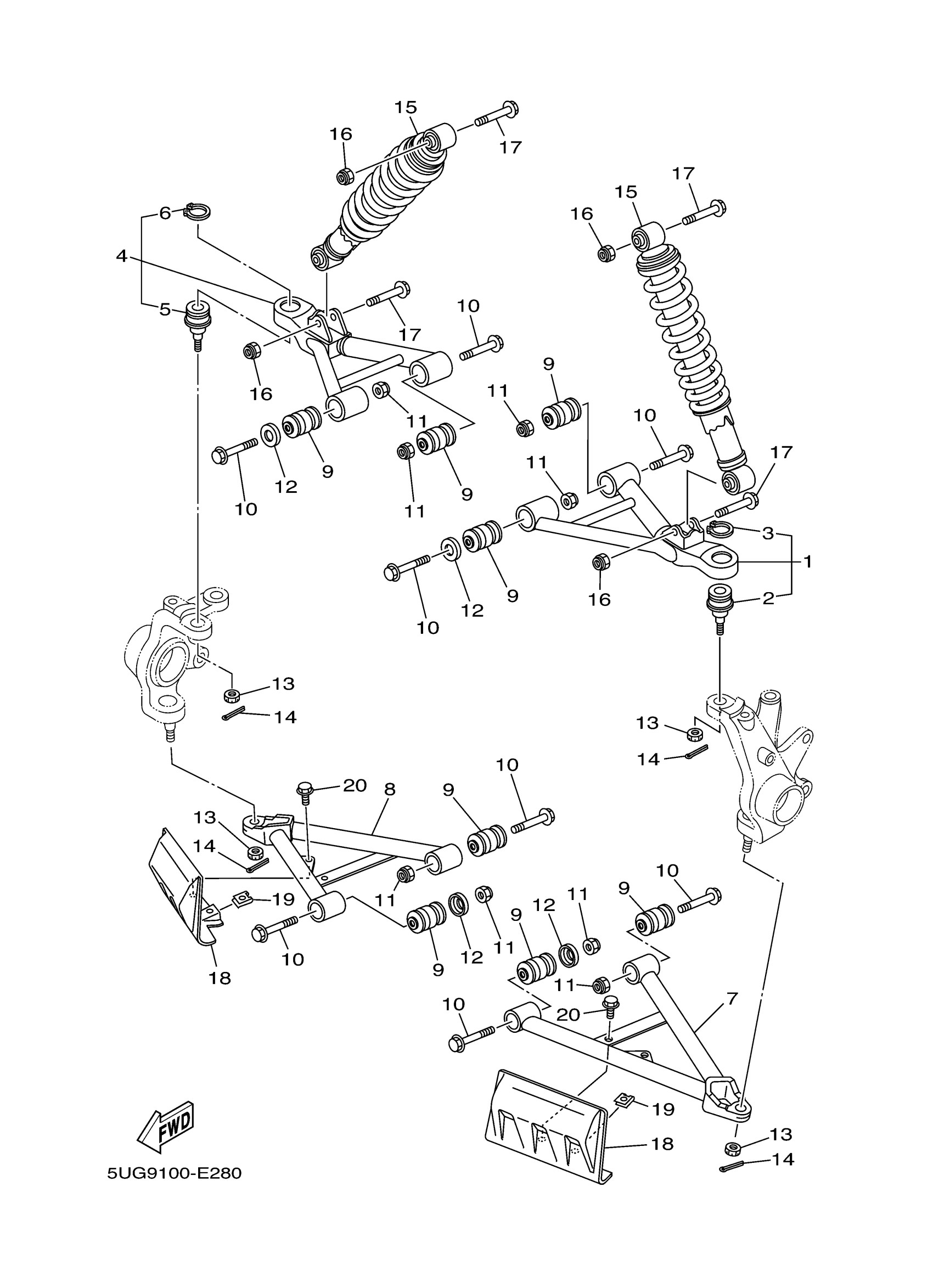

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 FRONT SUSPENSION WHEEL Diagram

FRT. UPPER ARM (L)

5UG-F3540-01-00

$187.99

BALL JOINT 1

37S-23549-01-00

$76.99

CIRCLIP

93410-32075-00

$9.49

FRT. UPPER ARM (R)

5UG-F3550-01-00

Unavailable

BALL JOINT 1

37S-23549-01-00

$76.99

CIRCLIP

93410-32075-00

$9.49

ARM,FR. LWR. LH.

5UG-F357A-00-00

$121.99

ARM,FR. LWR. RH.

5UG-F358A-00-00

Unavailable

BUSH

5KM-23526-00-00

$19.99

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

WASHER

5KM-22149-00-00

$7.99

NUT, CASTLE(36R)

90171-12039-00

$9.49

PIN, COTTER

91490-25020-00

$3.19

SHOCK ASSY (BLACK SPRING)

5UG-F3350-01-00

Unavailable

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

BOLT, FLANGE

90105-10841-00

Unavailable

COVER, UNDER 1

5UG-F3123-00-00

Unavailable

NUT, SPRING(4ES)

90183-06069-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable
