- YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006
CRANKCASE COVER 1

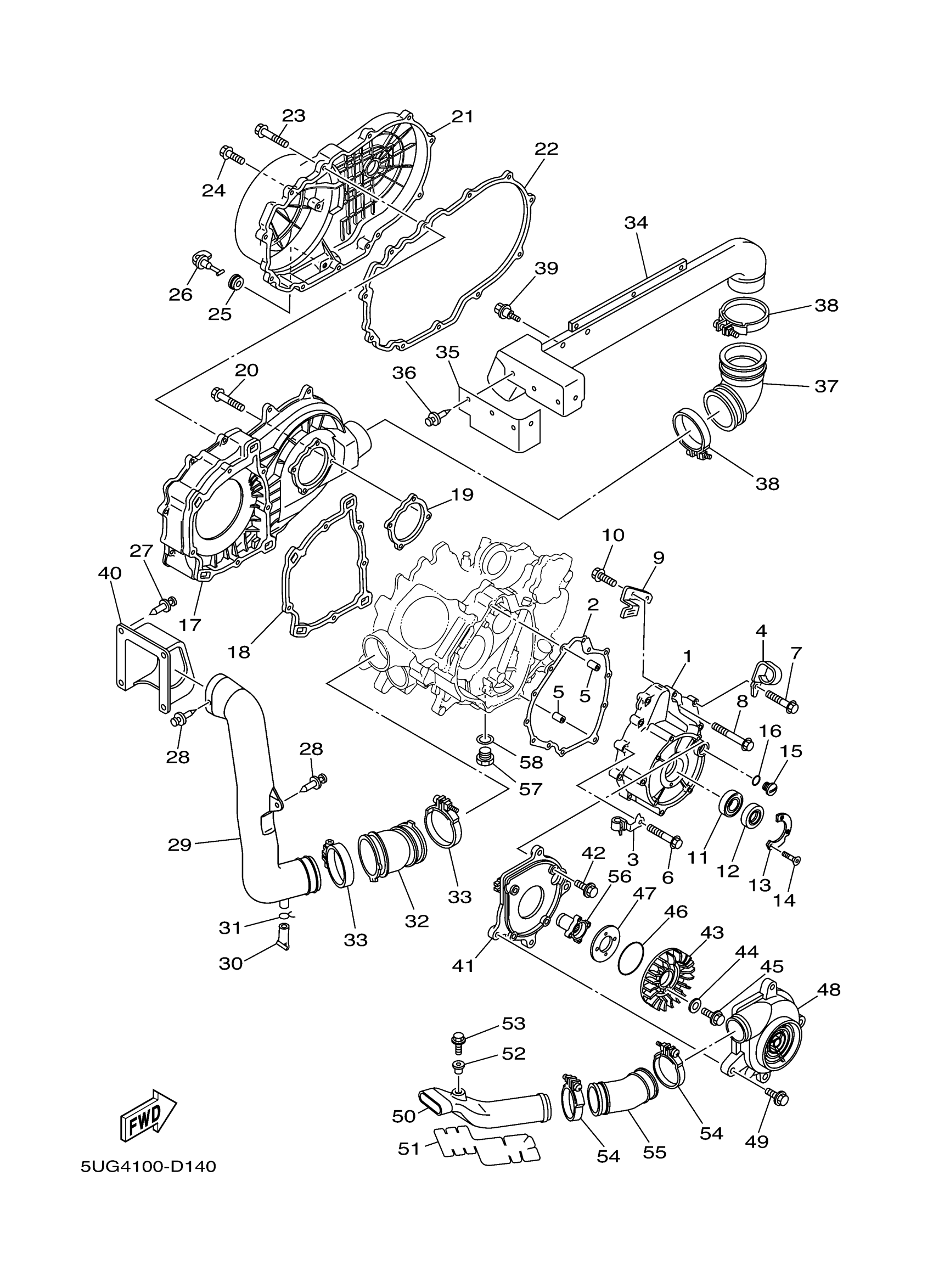

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
5KM-15411-10-00
Unavailable
2
GASKET, CRANKCASE COVER 1
5KM-15451-00-00
$25.99
3
CLAMP(7MX)
90465-08361-00
$8.49
4
. CLAMP
90462-08021-00
Unavailable
5
PIN, DOWEL(2VG)
99530-10116-00
$4.25
6
BOLT, SMALL FLANGE
95027-06030-00
$3.98
7
BOLT, SMALL FLANGE
95027-06030-00
$3.98
8
BOLT, SMALL FLANGE
95027-06040-00
$3.28
9
PLATE
5KM-15113-00-00
Unavailable
10
BOLT, FLANGE(4DU)
95027-06014-00
$8.49
11
BEARING(55X)
93306-07801-00
$55.99
12
OIL SEAL
93102-28476-00
$22.99
13
WASHER, THRUST
21V-15719-00-00
Unavailable
14
SCREW, COUNTERSUNK (21V)
90151-05023-00
$9.49
15
PLUG, STRAIGHT SCREW(2HT)
90340-14117-00
$14.99
16
O-RING (2H9)
93210-14369-00
Unavailable
17
COVER, CRANKCASE 2
5KM-15421-00-00
Unavailable
18
CLUTCH COVER GASKET
5KM-15453-00-00
Unavailable
19
SEAL, CRANKCASE
5KM-15315-00-00
Unavailable
20
BOLT, FLANGE
95817-06030-00
Unavailable
21
COVER, CRANKCASE 3
5KM-15431-00-00
Unavailable
22
SEAL, CRANKCASE
5KM-15379-01-00
Unavailable
23
BOLT, FLANGE
95817-06025-00
Unavailable
24
BOLT, FLANGE
95817-06016-00
Unavailable
25
GROMMET (462)
90480-13018-00
Unavailable
26
PLUG, DRAIN
5KM-15351-00-00
Unavailable
27
RIVET
90269-06800-00
Unavailable
28
RIVET
90269-06800-00
Unavailable
29
DUCT, AIR
5UG-E5471-10-00
Unavailable
30
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
31
CLIP(62Y)
90467-15M14-00
Unavailable
32
SEAL, AIR DUCT
5KM-15472-01-00
Unavailable
33
HOSE CLAMP ASSY
90450-81001-00
Unavailable
34
DUCT, AIR
5UG-E5473-00-00
Unavailable
35
PROTECTOR, COVER
5UG-E5499-00-00
Unavailable
36
RIVET
90269-06800-00
Unavailable
37
SEAL, AIR DUCT
5KM-15474-00-00
Unavailable
38
HOSE CLAMP ASSY
90450-85002-00
Unavailable
39
BOLT(3KJ)
90109-063F1-00
Unavailable
40
COVER
5UG-F172W-00-00
Unavailable
41
AIR SHROUD, CYLINDER 3
5UG-12653-00-00
Unavailable
42
BOLT, FLANGE
95817-06020-00
Unavailable
43
FAN
52W-12611-02-00
Unavailable
44
WASHER(6TA)
92907-06200-00
Unavailable
45
BOLT, FLANGE
95817-06020-00
Unavailable
46
O-RING
93210-64488-00
Unavailable
47
PLATE
5UG-12681-00-00
Unavailable
48
AIR SHROUD, CYLINDER 1
5UG-12651-00-00
Unavailable
49
BOLT, FLANGE
95817-06020-00
Unavailable
50
DUCT, 1
5UG-E2691-00-00
Unavailable
51
SEAL 1
5UG-F1575-00-00
Unavailable
52
NUT(1WT)
90179-06520-00
Unavailable
53
BOLT, FLANGE
95817-06020-00
Unavailable
54
HOSE CLAMP ASSY
90450-64004-00
Unavailable
55
JOINT 1
5UG-E2695-00-00
Unavailable
56
BOSS, STARTER PULLEY
5UG-15777-00-00
Unavailable
57
PLUG, (663)
90340-14036-00
Unavailable
58
GASKET 256131670000
90430-14043-00
Unavailable
