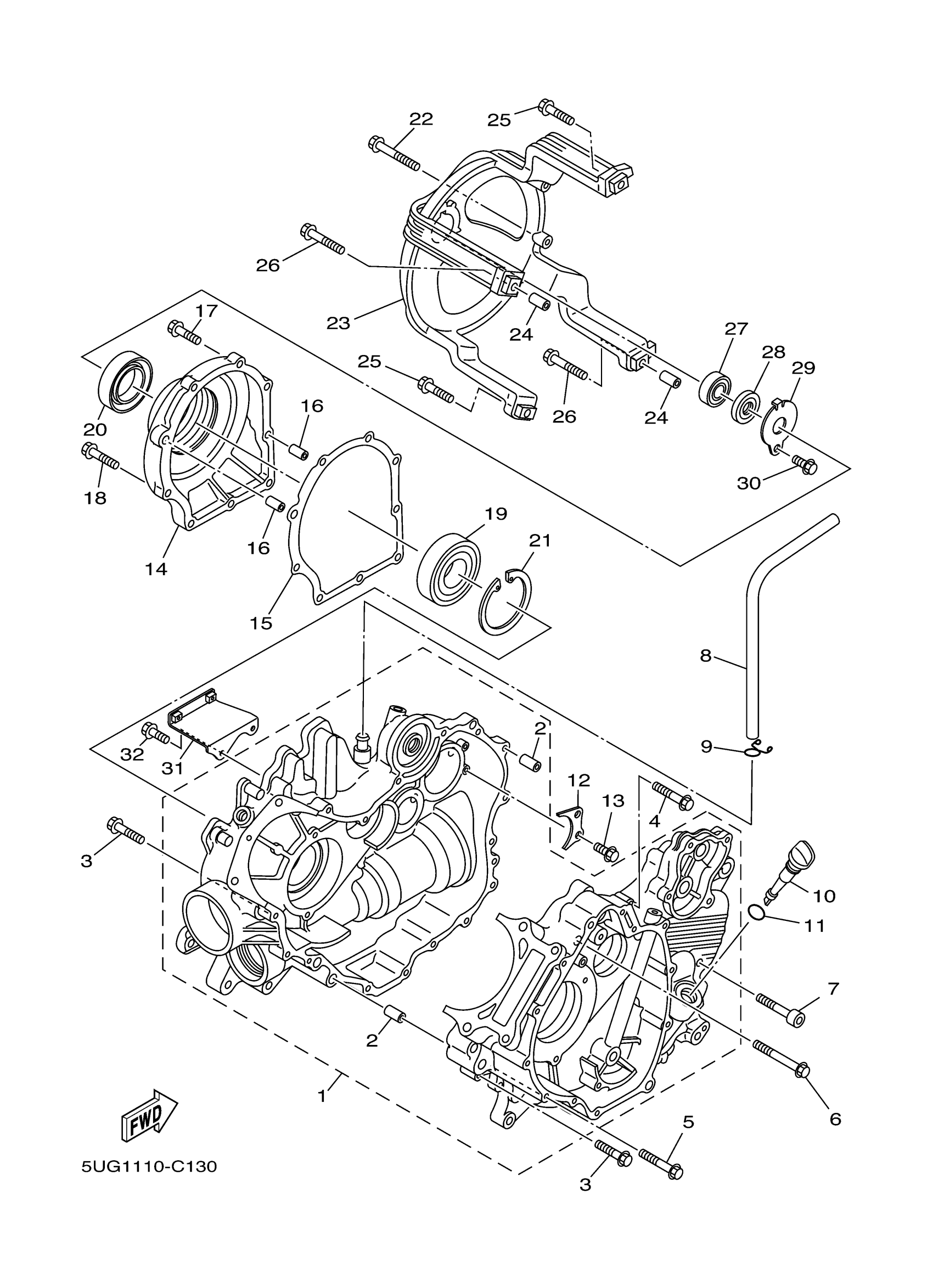

Yamaha YXR66FAHV (RHINO 660 4WD HUNTER) 5UGF 2006 CRANKCASE Diagram
#
1
CRANKCASE ASSY
5KM-15100-12-00
$1,571.99
2
PIN, DOWEL(2VG)
99530-10116-00
$4.25
3
BOLT, SMALL FLANGE
95027-06030-00
$3.98
4
BOLT, SMALL FLANGE
95027-06030-00
$3.98
5
BOLT, SMALL FLANGE
95027-06040-00
$3.28
6
BOLT, SMALL FLANGE
95027-06055-00
Unavailable
7
BOLT,SOCKET
91317-08040-00
$7.49
8
PIPE, BREATHER 1
5UG-11166-00-00
Unavailable
9
CLIP (371)
90467-14015-00
$8.49
10
PLUG, OIL LEVEL
5UG-15362-00-00
Unavailable
11
O-RING (603)
93210-19026-00
$8.49
12
PLATE, BEARING COVER
4WV-15388-00-00
Unavailable
13
BOLT, FLANGE(4DU)
95027-06014-00
$8.49
14
HOUSING, BEARING 1
5KM-15163-00-00
$115.99
15
GASKET, BEARING HOUSING 2
5KM-15463-00-00
$16.49
16
PIN, DOWEL(2VG)
99530-10116-00
$4.25
17
BOLT, SMALL FLANGE
95027-06030-00
$3.98
18
BOLT, SMALL FLANGE
95027-06040-00
$3.28
19
BEARING
93316-01003-00
Unavailable
20
OIL SEAL
93102-35004-00
Unavailable
21
CIRCLIP (70R)
93420-80066-00
Unavailable
22
BOLT, FLANGE(7FK)
95827-06050-00
Unavailable
23
HOUSING, BEARING
5KM-15442-00-00
Unavailable
24
PIN, DOWEL(2VG)
99530-10116-00
$4.25
25
BOLT, FLANGE
95817-06030-00
Unavailable
26
BOLT, FLANGE
95817-06040-00
Unavailable
27
BEARING(82M)
93306-20117-00
Unavailable
28
OIL SEAL
93101-12168-00
Unavailable
29
PLATE, BEARING COVER
4WV-15381-00-00
Unavailable
30
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
31
BRACKET
5UG-15199-00-00
Unavailable
32
BOLT, FLANGE
95817-06016-00
Unavailable
